Kenmore 970-3356 Series Use & Care Manual

Kenmore 970-3356 Series Use & Care Manual

Gas range
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

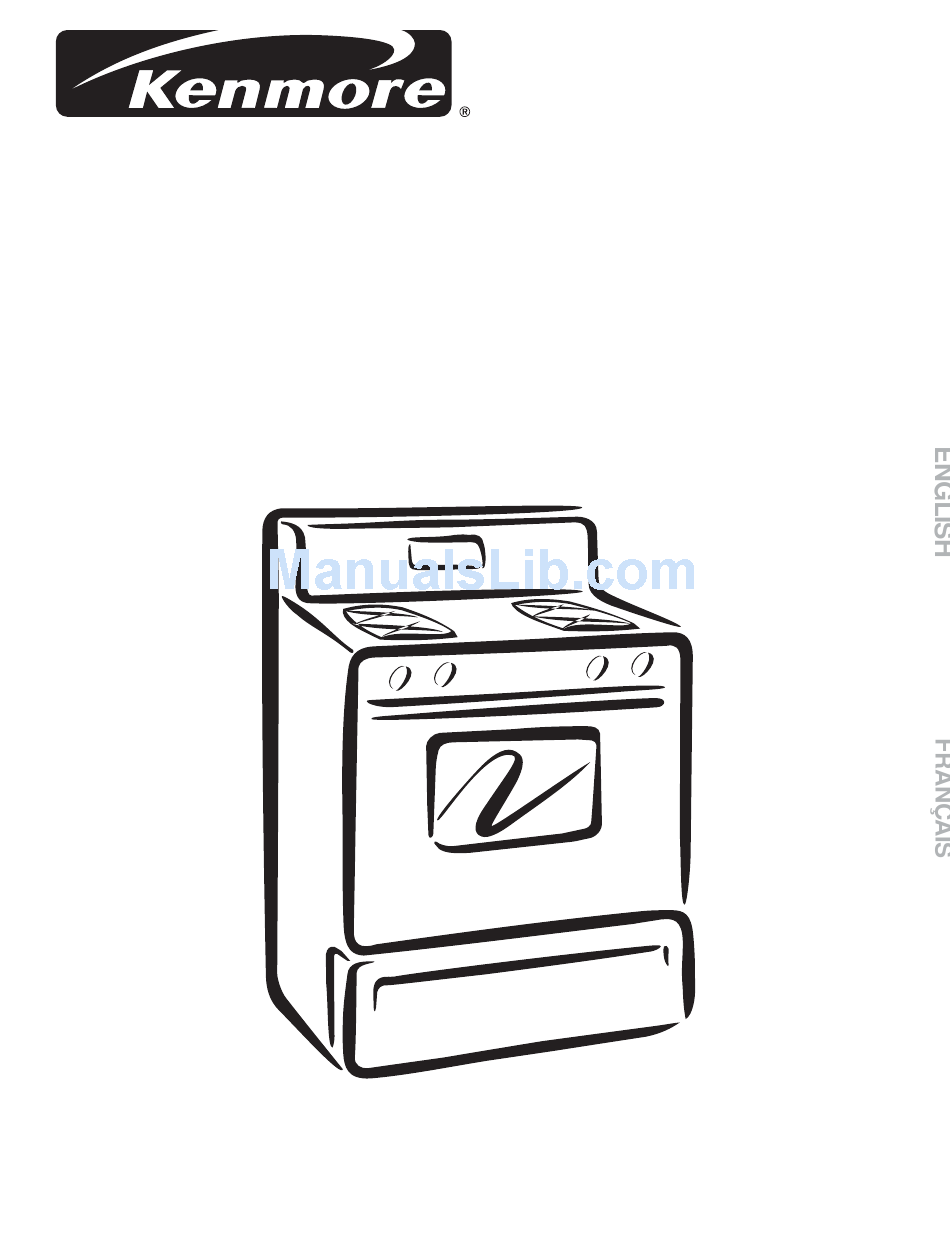

Gas Range
Use & Care Guide
Cuisinière à gaz
Guide d'utilisation et d'entretien
Models, Modèles 970-3356*
Sears Canada Inc., Toronto,
Ontario, Canada, M5B 2B8
Visit our webpage at: www.sears.ca
* = color number, numéro de couleur
p/n 316462428 (0608)

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 970-3356 Series

Summary of Contents for Kenmore 970-3356 Series

  • Page 1 Gas Range Use & Care Guide Cuisinière à gaz Guide d’utilisation et d’entretien Models, Modèles 970-3356* * = color number, numéro de couleur Sears Canada Inc., Toronto, Ontario, Canada, M5B 2B8 Visit our webpage at: www.sears.ca p/n 316462428 (0608)

  • Page 2: Table Of Contents

    Table of Contents Product Record Free-Standing Range Warranty ........... 2 Product Record ..............2 In the space provided below record the date of purchase, IMPORTANT SAFETY INSTRUCTIONS ......3-4 model & serial number of your product. You will find the Protection Agreements ............

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
  • Page 4 Important Safety Instructions During and after use, do not touch, or let clothing or other • Placement of Oven Racks. Always place oven racks in flammable materials touch these areas until they have had desired location while oven is cool. If rack must be moved sufficient time to cool.

  • Page 5: Protection Agreements

    PROTECTION AGREEMENTS CONTRATS DE PROTECTION In Canada Au Canada Contrats d'entretien Maintenance Agreements Votre achat a une valeur supplémentaire parce que vous Your purchase has added value because you can depend on ® ® pouvez compter sur le HomeCentral de Sears pour un Sears Home Central for service.

  • Page 6: Range Features

    Range Features Your Gas Range Features Include: 1. Electronic Oven Control with Kitchen Timer. 2. Left Front Burner Valve & Knob. 3. Left Rear Burner Valve & Knob. 4. Center Burner Valve & Knob (some models). 5. Right Rear Burner Valve & Knob. 6.

  • Page 7: Before Setting Oven Controls

    Before Setting Oven Controls Oven Vent Location The oven vent is located below the backguard (See Fig. 1). When the oven is on, warm air is released through this vent. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT BLOCK THE VENT.

  • Page 8: Setting Surface Controls

    Setting Surface Controls Operating the Gas Surface Burners: If the Cooktop Lockout indicator light is ON, unlock the cooktop (some models). If your model does not have this feature or if the cooktop is unlocked proceed to step 2. Place cooking utensil on gas surface burner. Push the surface control knob in &...

  • Page 9: Oven Control Functions

    Oven Control Functions READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. CLOCK SET COOK TIME FEATURE UP and DOWN ARROW PADS— ADD 1 MINUTE —...
  • Page 10 Setting Oven Controls (cont’d) To Set the Minute Timer , the temperature can then be adjusted Note: To turn the time of day display OFF or ON in the in 5°F increments (1°C if the control is set to display display press and hold for 15 seconds (the control will Celsius).
  • Page 11 Setting Oven Controls (cont’d) To set Control for Oven Lockout feature: 6. Press the until the desired baking time appears. 1. Press and hold for 3 seconds. “Loc” will appear in display, the “Door Locked” indicator light will flash and 7.
  • Page 12 Setting Oven Controls (cont’d) 5. Place the insert on the broil pan, then place the food on To Set Add 1 Minute Feature the insert (See Fig. 1; some models). DO NOT use the ADD 1 MINUTE pad is used to set additional broil pan without the insert or cover the insert with aluminum foil.
  • Page 13 Setting Oven Controls (cont’d) Using the Slow Cook Feature feature with a high setting (HI will appear in the display). This setting is best for cooking foods from a 4 to 5 hour SLOW COOK pad is used to activate this feature. time period.

  • Page 14: Setting Oven Controls

    Setting Oven Controls (cont’d) Setting the Warm & Hold™ Feature 3. Press . " — — — ° " appears in the display. pad turns ON the Serve Warm & Hold feature and 4. Within 5 seconds, press the . The display will will maintain an oven temperature of 170°...

  • Page 15: Setting Warmer Drawer Controls

    Setting Warmer Drawer Controls Arranging Warmer Drawer (Warm & Ready™ 2. For best results, preheat the drawer before adding food. Drawer) Rack Positions (some models) An empty drawer will preheat in approximately 15 minutes. Note: Use the warmer drawer to keep hot foods hot such as: 3.

  • Page 16: Self-Cleaning (Select Clean)

    Setting Warmer Drawer Controls (cont’d) Electrical Shock Hazard can occur and result in serious injury or death. Disconnect appliance from electric power before cleaning and servicing the warmer drawer. To Remove Warmer Drawer: Turn power off before removing the warmer drawer. 2.
  • Page 17 Self-Cleaning (cont’d) 3. If “End” is in the display and the Select Clean indicator NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom should be removed. light remains ON, press . The time of day will Starting the Select Self-Clean Cycle or a appear in the display.

  • Page 18: General Care & Cleaning

    General Care & Cleaning Cleaning Chart Surfaces How to Clean Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution Plastic Body Parts & of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Control Knobs Glass cleaners may be used if sprayed on a soft cloth 1st.

  • Page 19: Changing The Oven Light

    General Care & Cleaning (cont’d) Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Door Hinge To Remove Oven Door: locations 1. Open oven door completely (horizontal with floor - See Fig. 1). with oven door fully open 2.

  • Page 20: Adjusting Your Oven Temperature

    General Care & Cleaning (cont’d) Cleaning the Contoured Well Areas, Burner Cap, Burner Head & Burner Drip Pans (some models) he contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: To Clean the Recessed &...

  • Page 21: Before You Make A Service Call

    Before You Call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Oven smokes excessively during broiling - (1) Control(s) not Range is not level - (1) Poor installation.

  • Page 22: Recipes For Slow Cook

    Recipes for Slow Cook Slow Cook Turkey Breast In a large mixing bowl, combine first 5 ingredients; blend well. In a roasting pan, spread potatoes and onions over the bottom 1 turkey breast of the pan. Pour soup mixture over potatoes and onions; 2 cups chicken broth topping with the pork chops.
