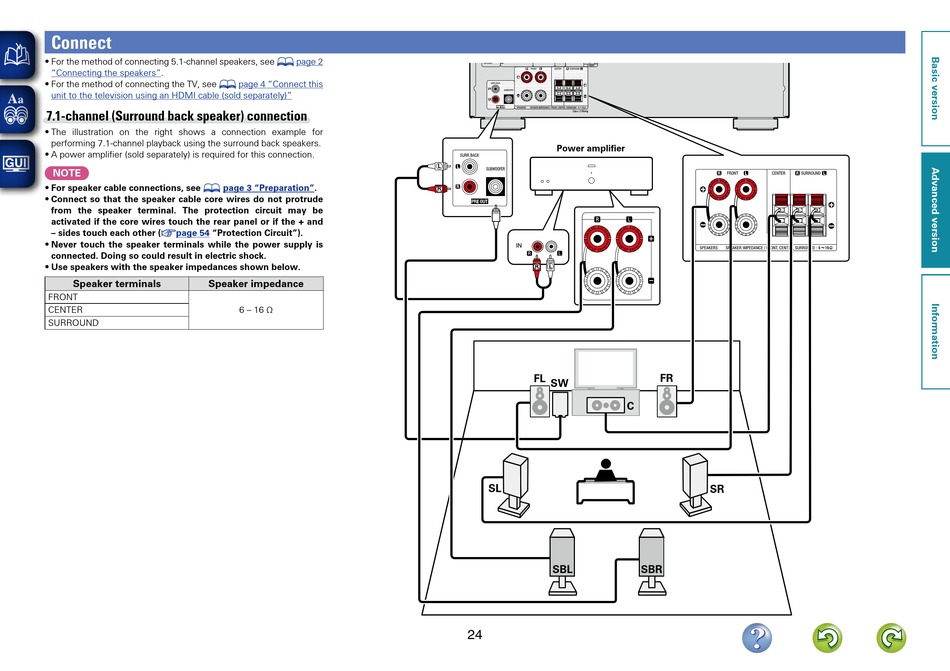

Connect

• For the method of connecting 5.1-channel speakers, see
"Connecting the speakers".
• For the method of connecting the TV, see C page 4 "Connect this
unit to the television using an HDMI cable (sold separately)"
7.1-channel (Surround back speaker) connection
• The illustration on the right shows a connection example for
performing 7.1-channel playback using the surround back speakers.
• A power amplifier (sold separately) is required for this connection.
NOTE
• For speaker cable connections, see C page 3
• Connect so that the speaker cable core wires do not protrude
from the speaker terminal. The protection circuit may be
activated if the core wires touch the rear panel or if the + and
– sides touch each other (vpage 54 "Protection Circuit").
• Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
• Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
CENTER
SURROUND
C page 2
"Preparation".
6 – 16 Ω
Power amplifier
L
R
IN
R L
FL
SW
SL
SBL
24
FR
C
SR
SBR
