FLIR E4 Technical Data Manual

Part number:
63901-0101
Copyright
© 2013, FLIR Systems, Inc.
All rights reserved worldwide. Names and marks
appearing herein are either registered trademarks or
trademarks of FLIR Systems and/or its subsidiaries. All
other trademarks, trade names or company names
referenced herein are used for identification only and
are the property of their respective owners.
December 12, 2013, 09:55 AM
Legal disclaimer
Specifications subject to change without further notice.
Camera models and accessories subject to regional
market considerations. License procedures may apply.
Information and equipment described herein may
require US Government authorization for export
purposes. Diversion contrary to US law is prohibited.
Page 1 (of 10)

Technical Data

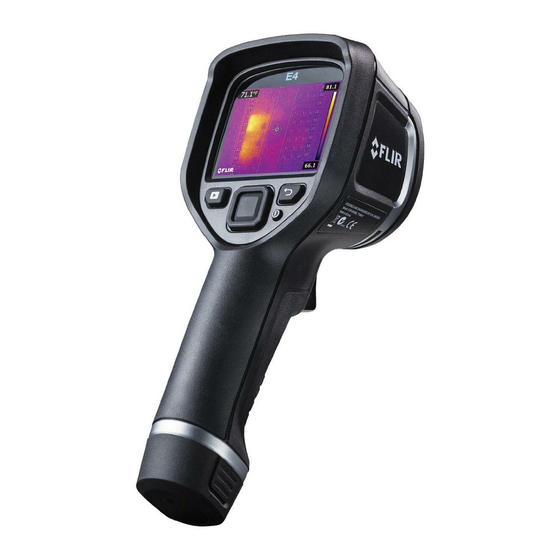

FLIR E4
General description
The Flir Ex series cameras are point-and-shoot infrared cameras that give you access to the infrared world. A Flir Ex
series camera is an affordable replacement for an infrared thermometer, providing a thermal image with temperature
information in every pixel. The new MSX and visual formats make the cameras incomparably easy to use.
The Flir Ex series cameras are user-friendly, compact, and rugged, for use in harsh environments. The wide field of view
makes them the perfect choice also for building applications.
Benefits:
• Easy to use: The Flir Ex series cameras are fully automatic and focus-free with an intuitive interface for simple
measurement in thermal, visual, or MSX mode.
• Compact and rugged: The Flir Ex series cameras' low weight of 0.575 kg and accessory belt pouch make them easy
to bring along at all times. Their rugged design that can withstand a 2 m drop test ensures reliability, even in harsh
environments.
• Ground breaking affordability: The Flir Ex series cameras are the most affordable infrared cameras on the market.
Imaging and optical data
IR resolution
Thermal sensitivity/NETD
Field of view (FOV)
Minimum focus distance
Spatial resolution (IFOV)
F-number
Image frequency
Focus
Detector data
Detector type
Spectral range
Image presentation
Display
Image adjustment
Measurement
Object temperature range
Accuracy
80 × 60 pixels
<0.15°C (0.27°F) / <150 mK
45° × 34°
0.5 m (1.6 ft.)
10.3 mrad
1.5
9 Hz
Focus free
Focal plane array (FPA), uncooled microbolometer
7.5–13 µm
3.0 in. 320 x 240 color LCD
Automatic adjust/lock image
–20°C to +250°C (–4°F to +482°F)
±2°C (±3.6°F) or ±2% of reading, for ambient temperature
10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F)
