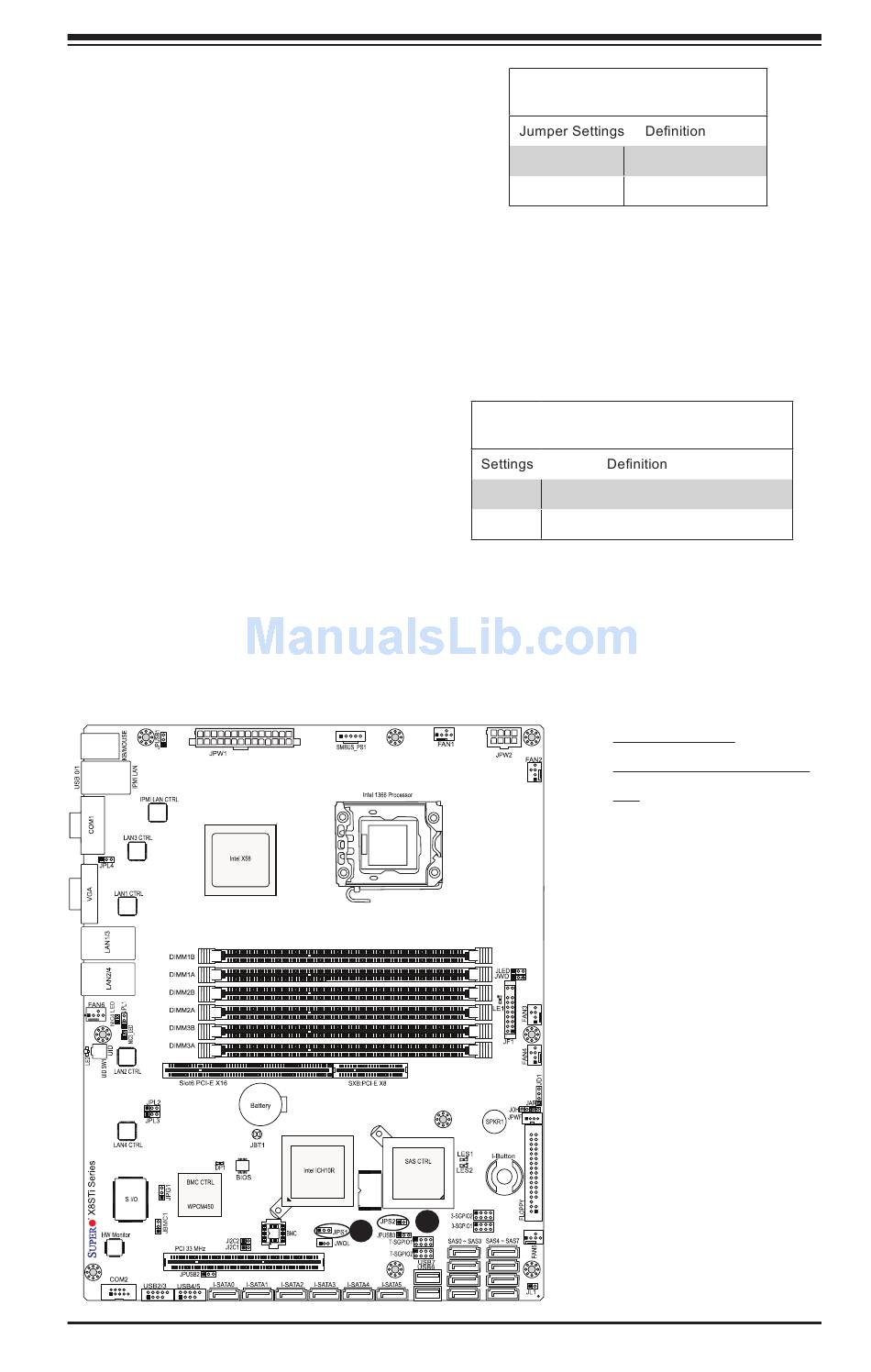

SAS Enable/Disable (X8STi-3F Only)

JPS1 allows you to enable or disable
SAS Connectors. The default position is
on pins 1 and 2 to enable SAS. See the
table on the right for jumper settings.
SAS RAID Mode Select (X8STi-3F
Only)
JPS2 allows you to select the SAS RAID
mode. You can use either Software RAID
or IT Mode. Close this jumper to use
Software RAID (Default). Set this jumper
to open to use the IT Mode.
Close
Open
LSI 1068E
B
A
2-33
Chapter 2: Installation
SAS Enable/Disable
Jumper Settings
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
SAS RAID Mode Select
Jumper Settings
Software RAID Enabled (Default)
IT Mode Enabled
A. RAID Enable
B. SAS RAID Mode Se-
lect
