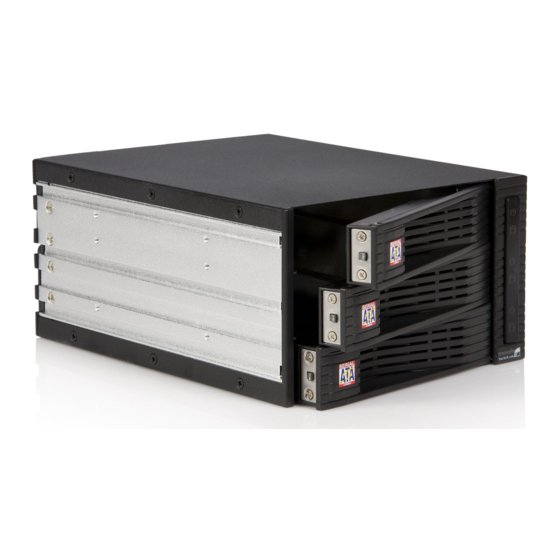

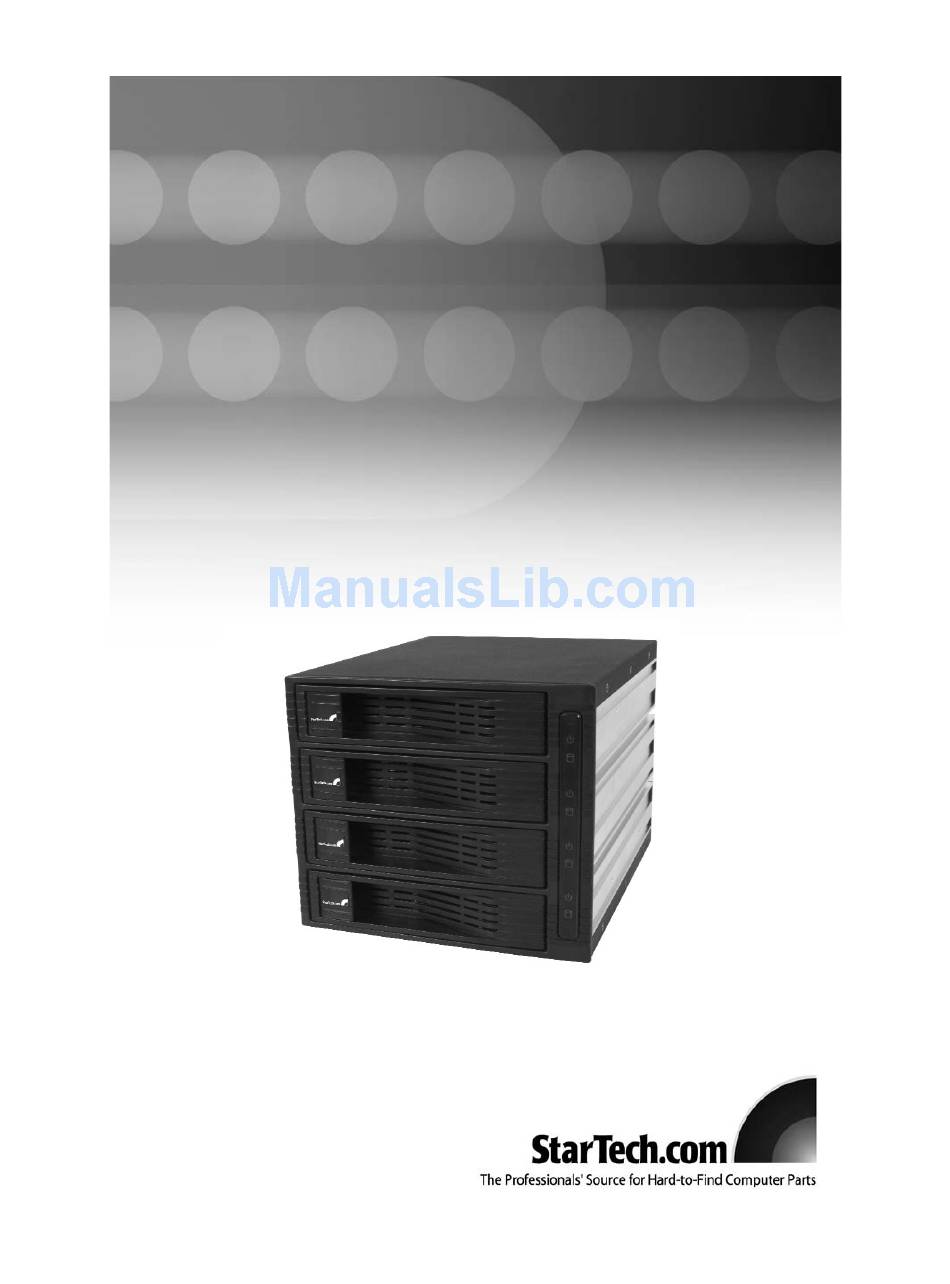

- Page 1 Trayless SATA Multi-Drive Bay 3 Drive Trayless SATA Hot-Swap Enclosure 4 Drive Trayless SATA Hot-Swap Enclosure HSB320SATBK HSB430SATBK Instruction Manual ***HSB430SATBK shown Actual Product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual Table of Contents Introduction ........... . .1 Features . -
Page 4: Introduction
• 5.25" Trayless SATA Hot Swap Drive Bay (1) • Instruction Manual (1) • Mounting screws (8) • TX4 + SATA Power LP4 Y-cable (x3 - HSB320SATBK x4 - HSB430SATBK) • SATA data cable (HSB320SATBK) (3) • SATA data cable (HSB430SATBK) (4) -
Page 5: Hardware Guide
Instruction Manual Hardware Guide Front Panel Power LED indicator Activity LED indicator Front door spring lock ***HSB430SATBK shown Rear Panel Indicator connections for fan and HDD activity SATA Data connector SATA Power connector ***HSB430SATBK shown... -
Page 6: Installation
WARNING: Hard drives, like all computer equipment can also be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching any components. StarTech.com recommends that you wear an anti- static strap when installing any computer equipment. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 Instruction Manual 3. Using the mounting screws provided, secure the Multi-Drive Enclosure to the drive bays: Connecting the Multi-Drive Enclosure to the motherboard/power 1. a. Attach one end of a SATA data cable (provided) to a SATA port on the motherboard. Connect the remaining SATA connectors provided by the cable to the topmost data port located on the rear panel of the Multi-Drive Enclosure.
- Page 8 Instruction Manual Loading hard drives in the Multi-Drive Enclosure Please note: If you are using third-party RAID software, please ensure that each drive is configured properly, prior to insertion. 1. Gently pull the spring lock to open the front door of the drive bay: 2.
- Page 9 Instruction Manual Unloading hard drives in the Multi-Drive Enclosure Please note: Removing a hard drive from the enclosure while the drive is busy, can result in lost data. To ensure the drive is not active when you remove it from the enclosure, please disable the drive from within the Windows Device Manager or the RAID software being used.
-
Page 10: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 11 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
