Note: ,
.
Only use groundless loudspeakers.
Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging
your loudspeakers at higher volumes.
Use 4-8
0
(Ohm impedance) loudspeakers only; using higher or lesser impedance may
damage the unit.
Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car
body (GND). The unit is using a BTL circuit and each loudspeaker must be connected
with insulated cables according the diagram.
Loudspeaker cables and/or optional external power amplifiers must always be about
30cm away from the antenna and/or antenna extension parts.

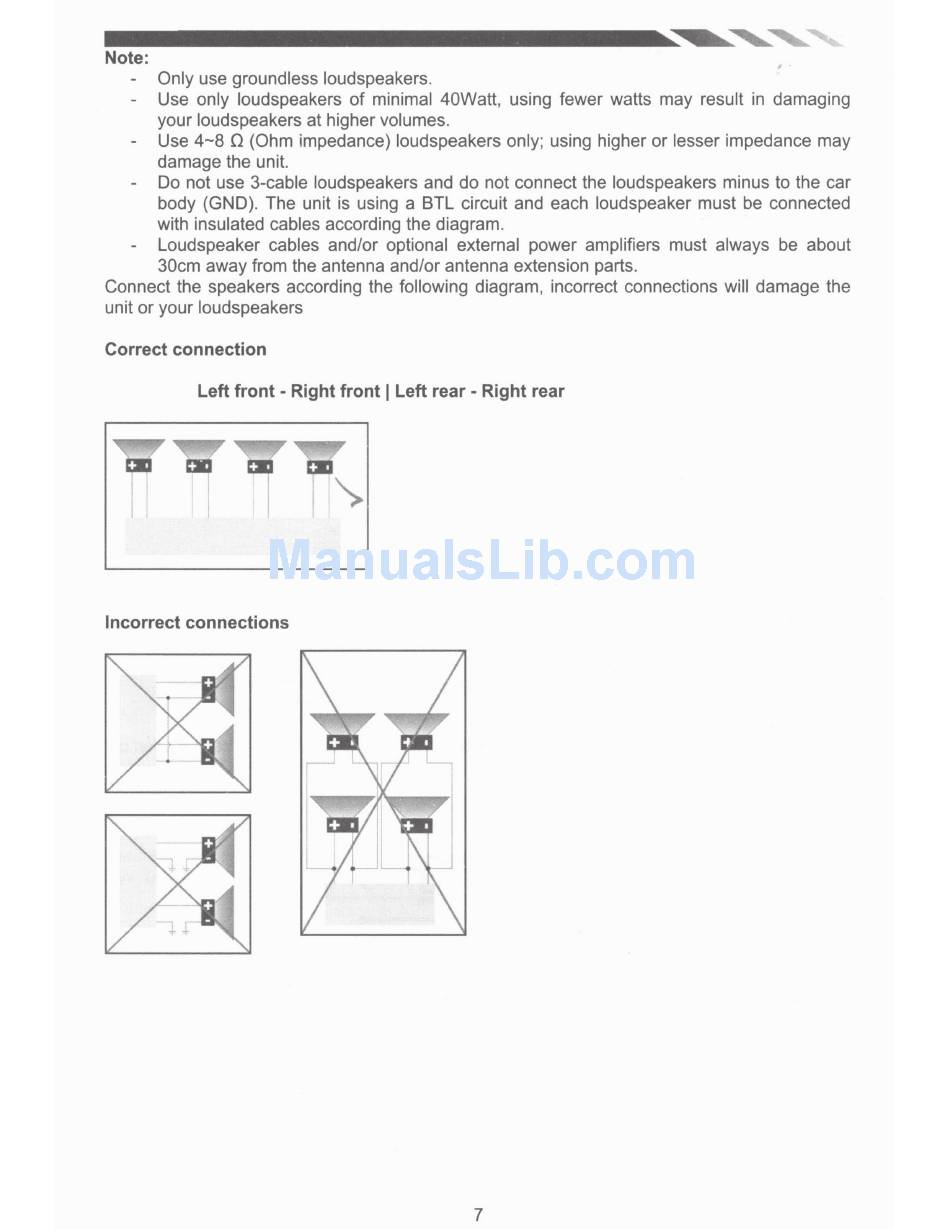

Connect the speakers according the following diagram, incorrect connections will damage the
unit or your loudspeakers
Correct connection
Left front - Right front
I
Left rear - Right rear
I I
I
I
Incorrect connections
