Summary of Contents for Actidata ActiDisk rdx

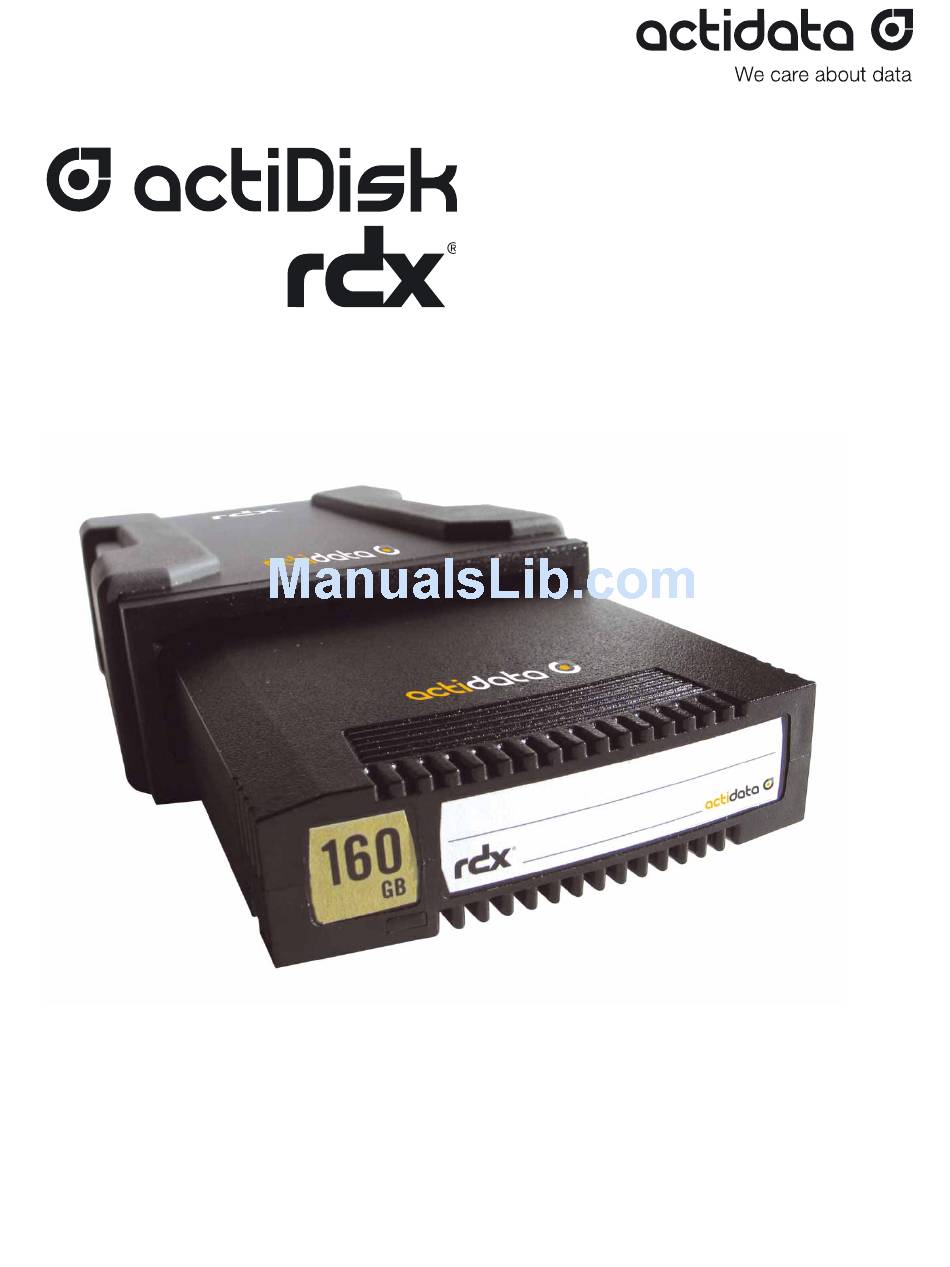

  • Page 1 Removable Hard Disk Storage System User Guide...
  • Page 2: Table Of Contents

    2.1 Installing the actiDisk RDX SATA or USB Internal Docking Station ......7 2.2 Installing the actiDisk RDX USB Removable Docking Station ......8 2.3 Installing Utility Software for Windows .
  • Page 3: Overview

    Storage System 1.1 Overview actiDisk RDX storage is a removable, ruggedized, hard disk drive system. It features backup application compatibility, high speed transfer rate for fast backups, portable cartridges and high level of data reliability. The storage system is available with an internal SATA or USB device (see Figure 1) or external USB device (see Figure 2).
  • Page 4: Capacity And Transfer Rates

    1.2 Capacity and Transfer Rates The capacity and transfer rate of the actiDisk RDX storage system are outlined in the table below (see Table 1). Capacity and transfer rate will vary depending on the actiDisk RDX cartridge type used. Table 1. Capacity and Transfer Rates...
  • Page 5: Front Panel Features

    RDX system with Linux. 1.6 Front Panel Features The front of the actiDisk RDX docking station has the following features and indicators: • Cartridge Indicator (located on cartridge) (1) • Emergency Eject Hole (2) •...
  • Page 6 Indicator Status Meaning Description No Power Docking station does not have power Steady GREEN Ready Power is on and the actiDisk RDX docking station is working properly Blinking GREEN Ejecting Cartridge is ejecting Steady AMBER Fault actiDisk RDX docking station has detected a fault condition.
  • Page 7: Quick Start Installation

    For optimal protection, use an electrostatic grounding strap. • Do not touch any printed circuit boards or electronic chips on your actiDisk RDX docking station or in your computer. • Turn your computer and any peripheral devices off before installing the actiDisk RDX docking station.
  • Page 8: Installing The Actidisk Rdx Usb Removable Docking Station

    2.2 Installing the actiDisk RDX USB Removable Disk Docking Station Carefully unpack the docking station and accessories. Attach the USB cable to USB port on the back of the actiDisk RDX docking station and connect it to an available USB 2.0 port on the computer (see Figure 2 below).
  • Page 9: Installing Utility Software For Windows

    The software included on this CD will start automatically when a user inserts the CD and will not interfere with any other applications running on your computer. NOTE: If the actiDisk RDX software is not installed the eject button and right-click eject method may not work properly. ®...
  • Page 10: Using The Actidisk Rdx Removable Hard Disk Storage System

    3.2 Handling the actiDisk RDX Cartridges Although actiDisk RDX cartridges are rugged, it is always best practice to take extra care not to drop them when handling. This will ensure data integrity and long life. Observe the following precautions: •...
  • Page 11 2 When the cartridge has been ejected by the docking station, grasp the exposed sides of the cartridge and pull the cartridge straight out (see Figure 2). NOTE: If the actiDisk RDX software is not installed the eject button and right-click eject method may not work properly (see section „Installing Utility Software for Windows“).
  • Page 12: Using The Actidisk Rdx Removable Disk Utility

    4.1 Overview The actiDisk RDX Utility is a Windows ® application that allows you to diagnose problems with your actiDisk RDX docking station. With the utility, you can: • Identify actiDisk RDX docking station attached to your computer. • Retrieve device and cartridge status information.
  • Page 13: The Power Indicator Is Off

    3 If plugged into an outlet strip make sure that it is turned on. 5.2 The Power Indicator is Steady AMBER If the power indicator is a steady amber, the actiDisk RDX docking station is not working properly. The error is due to one of the following conditions: •...
  • Page 14: The Cartridge Does Not Eject

    RDX External Docking Station The actiDisk RDX External device may appear slow based on the type of USB port the device is attached to. Make sure your docking station is connected to a USB 2.0 port instead of a USB 1.1 port. For best performance, connect directly to a USB 2.0 root hub on the PC and not an external hub.
  • Page 15: Write Error

    2 Check the cartridge indicator on the front of the cartridge. If this indicator is amber, the cartridge is not working properly. This may be due to severe damage to the cartridge. Run the actiDisk RDX utility software to obtain more information about the failure.
  • Page 16: General

    512 bytes Supported fi le systems ext2, ext3, FAT32 and NTFS* Capacity and transfer rate will vary depending on the actiDisk RDX cartridge type used. *NTFS is the default fi le system on the cartridge. 6.3 Reliability Unrecoverable error rate...
  • Page 17: Physical

    119.18 mm (4.69 inch) Weight 635 g (1.40 lbs) 540 g (1.19 lbs) 173 g (0.38 lbs) 6.5 Power Internal actiDisk RDX Docking Station External actiDisk RDX Docking Station Voltage Tolerance +5VDC ±5% (SATA and USB) +12VDC ±10% +12VDC ±10% (USB) +12VDC ±10% Power Consumption (Typical/Peak) 7.5W/13W (SATA)
  • Page 18: Environmental

    7. actiDisk RDX Removable Hard Disk Storage System Regulatory 7.1 Environmental • WEEE: product is registered and labeled as not appropriate for common disposal. • RoHS: all materials and processes used in the system meet the limits for compliance. 7.2 Emissions •...
  • Page 19: Overview

    8.3 Using the actiDisk RDX System with Linux actiDisk RDX Cartridge File System Considerations The actiDisk RDX cartridge is formatted as NTFS at point of sale. NTFS format does not allow writes in a Linux operating system. Your cartridge must be reformatted to a different fi le system supported by Linux, such as FAT32, ext2, and ext3, etc. Please refer to the man pages for fdisk and mkfs for detailed instructions on how to manipulate partition table and create fi...
  • Page 20: Troubleshooting

    /proc/scsi/scsi This will print out a list of all the SCSI devices in the system. The list should include any actiDisk RDX drives recognized by the system. If the actiDisk RDX docking station is not listed, check cable connections and power supplies (and BIOS settings for the SATA product.)
