- Page 1 Quick Start Guide Getting started with the actiNAS SL 1U-4 actiNAS XL 1U-4 QSG_actiNAS_XL_1U-4_english_Ver_01...
-
Page 2: Table Of Contents
2. Overview: Components & Connections 3. Installation of the Hard Drives 4. Preparation 5. Access to GUI / NAS Management 6. Quick Initialization 7. Performance-Boost 8. Access to BIOS and IPMI actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 3: Getting Started
Every actiNAS system comes with a service certificate. We recommend to register the service online: www.actidata.com Contact to Our Technical Support T: +49 (0) 2 31/56 36 32 – 35 (Technical Support) E: service@actidata.com I: www.actidata.com actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 4: Overview: Components & Connections

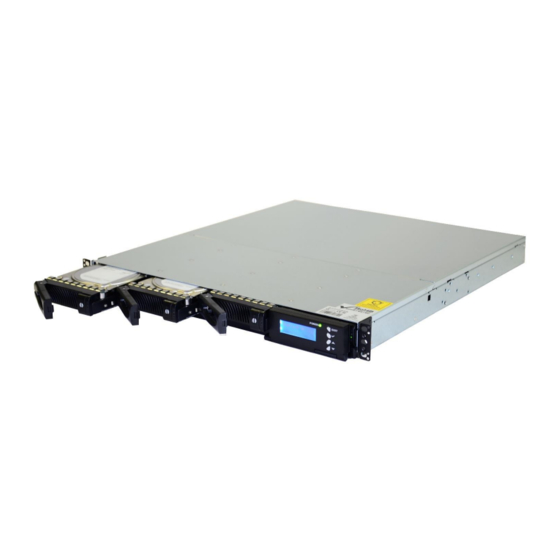

Quick Start Guide actiNAS SL / XL 1U-4 2. Overview: Components & Connections: Front View: LCD-Panel Control Buttons 4x 24x7 Enterprise SATA-Hard Drive Disks actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... - Page 5 2x RJ45 NICs Rear View XL 1U-4: Power On / Off Switch Optional 2x RJ45 NICs 270W 80 IPMI RJ45 Port 4x USB 3.0 PLUS Power 2x RJ45 NICs Supply actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16...
-
Page 6: Installation Of The Hard Drives
Place the HDD in the removable tray and fix the HDD with at least four screws in the provided holes. Please only use hard drives, which are certified from actidata Storage Systems GmbH. 3.c Assemble the tray with Hard Drive in the NAS Press the handle of the tray until the HDD-tray is audibly locked into the place. -
Page 7: Preparation
It is shown at the LCD-Display. If no dynamic IP is available, LAN0 will set to static IP 172.16.0.1. You can modify the network setting with the LCD panel. Exit-Button Confirm-Button Arrow Keys Change with the following keys the network configuration. actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 8: Access To Gui / Nas Management
(no ports required). Now the login window of the actiNAS GUI appears: Please enter the login name and the password. Please also choose the language and confirm with [Enter]. Login Name / Default Password: admin / 00000000 actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 9: Quick Initialization
If you answer with “Yes”, you can start with the Quick Initialization. 6.b Define the basic configuration for Network, RAID and Shares. Press “OK” to confirm the settings. Of course, there are more individual settings possible in the GUI. actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 10: Performance-Boost
How to deactivate the Samba Server Signing: 7.a Open the Service-Manager (a). 7.b Select Samba Service (b). 7.c Deactivate the option “Server Signing” (c). 7.d Confirm with “Apply” (d). actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... -
Page 11: Access To Bios And Ipmi
The IPMI-GUI allows, to check detailed temperature and fan informations. Also you are able to Power-On the NAS by remote. You can also download the IPMI-logs, by clicking the Button „Save Event Logs“. Please change the password of the IPMI after the first access. actidata Storage Systems GmbH – D-44149 Dortmund – Wulfshofstr. 16... - Page 12 I: www.actidata.com All right reserved actidata Storage Systems reserved all rights on this document. Any copy in print or electronical way or use outside the described use are forbitten. Changes will be done without any notice. No liability in case of any mistake or error in this document.
