Planar Clarity Matrix MX55HDU Specification

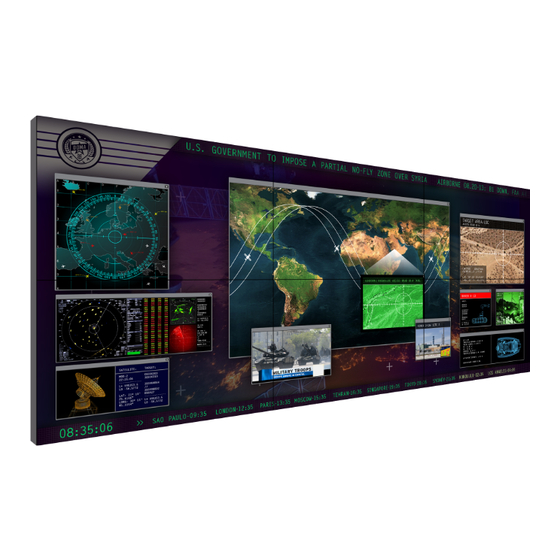

The Clarity™ Matrix MX55HDU-L with G2
Architecture is an ultra-narrow bezel 55" LCD video
wall that provides outstanding tiled visual
performance, supports extended operation and
requires minimal installation space. Designed for 24x7
operation, the Clarity MX55HDU-L features 800 nits
brightness, LED backlight technology and full HD
resolution making it the ideal video wall for high-
impact, mission-critical applications. The MX55HDU-L
sets a new benchmark with a tiled bezel width as
small as 3.7 mm, creating a near seamless digital
canvas.
SPECIFICATION
Planar Part Number
Technology
Diagonal
Aspect Ratio
Native Resolution Panels
Tiled Bezel Width
Bezel Width
Brightness (typ)
Response Time (typ)
Contrast ratio (full field)
Full viewing angle
Backlight life (1/2
brightness)
Mounted depth
Acoustic noise
Heat load
Operating temperature
range
Operating humidity range
Backlight control
Clarity Matrix MX55HDU
LCD Video Wall System
DETAIL
997-7460-00
Commercial-grade direct view LCD
55 inches
16:9
1920 x 1080
3.7 mm
N/A
800 cd/m² or nits
8 ms
3500:1
178°
50,000 Hrs
3.6" wall to front of screen
Fanless operation
628 BTU per hour at 500 nit
5 - 40 Degrees C
20-90% RH non-condensing
Individual and wall control
