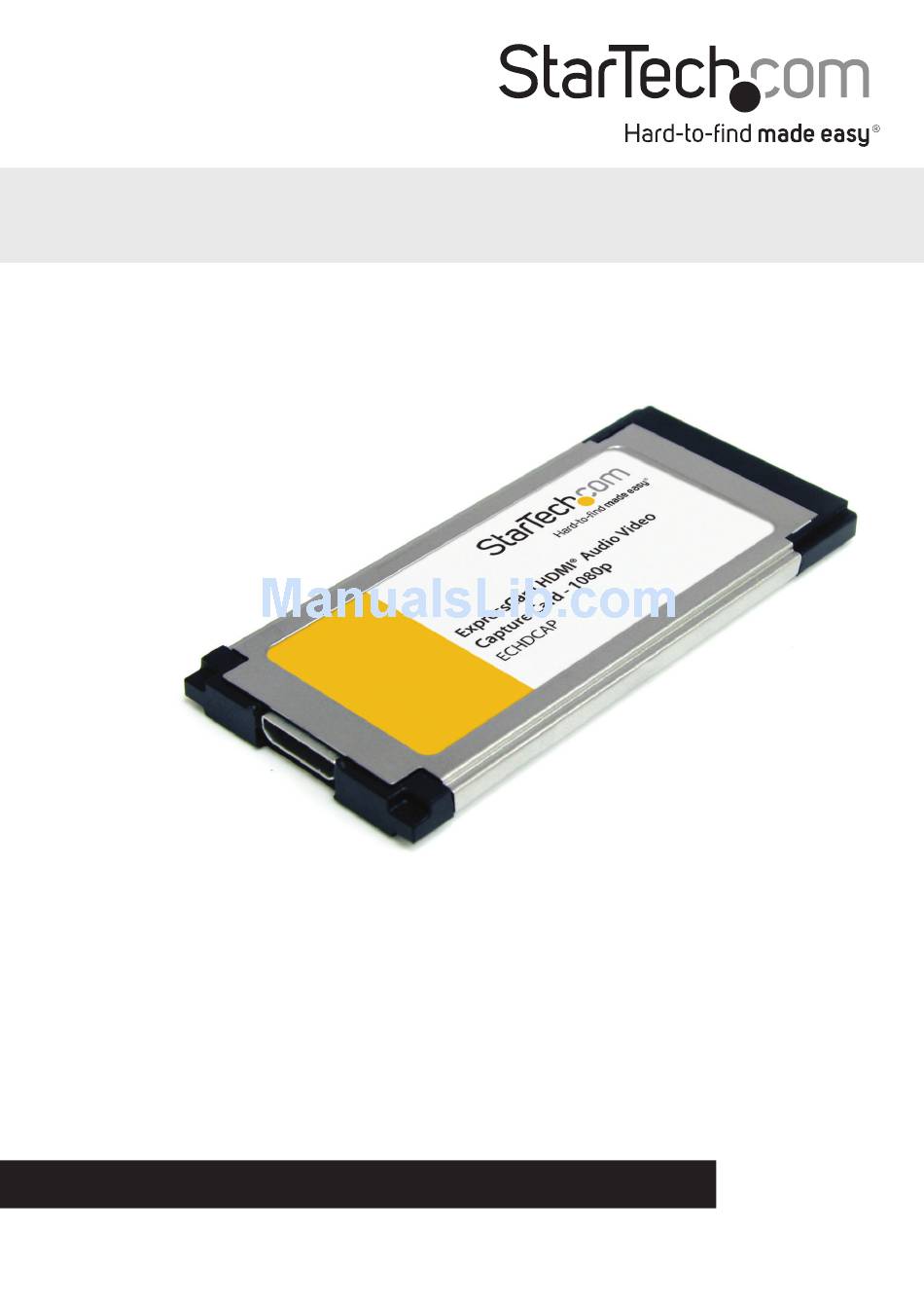

ExpressCard 1080p Capture Card for HDMI®
ECHDCAP
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/19/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com ECHDCAP
Summary of Contents for StarTech.com ECHDCAP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/19/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver/Software Installation ........................2 How to Use ....................3 Stream Catcher............................3 Snapshot Files ............................4 Record Files ............................4 Schedule Recording ........................... 5 Settings .............................. -
Page 4: Introduction
Introduction The ECHDCAP ExpressCard Video Capture Card for HDMI® (1080p) lets you capture high-definition video and audio from an HDMI source to your laptop computer through an ExpressCard expansion slot. Support for full 1080p video input, as well as HDMI audio makes this HD capture card the perfect solution for creating digital copies of your videos for editing and compiling, or for simply recording video to your laptop. -
Page 5: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. -
Page 6: How To Use
How to Use Connect the video/audio HDMI source to the video capture card using the appropriate HDMI cable. Stream Catcher Double-click the “StreamCatcher” icon on the desktop to launch the video capture application. This will bring up the main menu screen that contains the video preview window and recording controls. -
Page 7: Snapshot Files
Snapshot Files Clicking this button will open the folder location where all of the snapshot files are saved in Windows. Record Files Clicking this button will open the folder location where all of the recorded video files are saved in Windows. Instruction Manual... -
Page 8: Schedule Recording
Schedule Recording The software can be setup to start recording at a specific time and date and occur once or multiple times. Setup the schedule and click the “Add” button to save it. Multiple schedules can be maintained at the same time. To remove a schedule, simply select it from the list, and click the “Delete”... - Page 9 Record Settings contains settings related to video recording and snapshots. The location to save recorded video files as well as recording quality can be configured. The location to save the snapshot images and file format (JPG, BMP) are also set here. Instruction Manual...
-
Page 10: Specifications
Specifications Host Interface ExpressCard Form Factor ExpressCard/34 (34mm) Chipset ID MStar MST3367CMK-LF-170 External Connectors 1 x HDMI type A female Audio Support Yes (Stereo) Video Systems NTSC-M, PAL-B/M/60 Video Encoding H.264, MPEG-4 TV: 480i/p, 576i/p, 720p, 1080i/p Supported Resolutions PC: 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080 HDCP Compliant Operating Temperature... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
