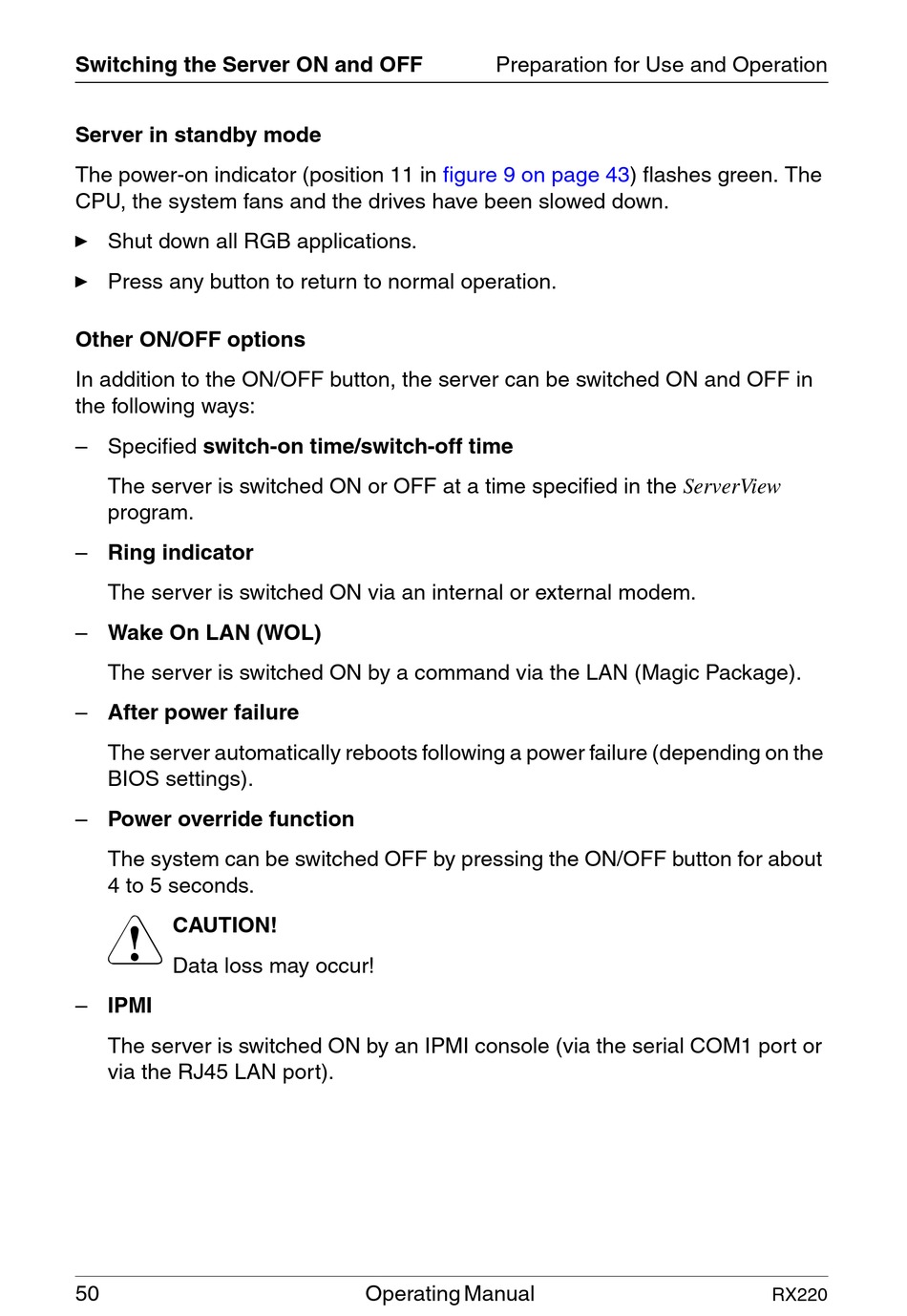

Switching the Server ON and OFF
Server in standby mode
The power-on indicator (position 11 in
CPU, the system fans and the drives have been slowed down.
Ê Shut down all RGB applications.
Ê Press any button to return to normal operation.
Other ON/OFF options
In addition to the ON/OFF button, the server can be switched ON and OFF in
the following ways:
– Specified switch-on time/switch-off time
The server is switched ON or OFF at a time specified in the ServerView
program.
– Ring indicator
The server is switched ON via an internal or external modem.
– Wake On LAN (WOL)
The server is switched ON by a command via the LAN (Magic Package).
– After power failure
The server automatically reboots following a power failure (depending on the
BIOS settings).
– Power override function
The system can be switched OFF by pressing the ON/OFF button for about
4 to 5 seconds.
V
CAUTION!
Data loss may occur!
– IPMI
The server is switched ON by an IPMI console (via the serial COM1 port or
via the RJ45 LAN port).
50
Preparation for Use and Operation
figure 9 on page
Operating Manual
43) flashes green. The
RX220
