Preparation for Use and Operation
5.1.2
The Rear

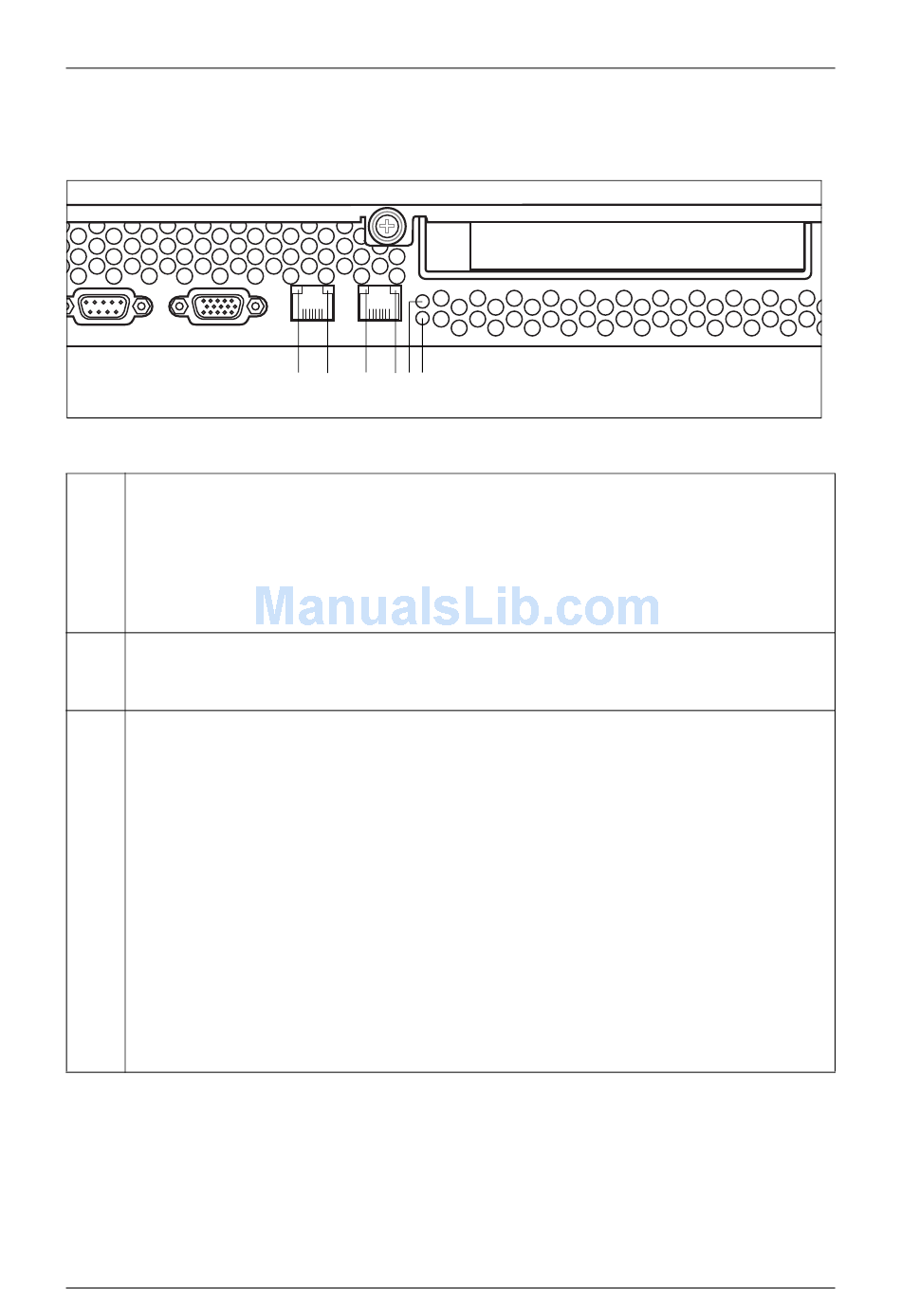

Figure 11: Connection panel: indicators
1
LAN activity indicator (green)
Flashes green when a LAN transfer occurs.
Does not light if there is no LAN connection available.
Lights if there is a LAN connection available.
2
LAN transfer rate indicator (dual color)
No function. Does not light.
3
Global Error indicator (amber)
Does not light when the system is ok. No service incident or critical event
has occurred.
Flashes amber when a critical event has occurred. Users can check
BIOS Setup, system event log or via ServerView for event details. The
indicator also flashes in standby mode.
Lights amber when a prefailure event has been recognized. Users can
check system event log or via ServerView for event details. The indicator
also lights in standby mode.
If the event is still acute after a power failure, the indicator is activated
after the restart.
Table 4: Indicators on the rear
RX220
1 2
1 2 3 4
Operating Manual
Operating and Indicator Elements
47
