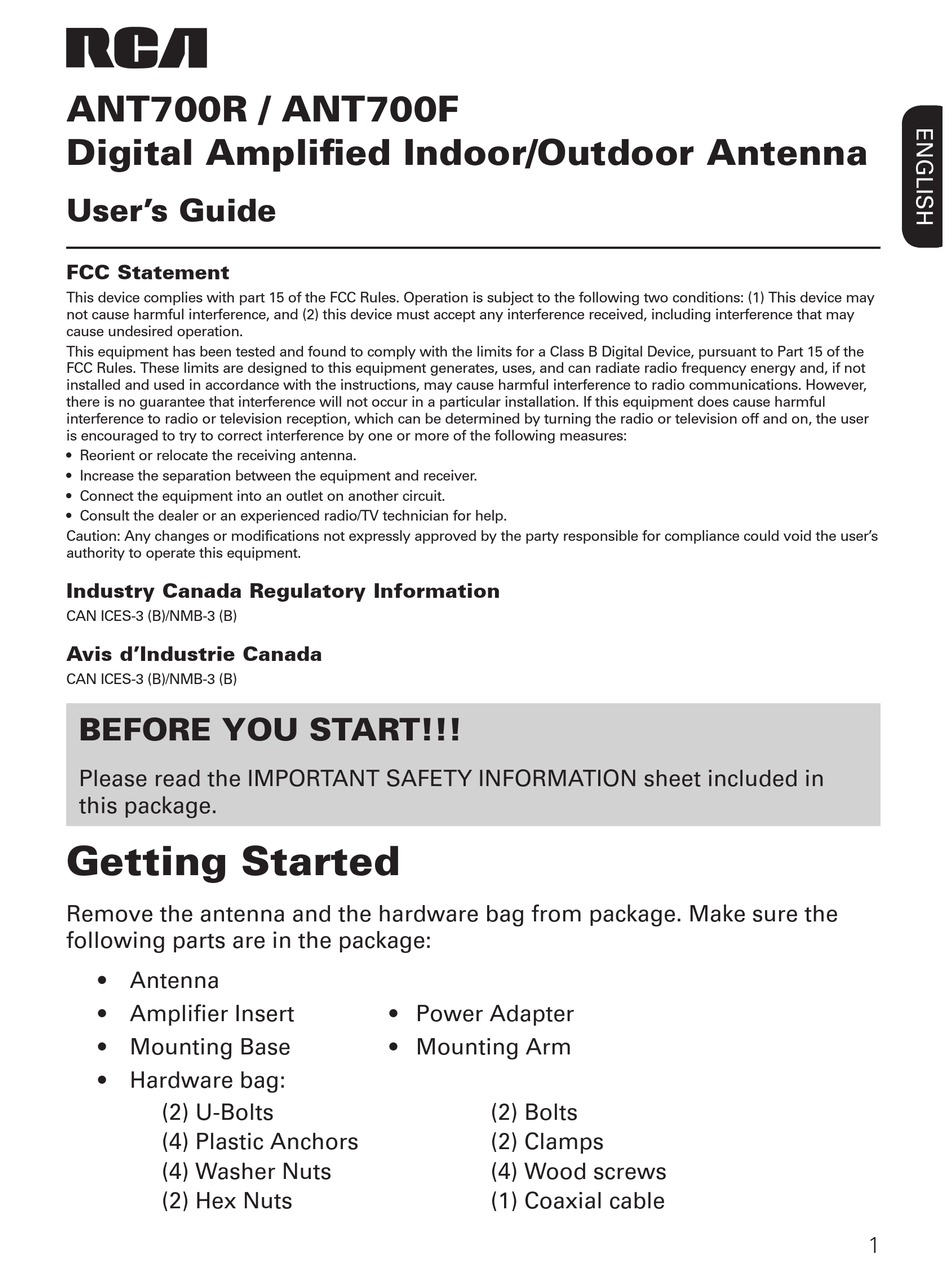

ANT700R / ANT700F
Digital Amplifi ed Indoor/Outdoor Antenna
User's Guide
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the
FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the radio or television off and on, the user
is encouraged to try to correct interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on another circuit.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
Industry Canada Regulatory Information
CAN ICES-3 (B)/NMB-3 (B)
Avis d'Industrie Canada
CAN ICES-3 (B)/NMB-3 (B)
BEFORE YOU START!!!
Please read the IMPORTANT SAFETY INFORMATION sheet included in
this package.

Getting Started

Remove the antenna and the hardware bag from package. Make sure the
following parts are in the package:
•
Antenna
•
Amplifi er Insert
•
Mounting Base
•
Hardware bag:
(2) U-Bolts
(4) Plastic Anchors
(4) Washer Nuts
(2) Hex Nuts
• Power Adapter
• Mounting Arm
(2) Bolts
(2) Clamps
(4) Wood screws
(1) Coaxial cable
1

Advertisement

loading

Related Manuals for RCA ANT700R

Summary of Contents for RCA ANT700R

  • Page 1: Getting Started

    ANT700R / ANT700F Digital Amplifi ed Indoor/Outdoor Antenna User’s Guide FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 2: Mounting The Antenna

    Finding the Right Location Before you mount the antenna, consider the following factors in reception performance: • The antenna usually performs best when mounted horizontally • The antenna should be mounted on the side of your house that faces most of your local broadcast towers. Visit www.antennaweb.org to see the locations of your local broadcast towers.
  • Page 3 Mounting to a Surface 1. Mount the base to the surface. Find the four wood screws included in this package. Using these screws, attach the base to the surface as shown here. If you’re mounting to concrete, brick, or drywall... You’ll need to use the anchors included in this package.
  • Page 4 2. Attach the arm to the base. Find one of the bolts and hex nuts included in this package. First, set the bolt in the base’s mounting well. Then position the arm over the other side of the well. Tighten the nut to attach the arm to the base.
  • Page 5 4. Connect the coaxial cable to the antenna. Connect the coaxial cable to the F-connector on the bottom of the antenna. Cover the connector with the cable’s attached weather boot. To adjust the antenna’s position: 1. Loosen the bolt on either end of the arm. 2.
  • Page 6 2. Attach the clamp assemblies to the base. Find the other U-bolt, the four washer nuts, the two clamps, and the antenna base included in this package. Insert each U-bolt into the base as shown here. Then position a clamp and two washer nuts on the end of each U-bolt as shown here.
  • Page 7 4. Attach the arm to the base. Find one of the bolts and hex nuts included in this package. First, set the bolt in the base’s mounting well. Then position the arm over the other side of the well. Tighten the nut to attach the arm to the base as shown here.
  • Page 8 The antenna can be mounted either vertically or horizontally. To mount it horizontally, simply rotate the arm clockwise 90 . Try different positions for best performance. 90° To adjust the antenna’s position: 1. Loosen the bolt on either end of the arm. 2.

  • Page 9: Connecting To Your Tv

    Connecting to Your TV 1. Run the coaxial cable from the antenna towards your television set. Connect the coaxial cable to the ANT jack on the supplied amplifi er insert. 2. Connect built-in coaxial cable on the amplifi er insert to the antenna input jack on your TV or converter box.

  • Page 10: 12 Month Limited Warranty

    Return Center, 150 Marcus Blvd., Hauppauge, NY 11788 CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit #3 Door 16, Mississauga Ontario L5T 3A5 ©2012 VOXX Accessories Corporation 3502 Woodview Trace, Suite 220, Indianapolis, IN 46268 ANT700R/ANT700F NA IB 04...
