OUTDOOR/ATTIC
HD ANTENNA
INSTALLATION GUIDE

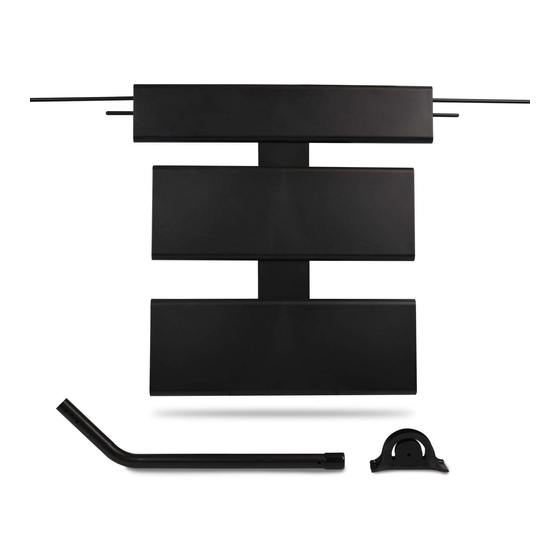

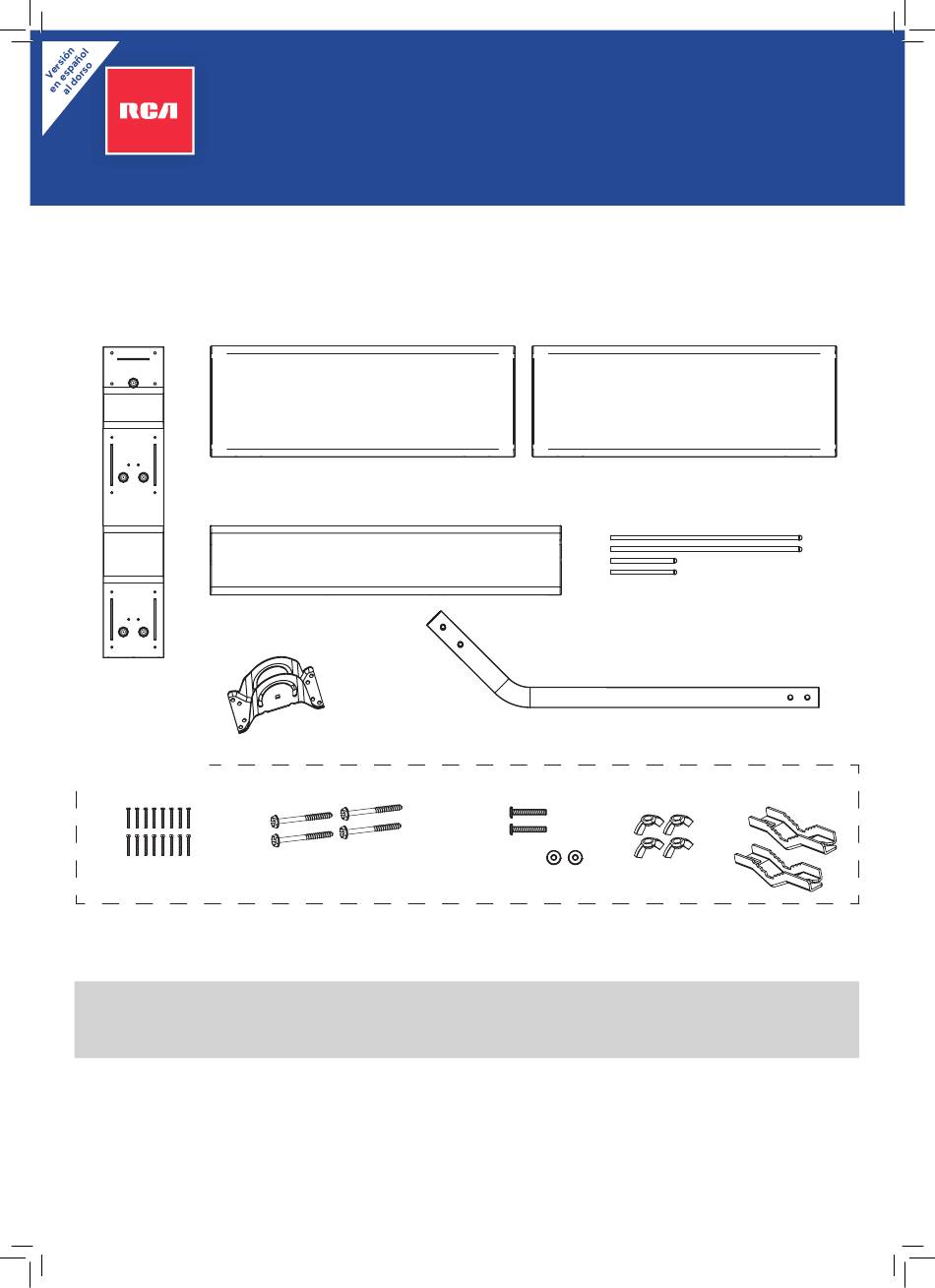

What's in the package?
(1) Antenna
(2) UHF elements
bracket
(1) UHF/VHF combo panel
(1) Mounting base
(1) Hardware bag
(16) M4x23 screws
(4) 1/4"x60 mounting screws
BEFORE YOU START!!!
Please read the IMPORTANT SAFETY INFORMATION sheet included in this package.
(4) VHF elements
(1) Mast
(2) 1/4"x48 screws
(4) Wing Nuts
(2) Hex Nuts
ANT950E Insert 03
(2) Clamps
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RCA ANT950E
Summary of Contents for RCA ANT950E
- Page 1 ANT950E Insert 03 OUTDOOR/ATTIC HD ANTENNA INSTALLATION GUIDE What’s in the package? (1) Antenna (2) UHF elements bracket (1) UHF/VHF combo panel (4) VHF elements (1) Mounting base (1) Mast (1) Hardware bag (16) M4x23 screws (4) 1/4”x60 mounting screws (2) 1/4”x48 screws...
- Page 2 Use the RCA Signal Finder App to find the best location for your antenna. (Optional) In the Google Play or Apple App Stores, search for “RCA Signal Finder” and look for the icon shown here. Then download and install the App.
- Page 3 Repeat with the other UHF element on the bracket’s middle set of connectors. Screw the second UHF element in to place. B. Attach the UHF/VHF combo panel to the antenna Pieces Used: bracket. UHF elements UHF/VHF combo panel, back + bracket UHF element + bracket, front Find the F-connector on the back of...
- Page 4 Assemble the antenna (continued). C. Connect the VHF dipoles to the UHF/VHF Pieces Used: combo box. Combo UHF Element panel, side + Bracket + Combo Box Combo panel, front Long VHF element Take one of the two longer VHF elements and insert its hollow end into the top hole on one side of the combo panel until it contacts the screw threads inside this...
- Page 5 B. Secure the mast to the mounting base. Pieces Used: (1) Mast Insert the mast into the middle of the mounting base as illustrated here. Then insert one of the 1/4”x48 mounting bolts through the bottom hole on the side of the mounting base and mast as shown.
- Page 6 Connect to your TV. Connect one end of a coaxial cable (not included) to the antenna lead. Once you’ve tightened the cable onto the lead, lower Rain the rain boot over the connection to protect it from Antenna boot water. lead Coax cable...
- Page 7 12 Month Limited Warranty Voxx Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts and repair labor.
