NetComm NP740n Quick Install Manual page 2

3 Open up your web browser and type into the
address field:
192.168.1.1/wanpppoe.asp
4 Enter the following details
User name:
Password:
Then click OK

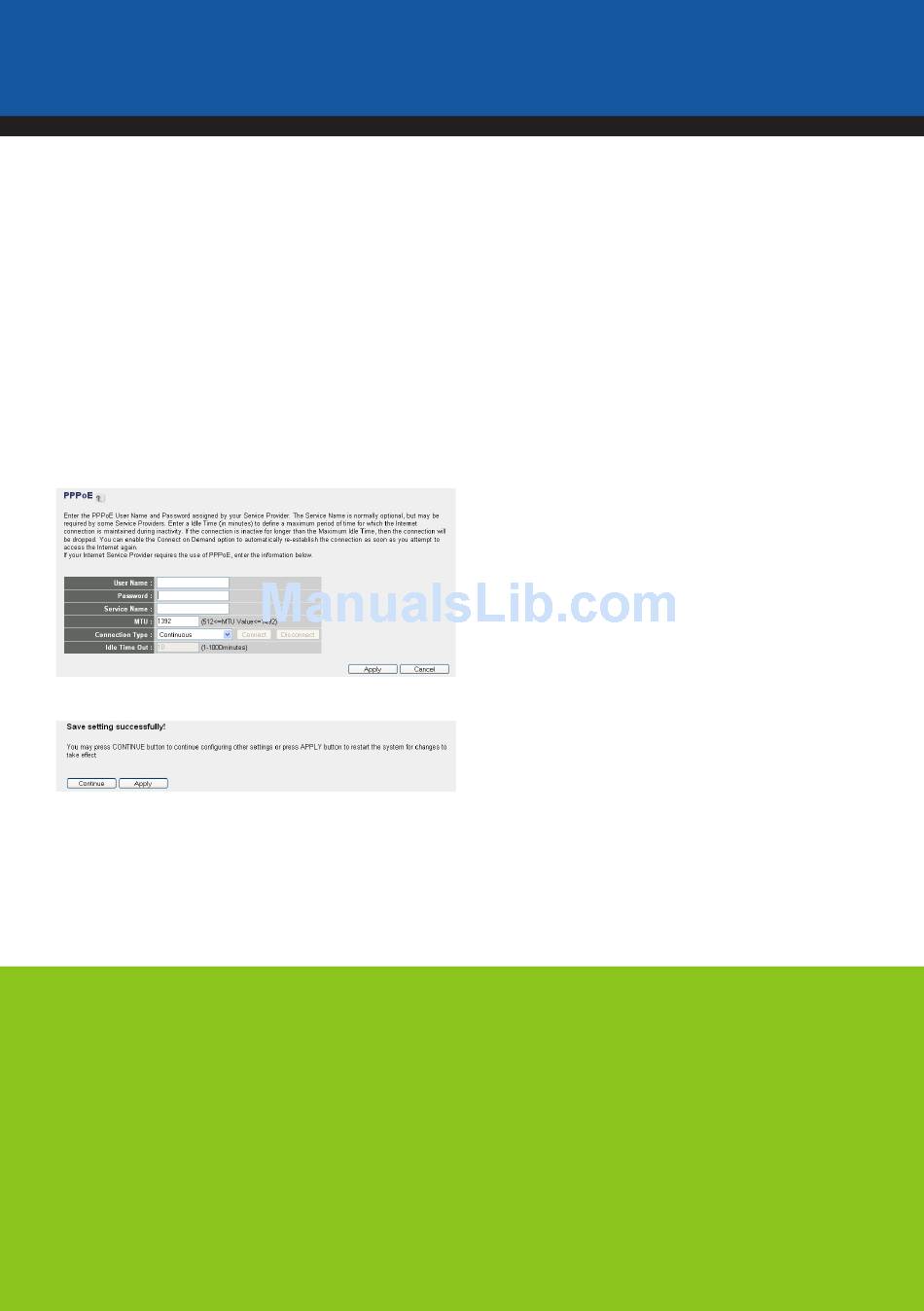

5 Enter your Internet Service Provider (ISP's) User
Name and Password into the fields as shown below.
The Service Name can be left blank. Click Apply
with the default settings.
The following page will appear. Click Apply
6
7 See below for instructions on how to establish a
wireless connection.
Establish a Wireless Connection
You can connect multiple wireless devices including laptops, desktops and PDA's to your 11n
Wireless Router by following the 2 basic steps:
1 Using your wireless device, scan the wireless networks in your area and select the network
called wireless. Then click Connect.
Enter the following security key: a1b2c3d4e5
2
Setup option 2
admin
If you are unable to set your Broadband Modem to Bridge
Mode or do not need to network multiple devices, follow
admin (lower case)
the steps below:
1
2
3
4
5
NP740n – Quick Install Guide
Connect your Router – refer to the step 2 on the
previous page
Open up your web browser and type into the
address field:
192.168.1.1/lan.asp
Enter the following details
User name:
Password:
Then click OK
Enter the following numbers into the fields listed
below:
IP Address:
Start IP:
End IP:
Click on Apply/Submit or press OK
admin
admin (lower case)
192.168.3.1
192.168.3.2
192.168.3.254
