Part Names

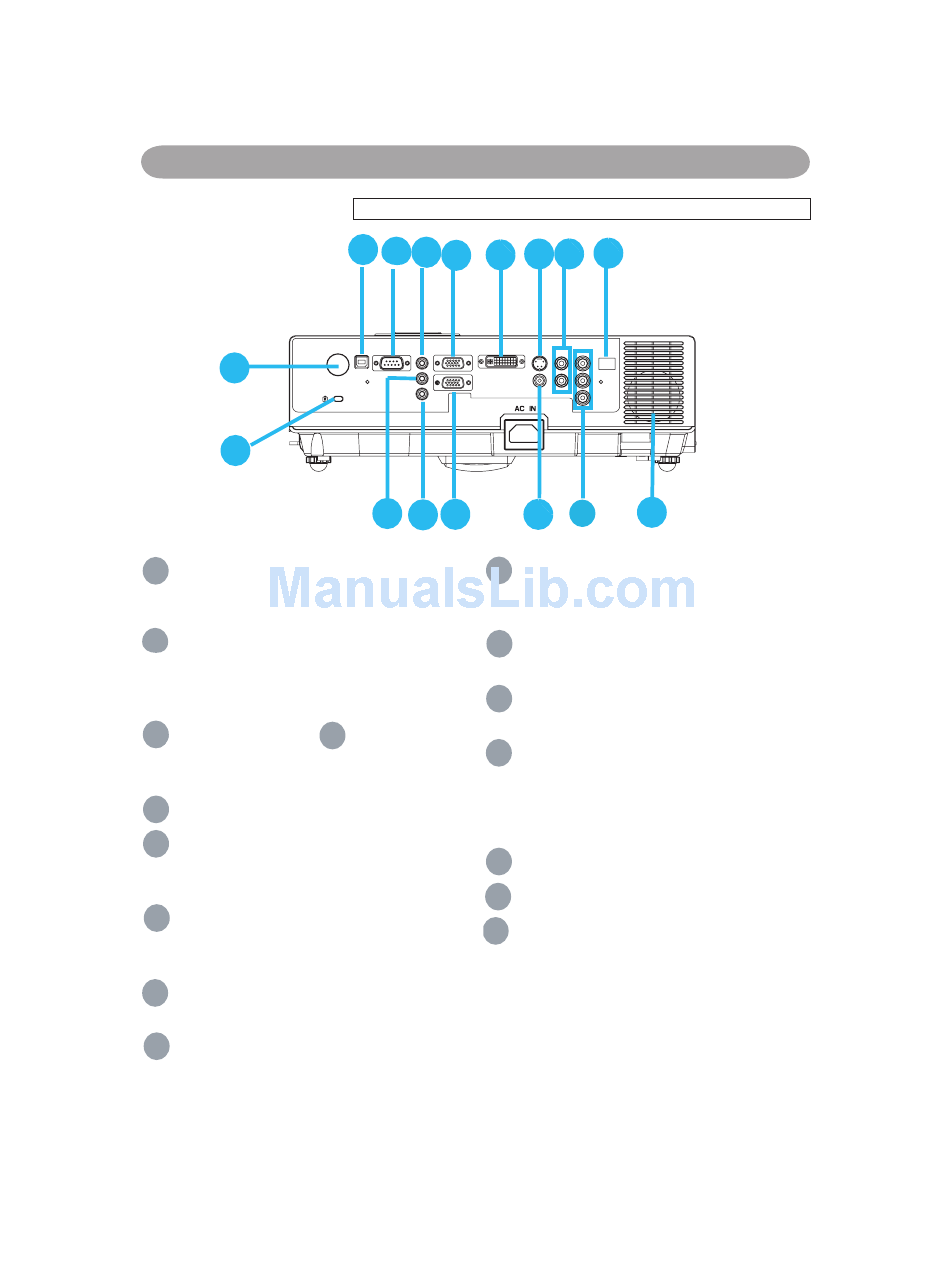

Rear

N
P
A MOUSE
Connect a USB mouse cable to a computer
to control computer mouse functions.
B
RS232
Serial data port for controlling the projector
with a computer or other RS-232 control
device.
C
AUDIO IN 1 &
Mini jack port corresponds to computer
input.
E
AUDIO OUT
F
RGB IN
Input analog RGB video signal from a
computer.
G
RGB OUT
Connect an external monitor to this
connection to view the "RGB IN" input.
H
DVI-I IN
Input digital DVI-I signal from a computer.
I
S-VIDEO
S-Video signal from a video source.
(Please click here if your projector is with high efficiency filter.)
A B C
H I
F
D E
G
J
K
L
D
AUDIO IN 2
M
N
O
P
8
M
K
O
L
J
VIDEO
Composite video signal from a video
source.
AUDIO IN 3, R / L
RCA type corresponds to video input.
COMPONENT /Y, Pb, Pr
Input Y,Pb,Pr signal from a DVD player.
LAN (Optional)
This function is optional.
Please see page 34 Network Control
Application for details.
REAR IR RECEIVER
SPEAKER
Slot for Kensington Micro Saver
Security System
Built-in Security Slot
This security slot supports the MicroSaver
Security System. MicroSaver
trademark of Kensington Microware Inc.
The logo is trademarked and owned by
Kensington Microware Inc.
®
®
is a registered
