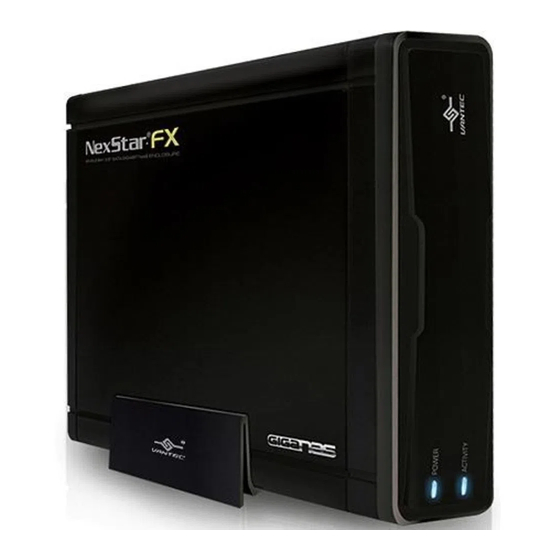

Summary of Contents for Vantec NexStar FX NST-610NU-N1
- Page 1 Инструкция для Vantec NST-610NU-N1 Перейти в карточку товара 8 800 775 98 98...
- Page 2 User’s Manual Copyright © 2010 Vantec Thermal Technologies. All Rights Reserved.
-
Page 3: Package Contents
PS3 and Playstation are trademarks of Sony Corporation. Apple, iTunes, Macintosh and Mac are trademarks of Apple Computer. NexStar is a registered trademark of Vantec Thermal Technologies. *All other third-party brands and names are the property of their respective owners. -
Page 4: Table Of Contents
Table of Contents Safety Instructions Package Content / Part Layout 1. Hardware Installation 2. NexStar FX Setup 3. Coniguring the NexStar FX 3.1 Login 3.2 Language Setting 3.3 Disk Tools 3.4 System Settings 3.5 Account Settings 3.6 Server Settings 3.7 Media Server 3.8 Backup (NAS to NAS) 3.9 Log Files 4. -
Page 5: Safety Instructions
Safety Instructions Before starting, take a few minutes to read this manual. Read all instructions and save this manual for later reference. User’s Manual Do not bump or drop the NexStar FX. Do not place the NAS on an unstable cart, stand or table. It may fall and cause serious damage to the product. -
Page 6: Package Content / Part Layout
Warning Caution This symbol is used to remind user to pay attention to important descriptions regarding usage and maintenance or additional important information related to this NAS system. Note This symbol is used to provide user with useful information that can make NexStar FX NAS System Reset Button USB Port... -
Page 7: Hardware Installation
1. Hardware Installation Remove the magnetic front cover Insert SATA Hard Disk... - Page 8 Put back the front cover Connect the power adapter Use the ethernet cable to connect the NAS to the Router/ Switch in the network Turn on Power Switch Rebound type power switch is used to protect the operation system. Power on – require 2-3 minute booting up NAS system. Power off –...
-
Page 9: Nexstar Fx Setup
2. NexStar FX Setup Please check your network environment and select the appropriate installation method before installing the NAS. Connect the NAS and PC to the same hub/ switch/ router. 2.2 Connect to PC for Individual System Connect the NAS directly to your PC by a network cable. 2.4 NexStar FX NAS Search Utility Install Insert the NexStar FX user’s CD-Rom in to your computer. - Page 10 2.4.1 NexStar FX NAS Search Utility Click the Setup button to begin. 2.4.2 NexStar FX NAS Search Utility Setup If the NAS is in the same subnet, the NexStar FX will be automatically listed as depicted in the picture below. Select the detected NexStar device and double click to enter GUI set up, or click OK to change IP settings using this utility.
-
Page 11: Login
3.1 Login admin Input the Username and Password in the login page, “ ” is the default Username & Password. Changing security privilege is recommended. 3.2 Language Settings The language can be changed for the entire web interface. Available in English, Germany, Spanish, French, Japanese and Chinese. -
Page 12: Disk Tools
3.3 Disk Tools Disk Tools You can create the following disk volumes by clicking on the corresponding icon on the “ ”. 3.3.1 Hard Drive Setup When the hard drive is properly installed: Disk tool A. Go to “ ” Basic Mode B. -
Page 13: System Settings
3.4 System Settings Status of the NexStar FX: System Information A. Go to “ ” and select “ ” B. This will display the current status of the NexStar FX. 3.4.1 LAN Settings System LAN Setting A. Go to “ ”... -
Page 14: Time Settings
3.4.2 Time Settings You may adjust the date and time manually or select your time zone from the drop down list and use a NTP server to synchronize the time via the internet. System Time Settings A. Go to “ ”... - Page 15 System A. Go to “ ” and select “ ” Restore B. Press “ ” to begin restoration. When the NexStar FX malfunctions or has a warning, an e-mail can be sent to the administrator address. Messages types - Password Messages: When Administrator password has been changed. - Update Firmware Messages: When Firmware has updated successfully.
-
Page 16: Firmware Upgrade
3.4.6 Firmware Upgrade *.gz select it to start the upgrade. Please note that the upgrade process may vary in time, please be patient. puter. To do this, please connect the NAS directly to your computer using a network cable and then start the damage your device! www.vantecusa.com Please check... -
Page 17: Account Settings
3.5 Account Settings 3.5.1 User Management A. Here you can Create users and change passwords, assign quota and private folder to users if desired. B. The NAS system by default creates an “Admin” and “guest-share”. There is a maximum of 128 users that can be created (including system default users). - Page 18 You can perform the following actions for user management: C. Add User Add user by giving a name, password, and usage quota. Click “Next” to continue. D. Assign group to the new users if desired. Then click next.
-
Page 19: Share Management
3.5.2 Share Management A. Create SAMBA/FTP shares folder and assign users to accessing. B. Add Share Folder Add Share Press “ ” and enter share folder name. Next Click “ ” to continue. C. FTP/ SAMBA Access Assign users or groups who will be accessing the SAMBA and FTP. Grant access to All Select Grant access to all will give anonymous access to all users without any password. -
Page 20: Group Management
3.5.3 Group Management In this page you can see all existing groups for the NAS and manage them by adding or removing them from the list. Groups are not required to grant access to the NAS system but will help the admin manage multiple users and easily share a folder among a group of people. -
Page 21: Server Settings
3.6 Server Settings 3.6.1 File Server A. Windows Setting (SAMBA) In this section, you can change the workgroup that the NAS belongs to and modify its description. The IP for the WINS Server (Windows Internet Name Server) can be left blank unless this is required for your network. -
Page 22: Dhcp Server
3.6.2 DHCP Server In this page, you are able to set up the DHCP server. In general, there is already a DHCP server on the local Once you have set everything up, press the “Save” button to start the DHCP server and save the settings. 3.6.3 Pr inter Server The NAS support most major brand printers, users can share printer resource from the network. - Page 23 C. Install your Printer driver in to your computer, (For example, if Epson PL-6200L Printer is connected to the Start NAS, you must install the PL-6200L driver on the computer. After driver installation please click “ ” -> Devices and Printers Add a printer Next “...
- Page 24 F. Search the NAS and look for the attached USB Printer, then click “Next” to browse for the printer driver. G. Go to Printer wizard and select the printer driver. Click “OK” to complete setup. Note: The NAS Printer server does not support GDI/Host-based printers. For some Multi-Function Printers (MFP), scanning functions may not be functional.
- Page 25 3.6.4 Bonjour A. In this page user can enable or disable the Bonjour service. By default, this is enabled, offering easy access to the login page. In addition to that, you can also enable the iTunes service. the bookmarks collection under Bonjour.
-
Page 26: Itunes Server
3.6.4.1 iTunes server play them directly from iTunes. The NAS system will automatically appear in iTunes under shared devices. B. Start iTunes and the NAS will appear as shared device. -
Page 27: Media Server
3.7 Media Server NexStar FX is equipped to handle most media ready systems such as Xbox 360 / PS3. Instantly stream movies, music and pictures to these systems easily. 3.7.1 Install Software This page allows you to add the DLNA software included on the driver disc. Click on Browse and navigate to the “DLNA Software”... - Page 28 3.7.2 Xbox When you turn on the Xbox 360, DLNA Media Servers on the same network are automatically detected. 1. Move to the “My Xbox” page Modem (ADSL / DSL, Cable, etc.) Router To Internet Ethernet Cable Xbox 360 (DLNA Media Server) (DLNA Client)
- Page 29 3.7.3 PS3™ When you turn on the PS3™ system, DLNA Media Servers on the same network are automatically detected and icons for the detected servers are displayed under (Photo), (Music), and Modem (ADSL / DSL, Cable, etc.) Router To Internet Ethernet Cable PS3™...
- Page 30 1. Select the icon of the DLNA Media Server that you want to connect to under (Photo), (Music), or Note: The PS3™ system must be connected to a network. For details on network settings, see (Settings) > (Network Settings) > [Internet Connection Settings] in this guide.
-
Page 31: Backup (Nas To Nas)
3.8 Backup (NAS to NAS) transfer time. 3.8.1 Backup Scheduling Make sure a network share folder is created before creating a remote replication task. Backup Scheduling Backup Log in to the NAS and go to “ ” under the “ ”... -
Page 32: Log Files
B. Select a source folder and click select to continue. 3.8.3 Scheduling Task This page shows the existing backup task, and 5 backup task can be created at maximum. 3.9 Log Files well as system and administration logs on this page. -
Page 33: Mapping A Network Disk
4. Mapping a Network Disk For easy access, we recommend mapping the storage as a network drive. Enter My Computer or Computer. On the top, go to the Tools menu and select “Map Network Drive…” or if you are on Windows 7, click on “Map network drive”. Choose the letter path you wish to map the network drive as and enter the IP address of the NexStar FX along with the designated folder of your choice. -
Page 34: Turn On Network Discovery (Upnp)
This will still appear even after a reboot of your Operating System. For quick and temporary access, you can also simply go to My Network Places, view the workgroup computers and select the NAS system. 5. Turn on Network Discovery / UPnP The NexStar FX supports UPnP function. - Page 35 Make sure Network discovery is turned on. The NexStar FX will be listed under your Network and will be listed as a UPnP device. You can select it...
-
Page 36: Q&A
6. Q&A Q: Why can’t I access to the NexStar FX control panel? A: Please connect the NexStar FX directly to your computer via RJ45 port. Open your web browser and key in the default IP address 192.168.1.1 then type “admin” for both Account name and password to enter the NexStar FX control panel. - Page 37 3. Open Microsoft Internet Explorer or other FTP software, and enter the NAS’s IP address in the address Q: Why can’t I connect to the NAS FTP? Why does it shows “link time out” when using Internet Explorer? A: Due to IE FTP being incompatible with your Router, we suggest users to use FTP software to connect. Q: What is the maximum number of users for FTP/Samba/server? A: FTP Server: Maximum 32 user accounts (8 User accounts can connect at the same time, and maximum 16 folders shared by one account).
-
Page 38: Warranty
Please check the content of the unit to make sure you received all parts. Also, check or if there are cosmetic defects, please contact the retailer from which you purchased the unit immediately and ask for a replacement. 8. Contact Vantec Thermal Technologies website: www.vantecusa.com... - Page 39 Vantec NST-610NU-N1 Описание...
