CARE & MAINTENANCE
BELTS:
Check belts every 50 hours. Replace any belts found to
be in poor condition.

BELT TENSION:

Mower Deck Serpentine Belt-P/N 9236

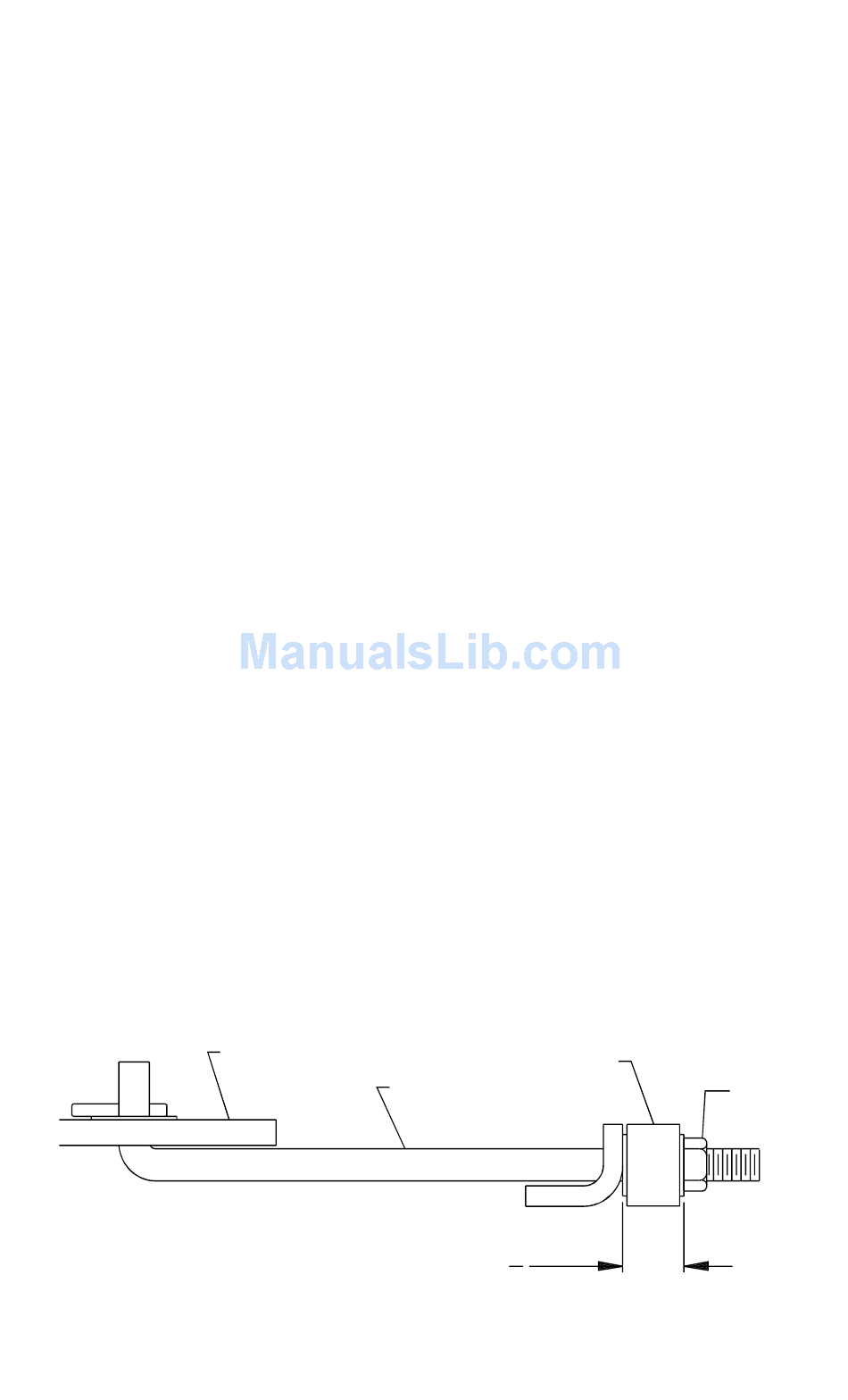

Manual adjustment. Refer to illustration below.
Engine to Mower Deck Belt-P/N 5861
Mower Deck Serpentine Belt-P/N 1300
Auto tensioner with spring loaded idler.
No adjustment required.
Manual adjustment. Refer to illustration below.
Engine to Mower Deck Belt-P/N 17423
Auto tensioner with spring loaded idler.
No adjustment required.
Idler Weldment
44" Deck
50" Deck
"L" Rod
3/4"
(44"/50" Serpentine)
34
Idler Shock
Mount
Tighten or Loosen
Hex Nut to achieve
this dimension
Hex Nut
