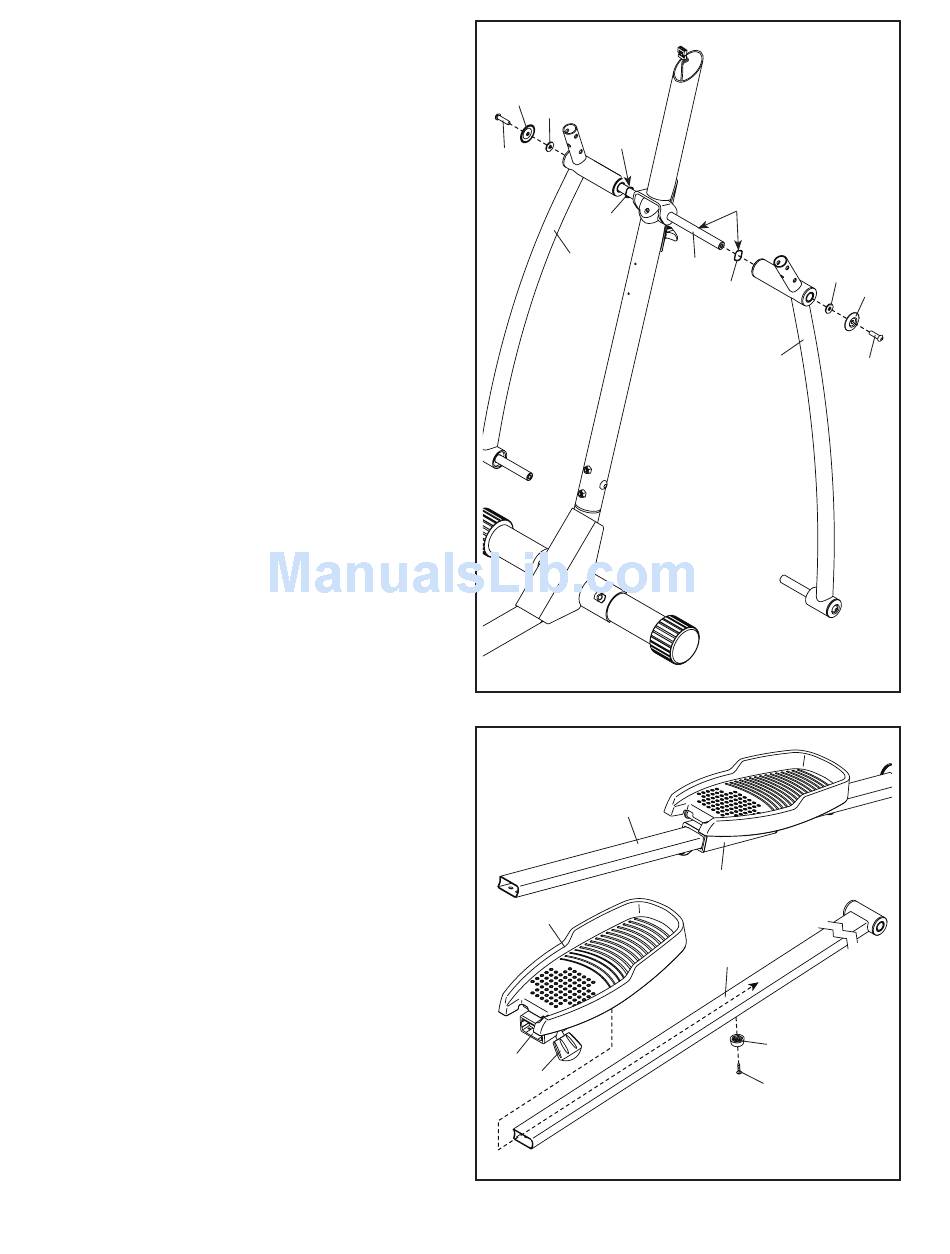

9. Identify the Left Upper Body Leg (74) and the

Right Upper Body Leg (94).

Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to each side of the Axle (80) and to two Wave
Washers (81).
Next, slide the two Wave Washers (81) and the
Upper Body Legs (74, 94) onto the Axle (80);
make sure that the Upper Body Legs are on
the correct sides.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
each end of the Axle (80) at the same time.

10. Identify the Right Pedal Carriage (64), which is

attached to one of the Pedals (67). In addition,
identify the Right Pedal Leg (71).
Loosen the Pedal Knob (70) on the right side of
the Right Pedal Carriage (64), slide the Right
Pedal Carriage as far as possible onto the
Right Pedal Leg (71), and then tighten the
Pedal Knob.
Then, attach a Small Bumper (69) to the under-
side of the Right Pedal Leg (71) with an M4 x
16mm Screw (47).
Repeat this step with the Left Pedal Carriage
(65), the Left Pedal Leg (95), and the other
Small Bumper (not shown).
9
90
54
Grease
34
81
74
10
95
67
64
70
10
Grease
80
54
81 90
94
34
65
71
69
47
