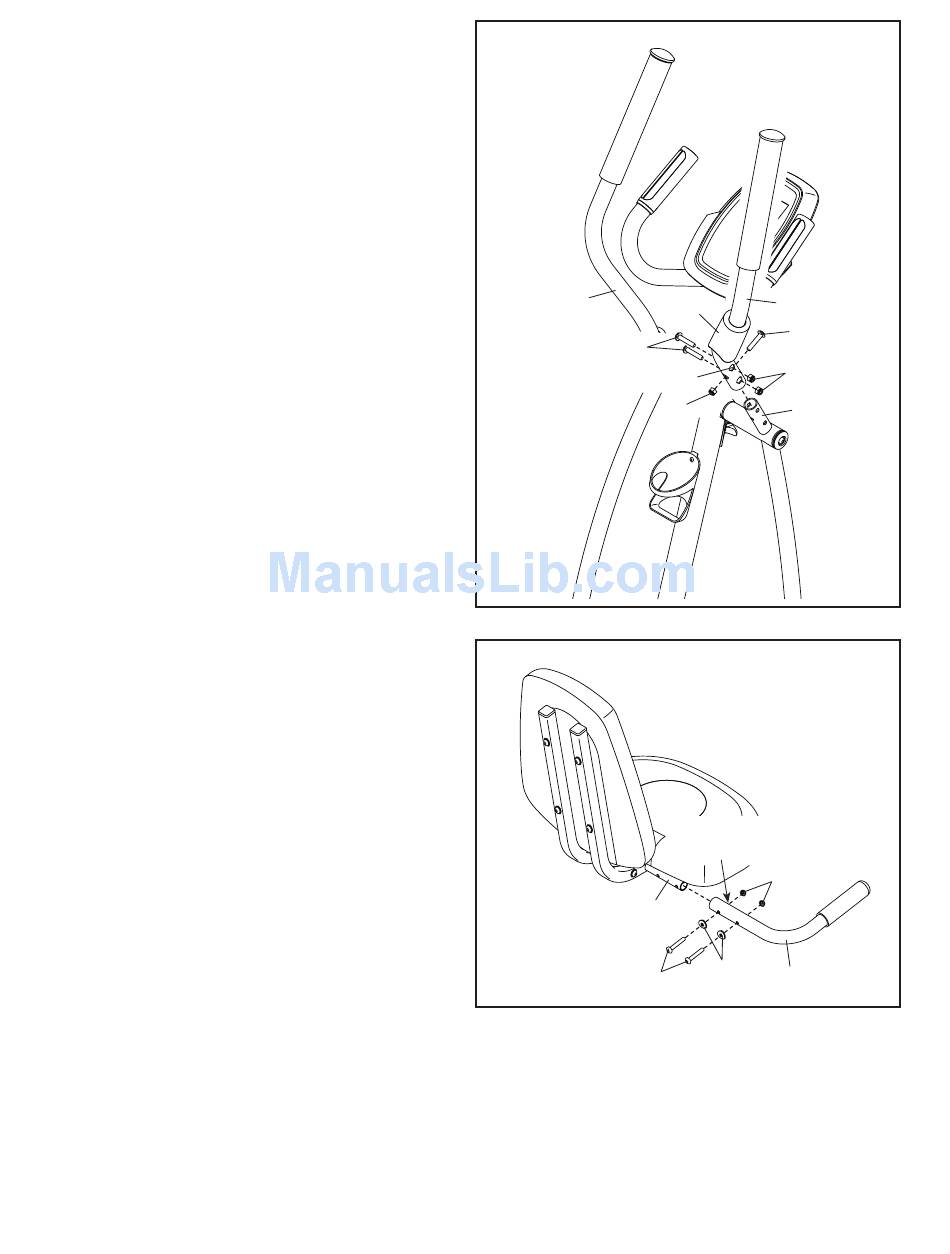

18. Identify the Right Upper Body Arm (88).
Orient an Upper Body Arm Cover (82) as shown,
and slide it upward onto the Right Upper Body
Arm (88).
Attach the Right Upper Body Arm (88) to the
Right Upper Body Leg (94) with three M8 x
40mm Bolts (83) and three M8 Locknuts (10);
make sure that the Locknuts are inside the
hexagonal holes.
Then, slide the Upper Body Arm Cover (82)
downward onto the Right Upper Body Leg (94).
Assemble the Left Upper Body Arm (89) in
the same way.
19. Attach a Seat Handle (59) to the Right Seat
Bracket (15) with two M6 x 30mm Bolts (49), two
M6 Curved Washers (25), and two M6 Locknuts
(51); make sure that the Locknuts are in the
hexagonal holes.
Attach the other Seat Handle (not shown) in
the same way.
18
89
83
Hexagonal Holes
19
15
49
14
88
82
83
10
10
94
Hexagonal
Holes
51
25
59
