Front Panel

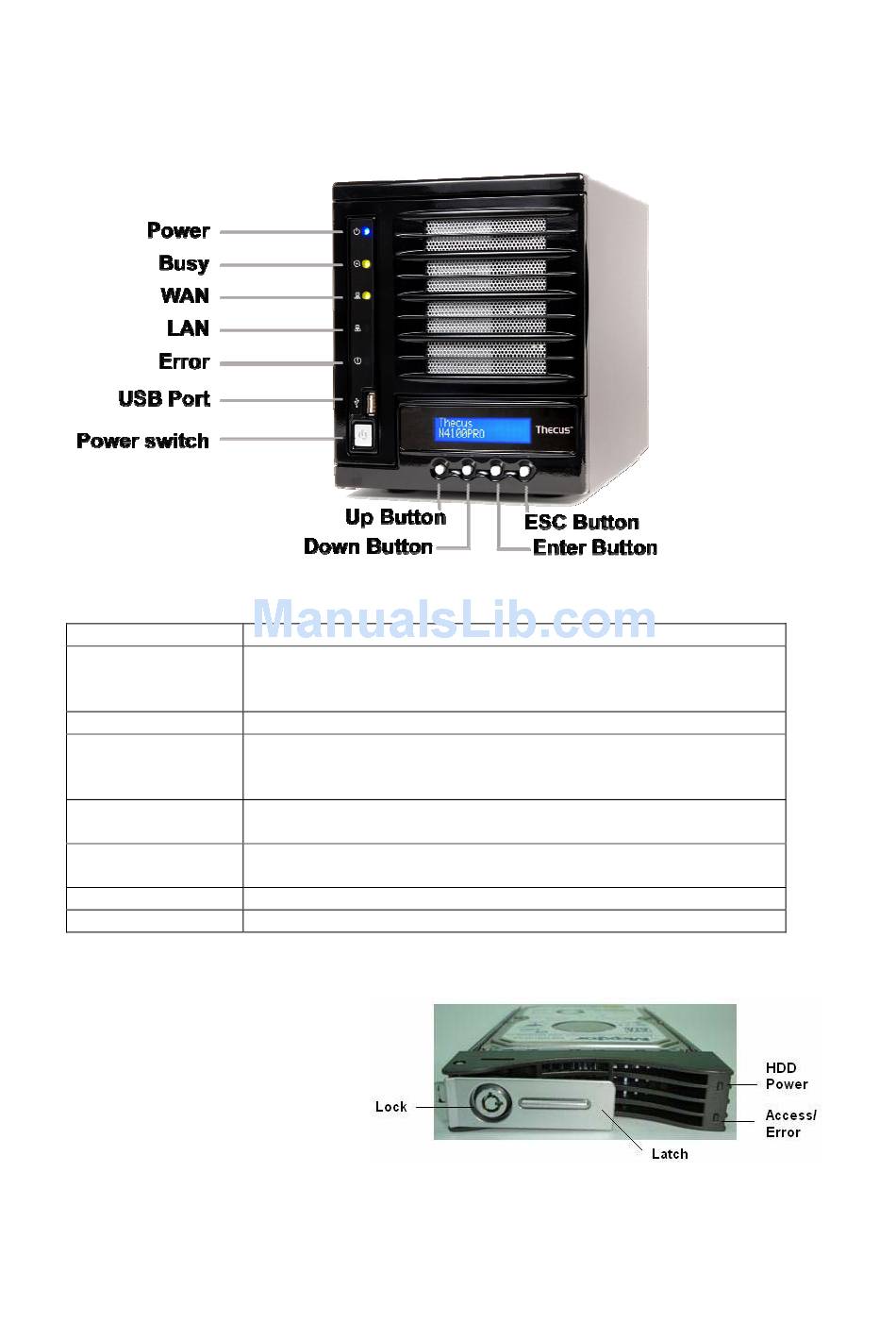

The N4100PRO's front panel displays the unit's array of status LED's and is also
where you'll find the power buttons. See the table below for a detailed explanation
of each:
Item
HDD Trays
Power LED
Busy LED
WAN LED
LAN LED
Error LED
Power Button

Hard Disk Tray

The N4100PRO's hard disk
trays each have a lock, a latch,
and two indicators.
Description
•
There are four hard disk drive (HDD) trays. Each tray supports
a 3.5-inch SATA HDD. The trays have locks for added physical
security and keys are provided with the package.
•
Solid blue: N4100PRO is powered on
•
Blinking orange: system startup or maintenance; data
inaccessible
•
Off: system startup complete; system operating normally
•
Solid green: network link
•
Blinking green: network activity
•
Solid green: network link
•
Blinking green: network activity
•
Solid red: system error detected
•
Power on/off N4100PRO
