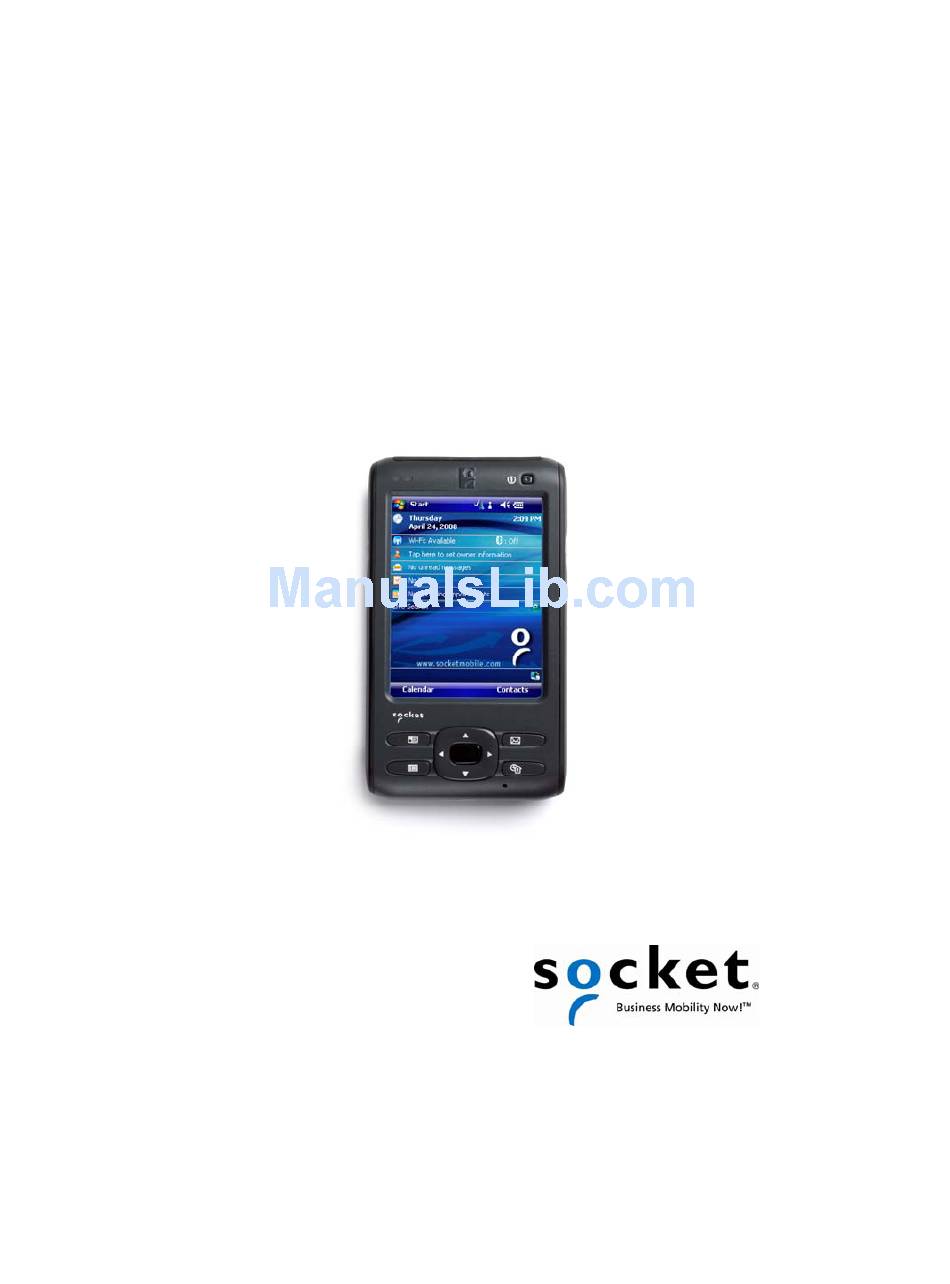

  • Page 1 ® SoMo Handheld Computer User’s Guide...

  • Page 2: Copyright Notice

    Socket Mobile, Inc. Bluetooth and the Bluetooth logos are registered trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket Mobile, Inc. Wi-Fi and the Wi-Fi logo is a registered trademark of the Wi-Fi Alliance. All other brand and product names are trademarks of their respective holders.

  • Page 3: Important Safety Instructions

    MPORTANT AFETY NSTRUCTIONS Please read and follow these safety instructions before using your device for the first time, and save them for future reference. • Keep away from extremely hot, cold or humid conditions. • Avoid using in dusty environments. •...

  • Page 4: Table Of Contents

    2 | GETTING STARTED Step 1: Install the Battery Step 2: Charge the Battery Step 3: Set up your SoMo 650 Step 4: Install ActiveSync on a Host PC Step 5: Connect the SoMo to the Computer 3 | USING THE SOMO 650...
  • Page 5 Step 4: Start Application Step 5: Scan or Read Data APPENDICES A | SPECIFICATIONS B | CARE AND MAINTENANCE C | RESETTING THE SOMO 650 D | UPGRADING THE ROM IMAGE E | HOLD SWITCH UTILITY F | TECHNICAL SUPPORT LIMITED WARRANTY...

  • Page 6: Introduction

    Pre-loaded with Socket device drivers and software utilities, the SoMo 650 can be deployed out of the box with a wide range of Socket data collection, network access or device connection peripherals to create a custom solution that meets your specific business requirements.

  • Page 7: Somo 650 Configurations

    8560-00020 YSTEM OMPATIBILITY EQUIREMENTS Before you start using your new SoMo 650, you should have a host computer ready for synchronization. • For Windows Vista, the Windows Mobile Device Center is required. Download it free from the Microsoft website at www.microsoft.com/windowsmobile/devicecenter.mspx...

  • Page 8: Additional Accessories

    Windows Vista Ultimate, Enterprise, Business, Home Premium, Home Basic or Server “Longhorn” DDITIONAL CCESSORIES A variety of accessories can be purchases separately online, as well as replacements for items included with the SoMo 650. For more information, visit: www.socketmobile.com/products/accessories/ RODUCT EGISTRATION Socket highly recommends that all customers register their products.

  • Page 9: Hardware Features

    3.5" TFT LCD touch screen Contacts shortcut button Calendar shortcut button Power button Besides the power button, you can also turn on the SoMo 650 by pressing any of the four application buttons (Calendar, messaging, Today or contacts shortcut button). CHAPTER 1: INTRODUCTION...
  • Page 10 SoMo 650 Status Indicator LEDs LED Behavior Meaning Wireless Flashing blue Bluetooth radio is on Status Flashing green Wi-Fi radio is on Flashing blue and green Bluetooth and Wi-Fi radios are on Battery Flashing red Alarm/Notification, including Low Status/ Battery Notification...
  • Page 11 Left 1. Hands-free (headset/microphone) connector (lift rubber cover to access) 2. Left programmable application button (launches Voice Notes by default) 3. Hold switch (disables screen and all buttons) 4. DC-in connector (lift rubber cover to access) Right 1. Right programmable application button (launches radio manager by default) Top (with card slot cover open) 1.

  • Page 12: Charging/Sync Cradle

    USB synchronization/host cable connector Soft reset button HARGING RADLE If your version of the SoMo 650 does not include a cradle, you can buy it separately at: www.socketmobile.com/products/accessories/ The cradle can act as a USB hub, featuring two USB ports that can be used to connect a keyboard, mouse or other USB device.

  • Page 13: About The Socket Software

    ™ Connect!Agent simplifies Bluetooth by automatically setting up and managing the wireless connection between the SoMo 650 and a Socket cordless bar code scanner, serial adapter or modem. ™ Wi-Fi Companion provides a rich graphical interface that makes it easy to monitor, set up and troubleshoot your Wi-Fi connection.
  • Page 14 Socket CF Serial I/O Card. For software updates, please visit: www.socketmobile.com/support/downloads/ Note: This User’s Guide does not cover how to use the Modem, Ethernet or Serial Utilities. For instructions, please refer to the manuals that came with your Socket peripherals.

  • Page 15: Getting Started

    1: I NSTALL THE ATTERY 1. Remove the battery cover of the SoMo 650. Press the release button on the bottom of the battery cover and use the thumb of your opposite hand to slide the battery cover off the SoMo.

  • Page 16: Step 2: Charge The Battery

    Alternatively, you can use the cradle, if included with your version of the SoMo 650. Plug the AC adapter into a suitable wall socket. NOTE: The SoMo 650 should be charged for 4 hours before first use. Afterwards, charge the device as needed according to its battery level.

  • Page 17: Step 3: Set Up Your Somo 650

    ET UP YOUR NOTE: Make sure the SoMo 650 is fully charged before proceeding. Slide the hold switch on the left side of your SoMo 650 up to the unlocked position. Hold switch IMPORTANT! SLIDE THE SWITCH UP, OR THE DEVICE WILL NOT...

  • Page 18: Step 4: Install Activesync On A Host Pc

    Center, which you can download free from the Microsoft website at: www.microsoft.com/windowsmobile/en- us/help/synchronize/device-center.mspx NOTE: Do not connect your SoMo 650 to your host computer until ActiveSync or the Windows Mobile Device Center has been installed. NOTE: For Windows 2000/XP, ActiveSync version 4.2 or greater is required to connect to Windows Mobile 5.0, and...

  • Page 19: Step 5: Connect The Somo To The Computer

    Connect with the Sync Cable Plug the USB sync cable into the connector on the bottom of your SoMo 650. Plug the other end of the USB sync cable into a suitable USB port on your computer. It is recommended that you also connect the AC adapter .
  • Page 20 Connect with the Cradle If your version of the SoMo 650 does not include a cradle, you can buy it separately at: www.socketmobile.com/products/accessories/ Insert the SoMo 650 into the cradle. Use the USB sync cable to connect the cradle to a host computer. It is recommended that...
  • Page 21 Calendar, Contacts and Tasks on your SoMo 650 have been updated. The next time you wish to use the Windows Mobile Device Center or ActiveSync, you just need to plug your SoMo 650 into your computer. The synchronization software will then open automatically and update your device.

  • Page 22: Using The Somo 650

    3 | U SING THE This chapter explains how to use your SoMo 650 through its buttons, the hold switch, stylus, Start menu, online Help, and the Radio Manager. UTTONS Your SoMo 650 has several buttons, as follows: • Power button •...

  • Page 23: Stylus

    USB K DDING A EYBOARD OUSE If you are using the SoMo 650-M, you can enter information by docking the SoMo in the cradle and using the cradle’s two USB ports to connect a keyboard and/or mouse. TART From the Start menu, you can access programs, settings and Help topics.

  • Page 24: Wireless Radio Manager

    Windows Mobile 5.0 1. Open the Socket Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen. 2. In the Radio Manager, a red “x” appears on the Bluetooth or Wi-Fi button when the radio is off.
  • Page 25 Windows Mobile 6 1. Open the Microsoft Wireless Manager. Press the button on the right side of the SoMo 650. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen. 2. In the Wireless Manager, an “x” appears next to the Wi-Fi or Bluetooth icon when the radio is off.

  • Page 26: Wi-Fi Companion

    Wi-Fi radio. DDITIONAL OCUMENTATION This chapter covers basic instructions for using Wi-Fi Companion on the SoMo 650. For detailed instructions, please refer to the User’s Guide available in the CD and online at: www.socketmobile.com/support/downloads/ SEFUL INKS Download software updates from: www.socketmobile.com/support/downloads/...

  • Page 27: Turning On The Wi-Fi Radio

    Wi-Fi radio. 1. Open the Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, you can t ap on the Wi-Fi and Bluetooth status line in the Today screen. 2. In the radio manager, an “x” will appear on the Wi-Fi button to indicate that the Wi-Fi radio is off.
  • Page 28 3. The Wi-Fi status icon will appear at the top of the screen. The icon varies based on your connection status. Tap on the icon to view the main screen of Wi-Fi Companion. To view the different versions of the icon, please refer to the chart on the next page.

  • Page 29: Main Screen Of Wi-Fi Companion

    CREEN OF OMPANION The screen content varies depending on your connection status. Wi-Fi status icon. Tap to acce ss this screen from outside the utility Your device properties. • Device name • IP address Valid IP address. • Packets sent and Tap to access email, the Internet, ping or received...

  • Page 30: Wi-Fi Finder

    INDER The Wi-Fi Finder displays a list of WLAN networks found in range. To access the Wi-Fi Finder, tap on the large tower icon in the bottom right corner of the m in screen of Wi-Fi Companion. Tap to filter th p to sort the list.

  • Page 31: Finding And Connecting To Awlan

    WLAN. If the WLAN uses 802.1x, WPA or WPA2, you need to install authentication certificate(s) before you can connect. Refer to the Wi-Fi Companion User’s Guide for instructions on the Socket certificate utility. 1. In the main screen of Wi-Fi Companion, tap on the tower icon, or tap Tools | Wi-Fi Finder.
  • Page 32 3. If Wi-Fi Finder cannot find your WLAN because it s SSID (network name) is hidden, tap New at the bottom of the screen. A wizard will launch to help you create a profile for your network. Complete the wizard, entering the security s ettings obtained from your network administrato 4.
  • Page 33 5. After a profile is saved, if the WLAN is in range, the SoM o will automatically try to connect to it. o connect to another network in the list, tap and hold your stylus on the WLAN. In the pop-up menu, tap Connect. CHAPTER 4: WI-FI COMPANION...

  • Page 34: Socketscan And Connect!Agent For Cordless Bar Code Scanners

    DDITIONAL OCUMENTATION This chapter covers basic instructions for using SocketScan and Connect!Agent on the SoMo 650 with a Socket cordless bar code scanner. For detailed instructions, please refer to the User’s Guide available in the CD and online at: www.socketmobile.com/support/downloads/datacollection/...

  • Page 35: Socketscan Icons

    Today screen. Icon Meaning No Socket data collection device detected. Ready to scan bar codes with the Cordless Hand Scanner Ready to scan bar codes with the Cordless Ring Scanner. CHAPTER 5: SOCKETSCAN AND CONNECT!AGENT...

  • Page 36: Step 1: Prepare The Scanning Hardware

    2: E NABLE ORDLESS CANNING 1. Tap Start | Settings | System tab | Socket Scanner Settings. 2. Tap on the CS tab at the bottom of the screen. Check Enable Cordless Scanner support. 3. Tap ok to save your changes.

  • Page 37: Step 3: Connect Scanner To Somo

    3: C ONNECT CANNER TO 1. If using the CRS, put on the scanner. Refer to the CRS man for instructions. 2. Turn on your bar code scanner. Refer to your scanner manua for in structions. . Tap Start | Programs | SocketScan folder | SocketScan. SocketScan will launch, running in the background.

  • Page 38: Step 4: Start Application

    4: S TART PPLICATION 1. Start the application that you want to enter data into (e.g., Excel Mobile). From the Today screen, tap Start | Programs and select your program. 2. Make sure a docu ment, spreadsheet or form is open in your program.

  • Page 39: Step 5: Scan Bar Codes

    5: S ODES 1. Press the trigger button to scan a bar code. Please refer to your scanner manual for the correct technique. When data is read, it should appear in your document. Depending on which scanner you have, it may also beep, or the LED may change colors to indicate a successful scan.

  • Page 40: Socketscan For Plug-In Scanners And Readers

    SocketScan software sends data from your Socket bar code scanner, RFID reader or magnetic stripe reader into any application running on the SoMo 650. This lets you use Socket data collection peripherals without having to program custom applications. The software comes pre-loaded on the SoMo 650.

  • Page 41: Step 1: Assign A Trigger Button

    In the drop-down menu, select SocketScan. Tap ok. 2: S TART OCKET 1. Tap Start | Programs | Socket Scan folder | SocketScan. 2. A SocketScan icon should appear at the bottom of the Today screen indicating that no data collection device has been inserted.

  • Page 42: Step 3: Insert The Card

    3: I NSERT THE 1. Open the slot cover at the top of the SoMo 650, then insert the card into the appropriate slot. Make sure the card is right side up. D o not insert the card upside-down or force the card in too hard.

  • Page 43: Step 4: Start Application

    4: S TART PPLICATION 1. Start the application that you want to enter data into (e.g., Excel Mobile). From the Today screen, tap Start | Programs and select your program. 2. Make sure a document, spreadsheet or form is open in your program.

  • Page 44: Step 5: Scan Or Read Data

    1. Scanning/RFID: Press the trigger button to scan a bar code or read an RFID tag. Please refer to your scanner manual for the correct technique. Mag Stripe: Swipe a magnetic stripe card through the slot, with the magnetic stripe facing the SoMo 650.
  • Page 45 2. When data is read, it should appear in your document. Depending on which scanner/reader you have, it may also beep, or the LED may change colors to indicate a successful scan. By default, the cursor automatically advances to the next cell or line, ready for the next scan/read.

  • Page 46: A Specifications

    White LED backlight Audio Headset Jack: 2.5mm, 4-ring type, support for both Voice & Stereo music 0.5W speaker Omni-directional microphone Connectors SoMo 650 DC-in (5V, 1A) USB synchronization/host cable connect Cradle Docking connector DC-in (5V, 3A) USB synchronization cable connector...

  • Page 47: Appendices A | Specifications

    Windows Mobile 5.0 for Pocke t PC Available Microsoft Windows Mobile 6 C lassic Note: If you have a SoMo 650 running Windows Mobile 5.0, an upgrade for Windows Mobile 6 is available. Pre-Loaded Software Program mable Home Screen Calc...

  • Page 48: B | Care And Maintenance

    NOTE: For important safety and usage instructions, please refer to page 3. eaning the SoMo: • With the device switched off, clean the SoMo 650 by wiping it with a soft, clean clot h that is lint-free and slightly moistened.

  • Page 49: C | Resetting The Somo 650

    Additionally, removing the battery and any external sources of ower from the SoMo 650 will result in the equivalent of a reset. The following Table summarizes the system impact under the odes of operation:...
  • Page 50 To perform a soft reset: Using the tip of your stylus, lightly press the So ft Reset button side the hole on the bottom of your SoMo 650 and then release. 50 | APPENDIX C: RESETTING THE SOMO 650...
  • Page 51 Keep pressing the two buttons until a splash screen appears with the Socket logo and then disappears. After the Socket Splash Screen disappears, release the two buttons and follow the onscreen instructions. APPENDIX C: RESETTING THE SOMO 650...
  • Page 52 FACTORY DEFAULTS. ALL DATA, RECORDS AND ENTRIES, EXCEPT THOSE STORED IN ROM, WILL BE ERASED NOTE: If you set a security password on the SoMo 650 and forget it, a clean reset will remove the password setting. o perform a clean reset: Press and hold the Left Programmable Application Button, the Calendar and Contacts shortcut buttons on your SoMo 650.
  • Page 53 SoMo 650 and then release. It is recommended that you hold the SoMo 650 in your left hand. Press the left programmable action button with your left thumb and the two shortcut buttons with your left index and middle finger.
  • Page 54 Keep pressing all three buttons until a splash screen appears with the Socket logo and then disappears. After the Socket Splash Screen disappears, release the three buttons and follow the onscreen instructions. 54 | APPENDIX C: RESETTING THE SOMO 650...

  • Page 55: D | Upgrading The Rom Image

    ActiveSync or the Windows Mobile Device Center! The directory SOMO650 containing the ROM image files must be moved to the SoMo 650 with a SD or CF memory card that is formatted in FAT12 or FAT16. Make sure your memory card has at least 40 MB of free space.
  • Page 56 SoMo 650. While holding the three buttons, use the stylus to quickly press the Reset button inside the hole on the bottom of your SoMo 650. Keep holding the Right programmable applicati button. Reset button Calendar shortcut button...
  • Page 57 5 seconds. IMPORTANT! Keep holding the Right programmable application b utton until the timer reaches 0 seconds! therwise the installation will be aborted. The SoMo 650 will begin to download and update the ROM image. APPENDIX D: UPGRADING THE ROM IMAGE...
  • Page 58 The Windows Welcome wizard will prompt you to set up Window s Mobile. Follow the instructions on your screen. After setting up Windows Mobile, the Today screen will appear, and the SoMo 650 is ready to use. 58 | APPENDIX D: UPGRADING THE ROM IMAGE...

  • Page 59: E | Hold Switch Utility

    PPENDIX WITCH TILITY The Hold Switch Utility enables you to change the default behavior of the hold switch located on the left side of the SoMo 650 handheld computer. By default, when the hold switch is activated, the SoMo screen turns off. NOTE: The Hold Switch Utility is included in SoMo ROM version 1.1.xx and later.
  • Page 60 2. Use the utility to c onfigure your settings. • Leave screen enabled: Select to keep the screen on when the hold switch is activated. A dialog will report that the hold switch is activated. Tapping ok or deactivating the hold switch will close the dialog. NOTE: When the SoMo is reset, this option is automatically re-enabled.
  • Page 61 • Disable auto-suspend: Select to keep the SoMo alive when the hold switch is activated, regardless of settings chosen in the Power applet. NOTE: Use this option with caution to avoid accidental depletion of the SoMo battery. • Launch program when switch is activated: Use the menu to select a program for the SoMo to automatically launch when the hold switch is activated (in the down position).

  • Page 62: F | Technical Support

    PPENDIX HNICAL UPPORT If you have trouble installing or using the SoMo 650, Socket has different support options to help you. Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics any time, day or night. http://support.socketmobile.com/EU_S1a.asp Online Requests: Register your product and submit a question to our Technical Support Team.

  • Page 63: Limited Warranty

    Socket may, at its option, replace or repair the product with new or reconditioned parts and the returned product becomes Socket's property. Socket warrants the repaired or replaced products to be free...

  • Page 64: Disclaimer

    LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT TO THE EXTENT REQUIRED BY LAW, SOCKET DOES NOT ASSUME ANY PRODUCT LIABILITY ARISING OUT OF, OR IN CONNECTION WITH, THE APPLICATION OR USE OF ANY PRODUCT OR APPLICATION DESCRI...
  • Page 65 (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt. Any replacement SOFTWARE will be warranted for the remainder of the original warranty period or 30 days, whichever is longer.
  • Page 66 Government ‘ s rights to the SOFTWARE are as provided in cl ause 52.227- 19 of the FAR CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State o California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, remainder of this License shall continue in full force and effect.

  • Page 67: Regulatory Compliance

    EGULATORY OMPLIANCE FCC: Part 15, Class B Industry Canada CE: EN Anatel NOM, COFETEL RoHS and WEEE compliant Electrical Safety EN60950, UL, CUL EMI/RFI Wi-Fi Alliance Certification Bluetooth Certification (BQB test), Bluetooth QD ID B012762 USB IF Test Microsoft Windows Mobile 5.0, 6 Logo Test Certification EU/International: EN301 489-1, -17 EN61000-4-2: 1995, ESD ±...

  • Page 68: Industry Canada Statement

    For body worn operation, this device has been tested and meets the FCC RF exposure guidelines when used with the Socket accessories supplied or designated for this product. Use of oth accessories may not ensure compliance with FCC RF exposure guidelines."...

  • Page 69: European Union Notice

    INSTRUCTIONS FOR SATISFYING RF EXPOSURE COMPLIA NCE. TO MAINTAIN COMPLIANCE WITH IC RF EXPOSURE COMPLIANCE REQUIREMENTS, PLEASE FO LLOW OPERATION INSTRUCTIONS AS DOCUMENTED IN THIS MANUAL. European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), t he EMC Directive (89/336/EEC) and the ow Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
  • Page 70 2/2009 Printed in U.S.A.
