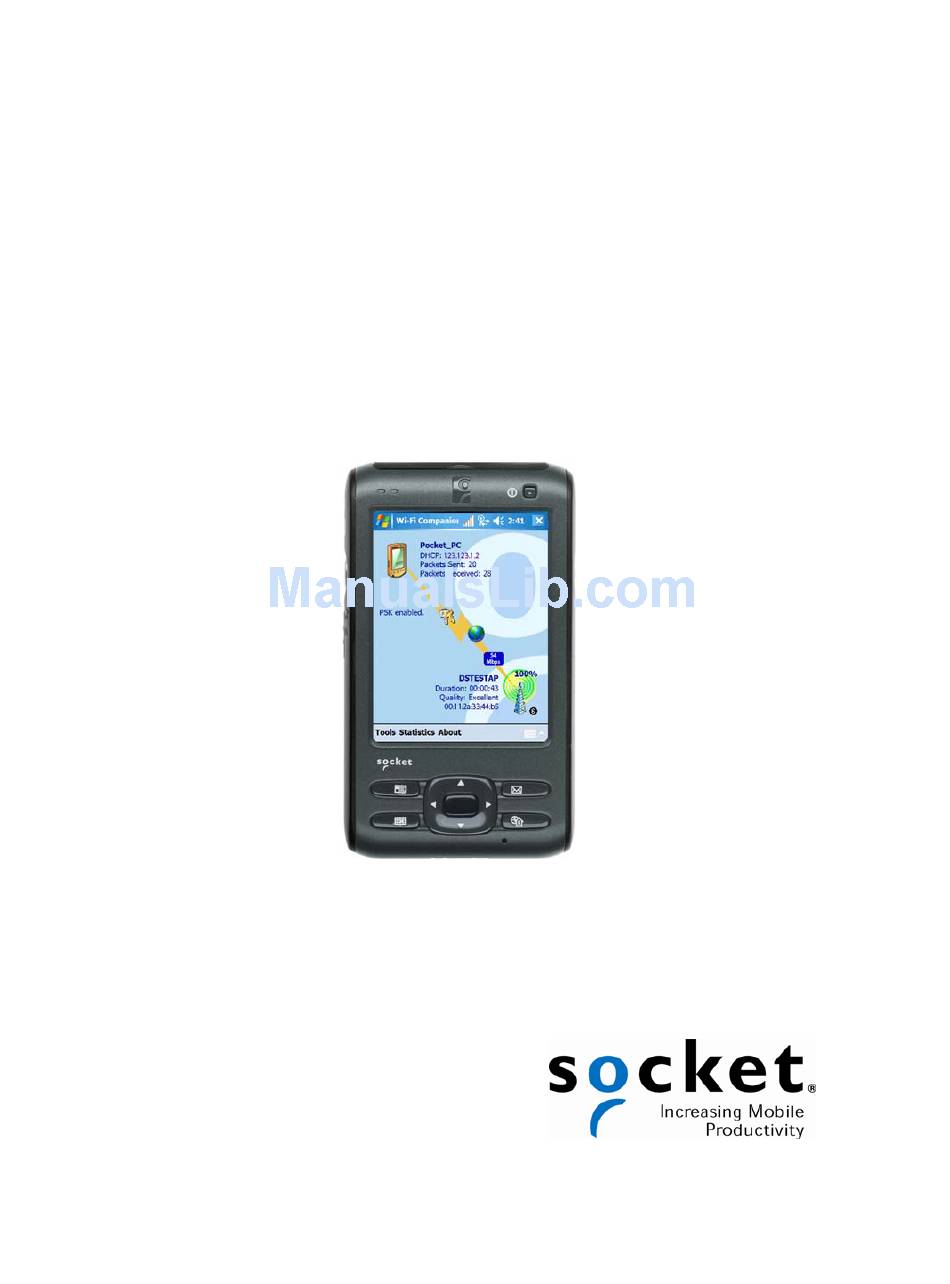

  • Page 1 ® Wi-Fi Companion ™ For the SoMo 650 Mobile Computer User’s Guide...

  • Page 2: Copyright Notice

    Socket, the Socket logo, Wi-Fi Companion, SoMo and Battery Friendly are registered trademarks or trademarks of Socket Communications, Inc. DBA Socket Mobile, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance. All other brand and product names are trademarks of their respective holders.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS OPYRIGHT OTICE 1 | I NTRODUCTION ONNECT ANAGE RODUCT EGISTRATION SEFUL INKS CREEN OF OMPANION TATUS INDER 2 | O WEP-E PEN OR NABLED ETWORKS STEP 1: T URN ON ADIO STEP 2: F WLAN IND AND ONNECT TO A WLAN P REATING A...

  • Page 4: Introduction

    Wi-Fi radio. RODUCT EGISTRATION Socket highly recommends that all customers register their Socket products. Registered users receive the following benefits: • Priority for technical support • Special offers for future products and product upgrades •...

  • Page 5: Main Screen Of W I -F I Companion

    CREEN OF OMPANION The screen content varies depending on your connection status. Wi-Fi status icon. Tap to access this screen from outside the utility. Your device properties. • Device name • IP address Internet ready. Tap to access email, • Packets sent and the Internet, ping or received trace route.

  • Page 6: W I -F I Finder

    INDER The Wi-Fi Finder displays a list of WLAN networks found in range. To access the Wi-Fi Finder, tap on the large tower icon in the bottom right corner of the main screen of Wi-Fi Companion. Tap to filter the list by type.

  • Page 7: Open Or Wep-Enabled Networks

    2 | O WEP-E PEN OR NABLED ETWORKS This section covers how to use Wi-Fi Companion to find, configure and connect your SoMo to a WLAN (wireless local area network) running an open system or using WEP (Wired Equivalent Privacy) encryption. For help using the software, tap Start | Help.

  • Page 8: Step 1: Turn On W I -F I Radio

    Wi-Fi Companion automatically launches after you turn on the Wi-Fi radio. 1. Open the Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, you can tap on the Wi-Fi and Bluetooth status line in the Today screen.

  • Page 9: Step 2: Find And Connect To Awlan

    STEP 2: F WLAN IND AND ONNECT TO A 1. In the main screen of Wi-Fi Companion, tap on the large tower icon in the bottom right corner or tap Tools | Wi-Fi Finder. 2. Wi-Fi Finder will list WLANs detected in range. Tap on any WLAN to view more properties.

  • Page 10: Creating Awlan Profile For An Open System

    If your WLAN does not have a profile (no folder icon is shown), tap and hold your stylus on the WLAN in the list, then tap Get Connected to create a profile for the selected SSID. WLAN P REATING A ROFILE FOR AN YSTEM After you tap New or Get Connected in Wi-Fi Finder, you will be directed to a wizard to create...

  • Page 11: Creating Awlan Profile For Awep-Enabled Network

    WLAN P WEP-E REATING A ROFILE FOR A NABLED ETWORK After you tap New or Get Connected in Wi-Fi Finder, you will be directed to a wizard to create a WLAN profile. Ask your network administrator for the necessary settings. Make sure your WEP key has the correct length.

  • Page 12: Automatic Connection

    STEP 3: C ONNECT UTOMATICALLY TO ETWORK 1. After you enter the settings and tap Finish, the SoMo will automatically try to connect. You may see the Wi-Fi status icon at the top of your screen change from “networks available” to “networks out of range but configured.”...

  • Page 13: Wpa, Wpa2 Or 802.1 X Networks

    3 | WPA, WPA2 802.1 ETWORKS This section covers how to use Wi-Fi Companion to configure and connect your SoMo to a WLAN running WPA (Wi-Fi Protected Access), WPA-PSK (WPA-Pre- Shared Key), WPA2, WPA2-PSK or 802.1x. Wi-Fi Companion supports networks using TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) data confidentiality protocol as well as PEAP (Protected Extensible Authentication Protocol) or...

  • Page 14: Step 1: Prepare Network Information

    REPARE ETWORK NFORMATION Verify Network Compatibility The SoMo 650 can only connect to WPA, WPA2 and 802.1x networks that satisfy the following requirements: • Windows Internet Information Service (IIS) • Windows Internet Authentication Service (IAS) • Windows Certification Authority (CA) with automatic approval and correct Pocket PC certificate format (via MS certificate template) •...

  • Page 15: Step 2: Install Authentication Certificate ( S )

    STEP 2: I NSTALL UTHENTICATION ERTIFICATE If your network uses PEAP authentication, you need to install only a root certificate. If your network uses EAP-TLS authentication, you need to install both a root and a personal certificate. Install a Root Certificate 1.
  • Page 16 Install a Personal Certificate Note: The Socket Personal Certificate Enrollment utility only works if the Certificate Authority software running in your corporate network is configured to “automatically” approve the enroll request. 1. To install a personal certificate, start Wi-Fi Companion.

  • Page 17: Step 3: Turn On W I -F I Radio

    Wi-Fi Companion automatically launches after you turn on the Wi-Fi radio. 1. Open the Radio Manager. Press the button on the right side of the SoMo 650. Alternatively, you can tap on the Wi-Fi and Bluetooth status line in the Today screen.

  • Page 18: Step 4: Find Awlan And Create A Profile

    STEP 4: F WLAN IND A REATE A ROFILE 1. In the main screen of Wi-Fi Companion, tap on the large tower icon in the bottom right corner or tap Tools | Wi-Fi Finder. 2. Wi-Fi Finder will list WLANs detected in range. Tap on any WLAN to view more properties.

  • Page 19: Creating Awlan Profile For Wpa, Wpa-Psk

    If your WLAN does not have a profile (no folder icon is shown), tap and hold your stylus on the WLAN in the list, then tap Get Connected to create a profile for the selected SSID. WLAN P WPA, WPA-PSK, WPA2 WPA2-PSK REATING A ROFILE FOR...

  • Page 20: Creating Awlan Profile For 802.1

    3. In the next screen, tap • Use IEEE 802.1x network access control: Check. • EAP Type: Select the type of EAP authentication used by your network, either PEAP or Smart Card or Certificate (EAP-TLS) When done, tap Finish. WLAN P 802.1 REATING A ROFILE FOR...

  • Page 21: Automatic Connection

    3. In the next screen, enter the following • Use IEEE 802.1x network access control: Check. • EAP Type: Select the type of EAP authentication used by your network, either PEAP or Smart Card or Certificate (EAP-TLS) When done, tap Finish. UTOMATIC ONNECTION 1.

  • Page 22: W I -F I Companion

    4 | W OMPANION This chapter explains how to use the different features of Wi-Fi Companion software. The utility allows you to do the following: • Turn wireless radio on/off • View IP addresses • Find networks • Enable power save •...

  • Page 23: Turn W I -F I Radio O N /Off

    (e.g., on an airplane). 1. Open the Radio Manager. Press the button on the right side of the SoMo 650. Other ways to access the Radio manager: • In the Today screen, tap on the Wi-Fi and Bluetooth status line.

  • Page 24: View Ip Addresses

    IP A DDRESSES IP address data is valid only if the SoMo is actively connected to a WLAN network. 1. Whenever the SoMo has connected to a WLAN, the main screen of Wi- Fi Companion will display the SoMo IP address, labeled as either “DHCP”...

  • Page 25: Find Networks

    ETWORKS 1. In the Wi-Fi Companion main screen, tap on the signal tower icon. Alternatively, tap Tools | Wi-Fi Finder. 2. The SoMo will begin searching for networks in range. 3. After the search, a list of discovered networks will be displayed.

  • Page 26: Enable Power Save

    NABLE OWER Wi-Fi Companion offers both automatic and manual power management for the WLAN radio. 1. In the main screen of Wi-Fi Companion, tap Tools | Power save. 2. The Power Save screen will appear. If desired, check Manage the radio power automatically for automatic power management.

  • Page 27: Install Personal Certificate For Eap-Tls

    NSTALL ERSONAL ERTIFICATE FOR Socket Wi-Fi Companion a quick link to the Cert Enroll utility, which helps you install a personal certificate, required to connect to 802.1x networks running EAP-TLS authentication. 1. In the main screen of Wi-Fi Companion, tap Tools | Certificates | Enroll.

  • Page 28: Manage Certificates

    ANAGE ERTIFICATES Windows Mobile includes a built-in utility for managing authentification certificates for WPA, WPA2, and 802.1x networks. Wi-Fi Companion provides quick links to the Microsoft certificate management utility. 1. In the main screen of Wi-Fi Companion, you can quickly access the Microsoft certificate management utility by either of two methods: •...

  • Page 29: Ping

    Use Ping to perform a ping to another address on the network. Ping is useful as a diagnostic tool to establish network connectivity to another network node. In the continuous ping mode, it can also be used as a site survey tool to determine the edge of WLAN range or to look for spots with no coverage (dead spots).
  • Page 30 4. The main Ping screen will reappear. Tap Start. 5. The ping test will begin. For each successful ping, the Roundtrip Time (RTT) will be shown. A line graph will display the series of RTTs for the last 24 pings. Maximum value currently displayed...

  • Page 31: Trace Route

    RACE OUTE The Trace Route tool traces a packet from the SoMo to an Internet host, showing each hop and how long it takes to reach the destination. This allows the user to figure out where the longest delays are occurring if performance is slow.
  • Page 32 5. The Trace Route test will begin. For each successful hop, the hop time, host name and IP address are shown. Tap Stop to stop the trace at any time, or let the trace run until it is complete. 6. When the trace is complete, the Statistics dialog box will report the best hop, worst hop, average hop, and number of timeouts.

  • Page 33: View Rates

    ATES Note: You can only view statistical rate information if the SoMo is actively connected to a WLAN network. 1. Whenever your device has connected to a WLAN, the main screen of Wi-Fi Companion will display the connection’s data rate. To view more comprehensive data rate information, do either of the following: •...

  • Page 34: View Graphs

    RAPHS You can only view the statistical graphs if the SoMo is actively connected to a WLAN network. 1. In the main screen of Wi-Fi Companion, tap Statistics | Graphs. 2. The Graphs screen will appear, displaying scrolling line graphs of the signal quality, rate, and sent and received data rates.

  • Page 35: View Tables

    ABLES You can only view the statistical tables if the SoMo is actively connected to a WLAN network. 1. In the main screen of Wi-Fi Companion, tap Statistics | Tables. 2. The Tables screen will appear, displaying a table of comprehensive information about the current connection.

  • Page 36: View Help Files

    ILES There are two ways to access Help files for Wi-Fi Companion. • To view a list of all the Help files, make sure Wi-Fi Companion is running and tap Start | Help. • To view a Help file for the screen of Wi-Fi Companion that is currently open, tap on the Help button .

  • Page 37: Appendixa Glossary

    PPENDIX LOSSARY 802.11 An evolving family of specifications for wireless LANs, developed by a working group of the Institute of Electrical and Electronics Engineers (IEEE). 802.11 standards use the CSMA/CA (carrier sense multiple access with collision avoidance) for path sharing. 802.11b WLAN standard often called Wi-Fi;...
  • Page 38 previous setup of networking equipment (most WLANs are infrastructure networks). AES (Advanced Encryption Standard) An encryption algorithm for securing sensitive but unclassified material by U.S. Government agencies and that is being increasingly used for commercial transactions in the private sector. Used in WPA2 security. AP (Access Point) A transceiver or radio component in a wireless LAN that acts as the transfer point between wired and wireless signal, and vice versa.
  • Page 39 networks using the 802.11b specification employ CCK to operate at data speeds of up to 11 Mbps in the radio-frequency band at 2.400 GHz to 2.4835 GHz. Networks using the 802.11g specification employ CCK when operating at 802.11b speeds. At higher speeds (up to a theoretical maximum of 54 Mbps), 802.11g WLANs use a more sophisticated modulation scheme called orthogonal frequency division multiplexing (OFDM).
  • Page 40 EIRP (Equivalent Isotropic Radiated Power) A measure of the strength of the signal radiated by an antenna. encryption The security technology which protects the privacy of information sent over a network. Encryption changes a data stream of bits from information to something that appears random." Anyone who intercepts the encrypted data gets a data stream that doesn't represent any information.
  • Page 41 MAC address The unique 40 bit physical address of each device's network interface card. Mbps (Megabytes per second) A measure of bandwidth or the total information flow over a given time, over a telecommunications medium. modulation The encoding of a carrier wave by varying its frequency, amplitude or other characteristic according to its input signal.
  • Page 42 private key A mathematically-derived code provided by a certificate authority. The private key is stored in the user's computer and is not accessible to the public. It can be combined with the public key to encrypt and decrypt messages Q, R, S QPSK (Quadrature Phase Shift Keying) A modulation scheme designed to allow increased sending capacity by using four phase values to encode two data bits per modulated signal.
  • Page 43 Trusted Root Authority A certificate issuer whose self-signed certificate (containing the issuer’s public key) is placed into the trusted root certification store of a host computer. The host trusts that the issuer has verified the identity of the certificate subject. UDP (User Datagram Protocol) A connectionless protocol that, like TCP, runs on top of IP networks.
  • Page 44 WPA-PSK (WPA-Pre-Shared Key) A security protocol designed for home and small office networks that cannot afford the cost and complexity of an 802.1x authentication server. Each user must enter a passphrase to access the network. The passphrase may be from eight to 63 ASCII characters or 64 hexadecimal digits (256 bits).

  • Page 45: Appendixb Troubleshooting

    PPENDIX ROUBLESHOOTING SYMPTOM: My device is not receiving a valid IP address. POSSIBLE REASONS SOLUTION The DHCP request was not Soft reset the mobile computer. successful in receiving an IP address The SSID may be incorrect. Check and re-enter the SSID. It is case-sensitive.

  • Page 46: Appendix C Technical Support

    Tap the Help button for information about the open screen. If you need further assistance with Wi-Fi Companion or the SoMo 650, Socket has two technical support resources to help you. Please note that support is available only in English.
  • Page 47 802.1x only: If you have trouble connecting to an 802.1x network, ask your network administrator for the event log and access point log, if supported. Send the log(s) to Socket technical support with your request for help.. C: T | 47...
  • Page 48 © Socket Communications, Inc. 3/2007 Printed in U.S.A.
