Socket SoMo 650 Release Notes And Installation Manual

Sp 1
Hide thumbs Also See for SoMo 650:

Advertisement

Quick Links

Download this manual See also: User Manual
®
SoMo
650
Service Pack 1
Release Notes and

Installation Guide

Version: 1.00.04 SP1 (build 0003)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SoMo 650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket SoMo 650

Summary of Contents for Socket SoMo 650

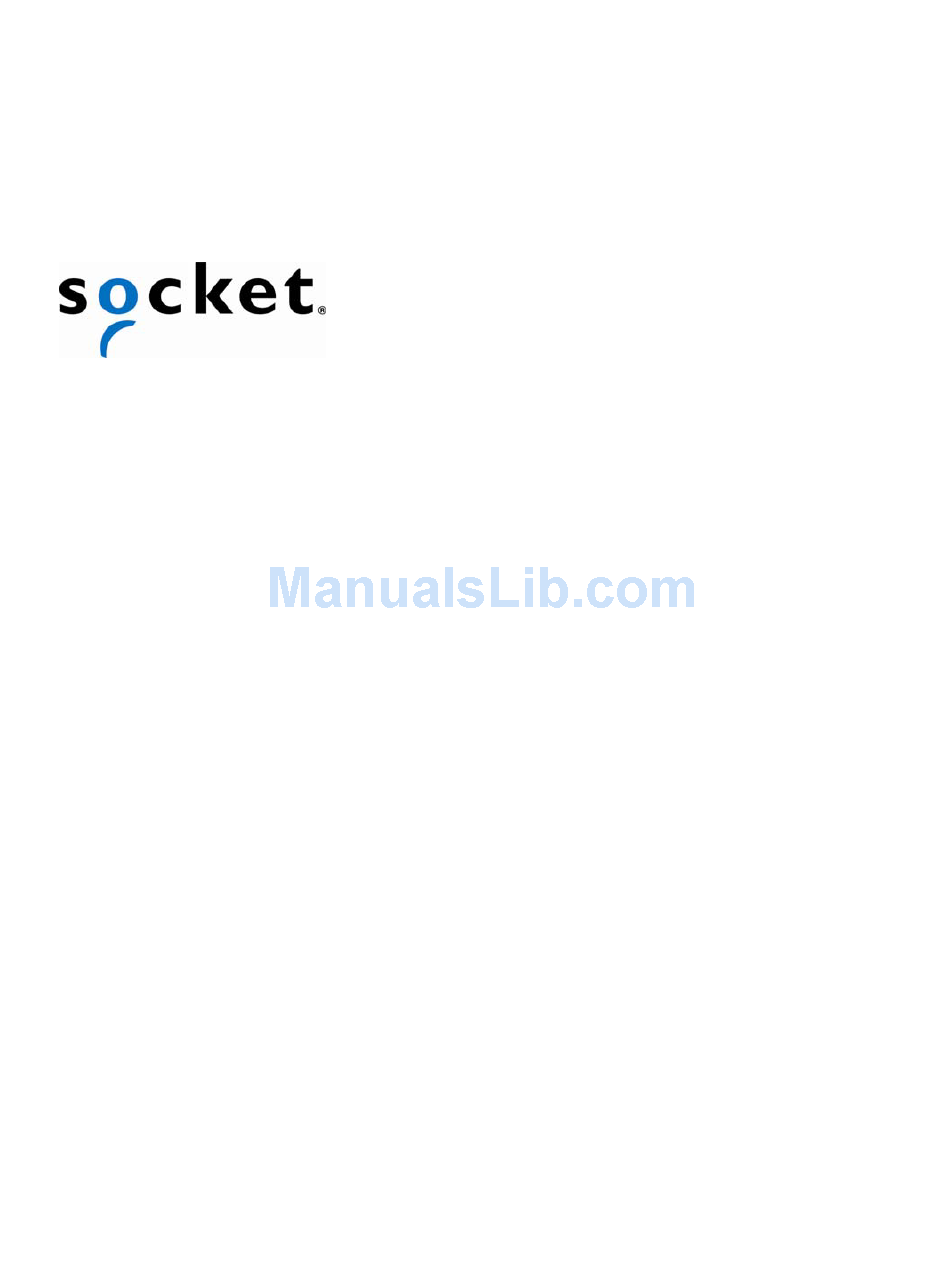

  • Page 1: Installation Guide

    ® SoMo Service Pack 1 Release Notes and Installation Guide Version: 1.00.04 SP1 (build 0003)
  • Page 2 Socket Mobile requests that you refrain from any applications of the SoMo that are not described in this manual. Please refrain from disassembling the card. Disassembly of this device will void the product warranty.

  • Page 3: Release Notes

    Release Notes Known Issues resolved: 1. The ability to charge the SoMo 650 though he ActiveSync port without having to have an ActiveSync connection. 2. Included support for Enfora CF GSM/GPRS modem. 3. Resolved power management issue when SoMo is docked in cradle overnight.
  • Page 4 Installation Guide: STEP 1: Back up Data on the Device IMPORTANT! The SP1 is only intended for the SoMo 650 currently running ROM v1.00.04. If your device does not have v1.00.04, you will first need to upgrade to this version.
  • Page 5 − Use ActiveSync to copy the file to the Temp folder on your SoMo 650 − Copy the file to a SD/CF memory card and insert into your SoMo 650. The SD/CF card must be formatted in FAT12 or FAT16. Most higher capacity cards are formatted by default in FAT32, which is not supported.
  • Page 6 4. Double-click on the Temp folder. 5. The Temp directory on the SoMo 650 will open. 6. On the host PC use My Computer or Windows Explorer to navigate to the location of the SoMo650SP1_build0003.cab.pks file. 7. Copy and paste the file into the Temp directory.
  • Page 7 STEP 3: Install the File 1. On the SoMo 650, open Pocket Explorer. 2. Navigate to the SoMo650SP1_build0003.cab.pks file, either in the Temp folder if you used ActiveSync, or on the memory card. 3. Double-tap on the file to launch the upgrade process.
  • Page 8 7. After installation, your SoMo will report that the updates were completed successfully. Tap ok.
  • Page 9 STEP 4: Verify the Upgrade Installation Prior to going the final step you may want to ensure that the upgrade has completed successfully. 1. On the SoMo, tap Start | Settings | System. 2. Tap System Info. 3. Under OS Version, check the ROM version. It should be 1.00.04 SP1 (build 0003)
  • Page 10 SETTINGS INCLUDING DATE AND TIME ARE RESTORED TO THEIR FACTORY DEFAULTS. ALL DATA, RECORDS AND ENTRIES, EXCEPT THOSE STORED IN ROM, WILL BE ERASED. NOTE: If you set a security password on the SoMo 650 and forget the password, a clean reset will remove the password setting.
  • Page 11 It is recommended that you hold the SoMo 650 in your left hand. Press the left programmable action button with your left thumb and the two shortcut buttons with your left index and middle finger. Hold the stylus in your right hand to press the reset button.
  • Page 12 Printed in U.S.A.
