Socket SoMo 650 User Manual

Hide thumbs Also See for SoMo 650:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
SoMo
650
™
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoMo 650 and is the answer not in the manual?

Questions and answers

Related Manuals for Socket SoMo 650

Summary of Contents for Socket SoMo 650

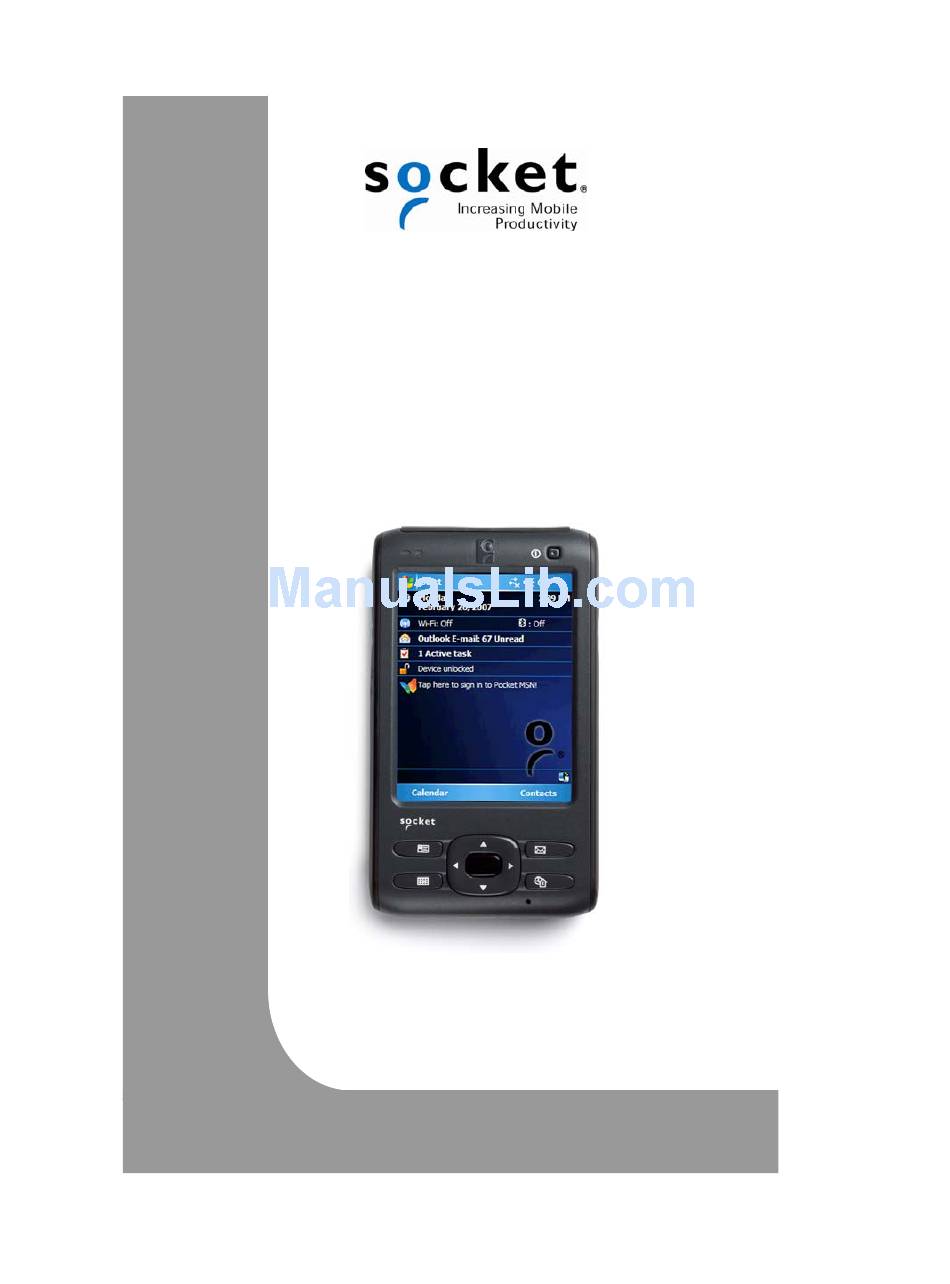

  • Page 1 SoMo ™ User’s Guide...
  • Page 2 Socket Communications, Inc. dba Socket Mobile, Inc. The Bluetooth wordmark is a registered trademark of the Bluetooth SIG, Inc. USA and any use by Socket Mobile, Inc. is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance. Any other product names are trademarks of their owners.
  • Page 3 SoMo 650 tour ............6 Getting Started ............. 9 Installing/Removing the battery........9 Charging your SoMo 650..........9 Setting up your SoMo 650 ........10 Installing Microsoft® ActiveSync® on your computer........10 Connecting your SoMo 650 to your computer ..........11 Using Microsoft ActiveSync for the first time ..........

  • Page 4: Important Safety Instructions

    • Do not remove SD/MMC or CF cards while they are being accessed. • Do not use this device in damp, wet or rainy conditions. Introduction Package contents Please check that the following items are included in the SoMo 650 package: • SoMo 650 •...

  • Page 5: System Requirements

    System requirements Before you start using your new SoMo 650, you should set up a host desktop/laptop computer for synchronization. If your host computer is running Windows Vista, it is ready to synchronize with the SoMo 650. ® If your host computer is running Windows 2000/XP, Microsoft ®...

  • Page 6: Product Registration

    Product registration Socket highly recommends that all customers register their Socket products. Registered users receive priority for technical support, special offers on product upgrades, and the latest new product information. Register online at: www.socketmobile.com/support/support/new/ SoMo 650 tour Front Blue/Green LED for Bluetooth®, Wi-Fi®...
  • Page 7 Back Battery cover Battery cover release Speaker Left Hands-free (headset/microphone) connector (lift rubber cover to access) Left programmable application button (launches Voice Notes by default) Hold switch DC-in connector (lift rubber cover to access)
  • Page 8 Right Right programmable application button (launches Radio Manager by default) Top (with rubber cover open) Stylus holder and stylus SD (Secure Digital)/SDIO/MMC (MultiMedia Card) slot (lift rubber cover to access) CF (CompactFlash) slot (lift rubber cover to access) Bottom USB synchronization/host cable connector Soft reset button...

  • Page 9: Getting Started

    SoMo 650. Plug the AC adapter into a suitable wall socket. NOTE: The SoMo 650 should be charged for 4 hours before first use. Afterwards, charge the device as needed according to its battery level. NOTE: While charging, the power LED will be red. When charging is complete, it will change to green.

  • Page 10: Setting Up Your Somo 650

    Setting up your SoMo 650 NOTE: Make sure your SoMo 650 is fully charged before proceeding. Disable the hold switch (found on the left side of your SoMo 650) by moving it up to the unlocked position. See “Left” on page 7 for the location of the hold switch.

  • Page 11: Connecting Your Somo 650 To Your Computer

    USB port NOTE: You can also charge your SoMo 650 in its cradle, if included with your version of the device. The cradle has a connector for the USB synchronization cable and DC-in at the back, as well as two USB ports, which can be used for...

  • Page 12: Using Microsoft Activesync For The First Time

    Using Microsoft ActiveSync for the first time NOTE: For computers running Windows Vista, the Windows Mobile Device Center will appear instead. When you connect your SoMo 650 to your computer for the first time, the 'New Partnership' setup wizard will automatically appear on your computer screen.

  • Page 13: Controlling The Somo 650

    6. Hold switch The hold switch can be used to put the SoMo 650 in rest mode, so any applications or wireless connections running on your device will remain active, but the buttons and screen will be disabled in order to prevent accidental input.

  • Page 14: Stylus

    Similar to left-clicking and dragging a computer mouse. NOTE: Alternatively, if you are using the SoMo 650, you can enter information by docking the SoMo in the cradle and using the cradle’s two USB ports to connect a keyboard and/or mouse.

  • Page 15: Resetting Your Somo 650

    To perform a soft reset: Using the tip of your stylus, lightly press the Reset button inside the hole on the bottom of your SoMo 650. For more information on the location of the Reset button, see “Bottom” on page 8.

  • Page 16: Upgrading The Firmware

    SoMo 650. • With the SoMo 650 already switched on, hold the right programmable application button, and while this button is still being pressed, use the stylus to press and release the reset button on the bottom of the device.

  • Page 17: Specifications

    White LED backlight Audio Headset Jack: 2.5mm, 4-ring type, support for both Voice & Stereo music Mono 0.5W speaker Omni-directional Connectors SoMo 650 DC-in (5V, 1A) USB synchronization/host cable connector Cradle Docking connector DC-in (5V, 3A) USB synchronization cable connector...
  • Page 18 PowerPoint Mobile IE Mobile Outlook Mobile .NET Compact Framework v2.0 Windows Media Player 10.2 Mobile ActiveSync Client v4.x Socket Mobile Wi-Fi Companion™ Socket Mobile SocketScan™ Socket Mobile Connect!Agent™ Socket Mobile Modem Utilities Socket Mobile Ethernet Utilities Socket Mobile Serial I/O Utilities...

  • Page 19: Led Indicators

    LED Indicators LED Behavior Meaning Battery Flashing red Alarm/Notification, including Status/ Low Battery Notification Alarm Running on battery power Solid red light when Charging connected to charger Solid green light when Fully charged connected to charger Wireless Flashing blue Bluetooth radio is turned on Status Flashing green Wi-Fi radio is turned on...

  • Page 20: Technical Support

    Technical Support Socket offers several levels of Customer Support in order to better serve our customers. Socket Online Support (SOS) SOS is a virtual technical support assistant that can help you with your product support questions or FAQs any time. SOS responds immediately to your inquiry, and no product registration is needed to use the system.

  • Page 21: Warranty

    Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center. The returned product must be accompanied by a return material authorization (RMA) number issued by Socket or by an authorized Socket Service Center.
  • Page 22 INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. EXCEPT TO THE EXTENT REQUIRED BY LAW, SOCKET DOES NOT ASSUME ANY PRODUCT LIABILITY ARISING OUT OF, OR IN CONNECTION WITH, THE APPLICATION OR USE OF ANY PRODUCT...
  • Page 23 SOFTWARE, even if SOCKET has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.
  • Page 24 GOVERNMENT END USERS. If this SOFTWARE is supplied to the U. S. Government, the SOFTWARE is classified as “restricted computer software” as defined in clause 52.227-19 of the FAR. The U. S. Government‘s rights to the SOFTWARE are as provided in clause 52.227-19 of the FAR.

  • Page 25: Regulatory Compliance

    Regulatory Compliance FCC: Part 15, Class B CE: EN RoHS and WEEE compliant Electrical Safety EN60950, UL, CUL EMI / RFI Wi-Fi Alliance Certification Bluetooth Certification (BQB test) USB IF Test Microsoft Windows Mobile 5.0 Logo Test Certification EU/International: EN301 489-1, -17 EN61000-4-2: 1995, ESD ±...

  • Page 26: Industry Canada Statement

    For body worn operation, this device has been tested and meets the FCC RF exposure guidelines when used with the Socket Mobile accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines."...
