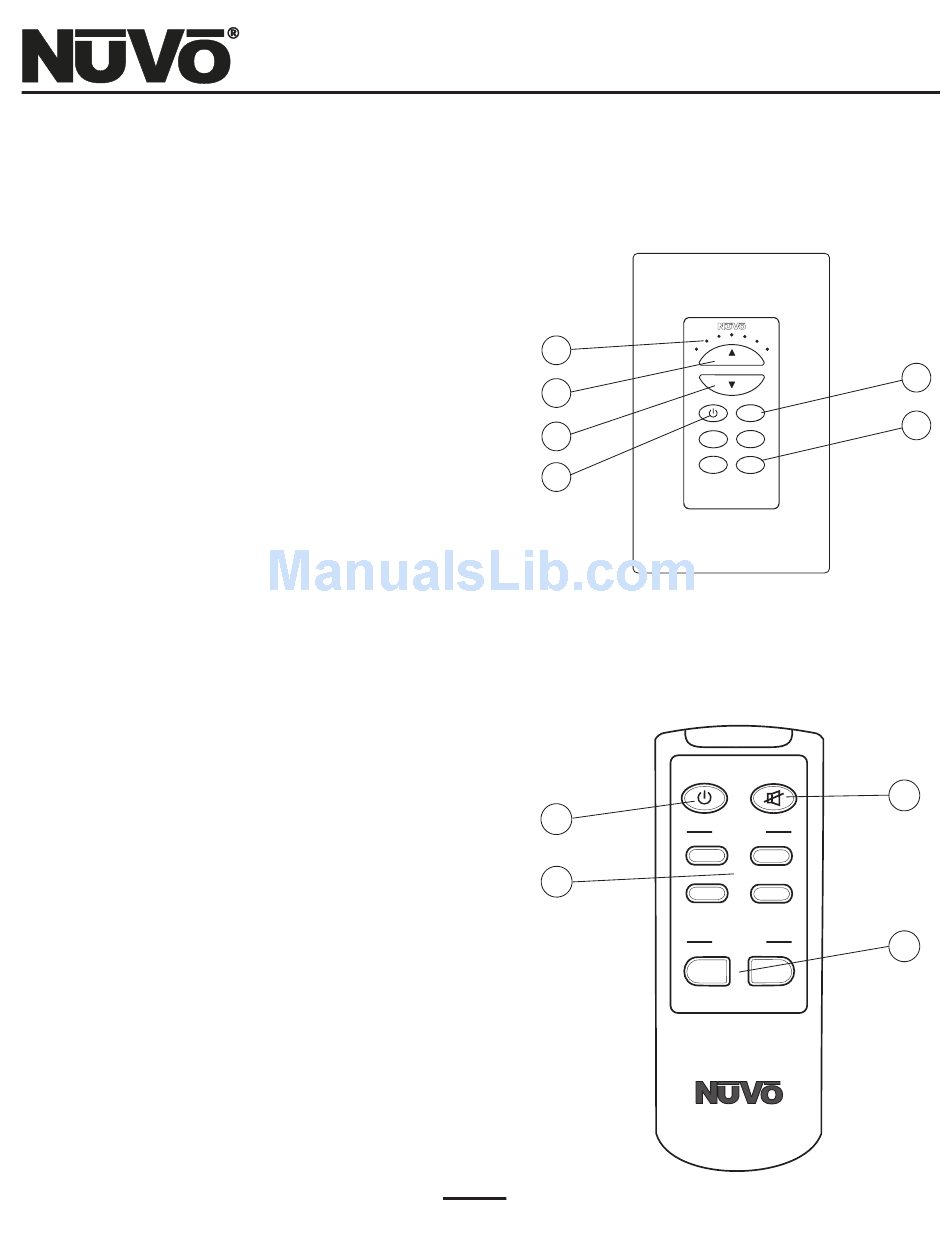

Keypad Features

1. Volume Level
2. Volume
3. IR Receiver
4. Mute
5. Power
6. Source Selection

Remote Control Features

1. Power
2. Source Selection
3. Mute
4. Volume
The level of the zone volume is indicated by
these LEDs (light emitting diodes).
Independent audio volume level for
each zone is controlled with this
button.
Each keypad has an IR (infrared)
receiver located under the volume
button for wireless control of the
audio source equipment.
The mute button temporarily silences
any audio playing in that keypad's
zone.
The power button turns that keypad's
zone on and off independently of the
other zones. Pressing and holding the
power button turns all the zones off
simultaneously.
The source buttons independently
select any of the four sources
connected to the Simplese amplifier.
The selected source button will remain lit.
This button turns the zone on and off and
powers all the zones off when it is pressed and
held.
These buttons correspond to the four source
buttons on the zone keypad.
Mutes the zone in the same way as the keypad
mute button.
Performs the same function as the
volume button on the zone keypads.
The volume level indicator on the
keypad will respond correspondingly
to the volume command from the
remote control.
