Nuvo Simplese Power Amplifier Brochure & Specs

Zones 1-4 Power Amplifier Outputs
Continuous Average Output Power 30W (15W x 2)
Two channels driven 30-20kHz @1% THD
Rated Distortion (1/2 power) 0.40%
Rated Impedance 6 Ohms
Damping Factor 50+
Frequency Response 20-20kHz
Preamplifier
Variable output 0-600mV
Fixed output 600mV
Impedance 600 Ohms
Source Inputs 1-4
Input Impedance 10K
Input Sensitivity for rated power 300mV RMS
Input Overload 3V RMS
Emitter Outputs
Source Outputs 4
Output Drive Current 50mA
Output Drive Voltage 5V
Source 1 and 2 38kHz/56kHz Selectable
Source 3 and 4 38kHz Fixed
www.nuvotechnologies.com
2395 Arbor Tech Drive, Hebron, KY 41048
Phone: 859-817-7200 Toll Free: 866-796-4904
D
Simplese
CM
100~240V 50~60Hz 85W C US
3033118
NuVo uses D Amplifier™
by Philips Semiconductors
System Specifications
System On 5V @ 50mA
External Mute 3-12V DC
Power Requirements
Power Supply 90-260VAC 50/60Hz
Power Consumption all channels 140W
driven to full-rated power
Power Consumption average 30W
operating conditions
Power Consumption no signal Less than 10W
Physical Specifications
Unit Size Millimeters 44H x 432W x 270D
Unit Size Inches 1.75H x 17W x 10.625D
Unit Weight Kilograms 2.95
Unit Weight Pounds 6.5
Keypad Size Millimeters 50H x 50W x 33.5D
NuVo reserves the right to change specifications without notice.
Simplese system package ships complete with the following:
• Simplese four-source, four-zone system
• 4 keypads (with trim plates)
• 36 pre-printed source buttons
• 1 LRC1 remote with batteries
• Allport® and Allport cable
• 4 IR emitters
• REM1U Rack Ear Mounts

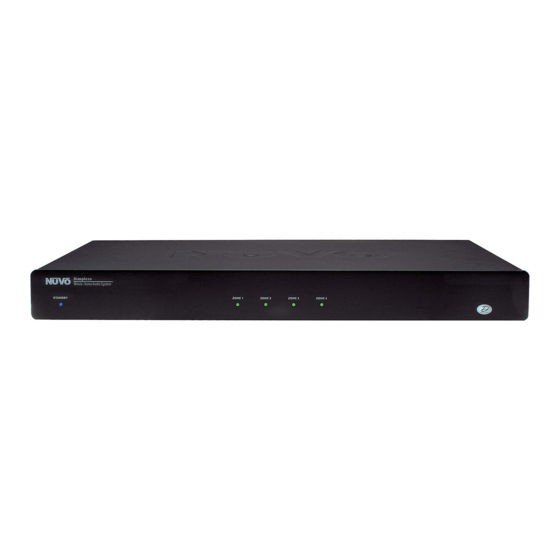

Simplese
®
Four-Source, Four-Zone Audio Distribution System
