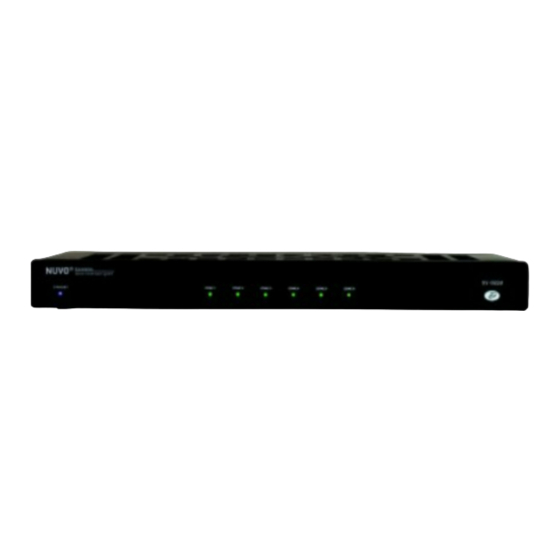

- Page 1 Essentia ® Six-Source, Six-Zone Audio Distribution System NV-E6GMS, NV-E6GXS Installation Guide...
-
Page 3: Important Safety Instructions
ENGLISH Danger Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably to noise induced hearing loss but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: DURATION PER DAY (HOURS) 8 6 4 3 2 1... -
Page 4: Importantes Instructions De Securite
FRENCH Danger L‘exposition a des niveaux eleves de bruit peut provoquer une perte permanente de l’audition, Chaque organisme humain reagit differemment quant a la perte de l’audition, mais quasiment tout le monde subit une diminution de I’acuite auditive lors d’une exposition suffisamment longue au bruit intense. -
Page 5: Table Of Contents
Setting up the T2G Tuners, M3 Audio Server and NuVoDock for iPod for use with NuVoNet VII. Connecting the IR Emitters NuVo T2G Tuner Direct Numeric Access VIII. Expanding Essentia to 16 Zones IX. Using the Essentia Configurator Software 1. Main Startup 2. -
Page 6: Introduction
Introduction Congratulations on the purchase of NuVo's new Essentia System. Essentia provides 40 startlingly clear watts of sound to up to 12 listening zones(12 zones with the addition of the expander). NuVo's Generation D amplification uses the latest in digital technology to provide peak performance in a system that sets a new standard for efficiency and energy conservation. -
Page 7: Back Panel Features
This input is designed to temporarily mute any audio playing through the system when the doorbell or phone rings. This works in conjunction with the NuVo NV-MI1 mute interface accessory. It also acts as a trigger for whole house paging through any third party paging device when set for this function in the Configurator Software. -
Page 8: Control Pad Features
Essentia Control Pad Source Indicator: This indicates the current audio source playing in that zone. Source names can be customized in the Configurator Software with a three-character designation. Wall Plate: Each Control Pad comes with white, ivory, almond, and black trim plates that offer a screwless and elegant, finished installation. -
Page 9: Rc1 Remote Control
NV-GRC1 Remote Control 1. Power: Each zone can be turned on and off, or all zones can be turned off with this button. Volume: This serves two functions. In normal operation mode, it is a volume control, but when you are using the menu features of the Control Pad, it allows scrolling up and down. -
Page 10: Installing The Essentia System In Your Home
“homerun” from each zone to the location of the Essentia amplifier and Audio Source equipment. Complete CAT5 Crimping Instructions The NuVo audio systems require CAT5, unshielded, twisted pair (UTP) for communication between the Control Pads and the main amplifier unit. Each end of the wire is terminated with an RJ45 connector. -
Page 11: Terminating The Speaker Wire
II. Terminating the Speaker Wire (Fig. 2) All NuVo Systems operate across a “homerun” wiring scheme using CAT5 for the zone's Control Pad communication and control, and a separate run of speaker wire for each zone. The Essentia operates differently in that its zone speaker wire termination is made at the Allport hub. -
Page 12: Connecting The Allport To The Essentia Amplifier
NuVo zone Control Pad) and variable (a signal that varies in level relative to the volume setting on the NuVo zone Control Pad) are both simultaneously active and require no external switch for use. -
Page 13: Connecting The Ir Emitters
SOURCE 3, NuVo T2G Tuner Direct Numeric Access (Fig. 7) The NuVo T2G Tuners have the ability for direct IR access to numeric station tuning. This can be done through the T2G remote control or using a third party remote control that has been taught the T2G IR codes. -
Page 14: Expanding Essentia To 16 Zones
Essentia G Expander FIXED TRIG ZONE ZONE Essentia G Main FIXED TRIG ZONE ZONE Audio Source AUDIO OUT AUDIO OUT USE ONLY NuVo USE ONLY NuVo NV-T2PAS NV-T2PAS TRIGGER TRIGGER POWERED ANTENNA SYSTEM POWERED ANTENNA SYSTEM ON=+12V ON=+12V AUDIO AUDIO OUTPUT... -
Page 15: Using The Essentia Configurator Software
IX. Using the Essentia Configurator Software The following section includes the optional NV-I8DLS IR Learning Station. This is available as a package from NuVo Technologies or any Authorized NuVo Distributor. The Configurator Software is a PC program designed to run with Windows 2000, XP, and XP Pro. - Page 16 Configurator is “Waiting for IR Communications. ” To record a new code, simply point the component's remote control at the IR receiver on the NuVo IR Learning Station Interface. The first time you enter a code, the Configurator determines if it is a “toggling function, ” which means that the remote actually sends two commands back-to-back.
- Page 17 Fig. 13 POWER CONNECT TO CONNECT TO 12VDC/0.4A CONCERTO D Concerto Learning Station Model NV-I8DLS PASSTHRU READY IR SENSOR When the remote code is entered, the IR Library Record window will go from yellow to green and indicate that the capture was successful, and it will then return to yellow.
-
Page 18: Defining Sources
2.4 IR Library Test (Fig. 16) An important feature of the Essentia Configurator is the ability to test each IR code as it is added to the IR Library. This insures that every code will work reliably. When a new code is added, while it is still highlighted, click on the test button, or double click on the highlighted code. -
Page 19: Macros
NuVoNet components which have the appropriate button functions pre-assigned. Even though the components are assigned, you must still set the NuVoNet source inputs on each of the components, see Setting NuVo Sources for use with NuvoNet, pg. 9 & 10. Fig. 19 4. Macros (Fig. 20) - Page 20 Fig. 20 4.1 Edit Macro Definition (Fig. 21) The Macro tab has a Source pull down menu that displays the six sources defined in their order 1-6. When a non-NuVoNet source is highlighted and selected, three separate definition windows appear on the right side of the screen. The left side of the screen is a representation of the Control Pad display.
-
Page 21: Zones
Fig. 22 4.2 Editing Codes in a Macro (Fig. 23) When in the Edit Macro Definition window, double-clicking on a macro step on the right side will open an “Edit Macro Code Settings” window. This allows you to change the delay time before the command is issued. - Page 22 NuVo NV-GRC1 remote control to operate the system. In some zones this is necessary when a third-party remote is often used to control a non–NuVo System source such as a TV. This would eliminate that remote control's commands from being received by the Control Pad and passed through to the source equipment.
- Page 23 Source Grouping: This allows for one zone to automatically listen to the same source as all other zones in the group. This is a very useful feature for a large open area where it is not practical for more than one source to be playing at one time.
-
Page 24: System Settings
5.2 Zones (updated) (Fig. 26) When the desired properties for each zone are set, click on OK. This will return you to the Zones tab. There you will see an updated list of the zones by the number they are assigned, as well as the specific parameters defined in the Zone Edit window. -
Page 25: Update System
6.3 24 Hour Time Display and Power Off Mode 24 Hour Time Display: By checking the 24 Hour Time Display box, the system will automatically go to a 24 hour clock on each of the zone Control Pads. Power Off Mode: The Essentia Configurator allows the option for three power off modes. - Page 26 Fig. 31a Please note that if multiple Control Pads are plugged in during the update process they will update themselves one at a time in succession beginning with zone one. Wait for the entire process to complete until the last zone turns off. Firmware Upgrade..
-
Page 27: Control Pad Setup
Windows Media Player and synced with Zone 14 the NuVo M3 Server or within an iPod can be added to the Favorites list. Potential members of this list can also include station presets for the NuVo T2G or other sources such as button. -
Page 28: Sources
Software, Fig. 36. Fig. 36 Sources Satellite NuVo M3 A NuVo M3 B Advanced Zone Control: Advanced Zone Control is designed for user access to temporary zone settings. Each of the zone parameters set in advanced zone control automatically reset when an All Off command is issued from a Control Pad, Fig. -
Page 29: Setup
Lock Zone: This temporarily locks the zone on the current source selection. It requires a four digit security code that must be set in the Settings Tab of the Configurator Software. The security code is entered on the Control Pad by using the up and down arrows to scroll to the first number and pressing OK. - Page 30 Any source selected in this menu will be This sets a default that automatically Source Group is a great NuVo feature for large, This prevents the global functions of all-...
-
Page 31: Source Settings
Control Pad. In this case, you would choose NuVo Remote Only area that is flooded with sunlight or receives interference from plasma displays, the best choice is... - Page 32 Date/Time: The Essentia has an internal clock that allows each Control Pad to display the current time. Within this menu you can easily set Hour, Minute 24 Hour Time Display: This is a simple on/off. When this menu item is turned on, the clock display on the Control Pads switches to 24 hour display.
-
Page 33: Essentia Accessories
XII. Essentia Accessories The NV-I8DLS IR Learning Station Interface 1. PASSTHRU: This LED (light emitting diode) remains lit when the Interface box is actively passing IR information through the system. 2. READY: When you are inputting IR codes into the Configurator using the Interface box, this LED will light when the system is ready to learn a new code. - Page 34 Capturing IR codes using the IR Learning Station Interface The Essentia Configurator Software is designed to store IR codes for audio equipment in an IR Library. When the codes are learned for a given piece of equipment, they are held in the library under that equipment's manufacturer name and model number. Once learned, any of the equipment in the library can be imported into a new Configuration.
-
Page 35: Nv-Mi1 Mute Interface Adaptor
Essentia System, which causes the system to mute momentarily. This is useful in allowing the telephone or doorbell to be heard when audio is playing in any of the zones. The NuVo NV-MI1 Mute Interface Module is designed to automatically mute any audio playing through the System’s speakers when the telephone or doorbell rings. -
Page 36: Nv-Lsi24 Local Source Interrupt
The other is labeled NV-E6GLSA. This is intended to react to the LSI24 accessory. It requires an RJ45 connection at the Control Pad end and the Brown and Brown Stripe pair as a voltage trigger. When the Control Pad is on, NuVo audio is allowed to pass to the speakers in the zone. -
Page 37: Nv-Lsa40 Local Source Amplifier
When connected to the Essentia Control Pad, the Essentia speaker output and the LSA40 share a common pair of speakers in a zone. The LSA40’s internal A/B switch allows NuVo audio when the zone Control Pad is turned on and local audio through the LSA40, when the zone Control Pad is turned off. -
Page 38: Nv-Lsa40Pd Power Distribution Hub
Source Amplifiers from one central location. The LSA40PD distributes the power over 16-AWG two conductor speaker wire to each of up to four individual LSA40 amplifiers. Connecting the LSA40 to the NuVo Control Pad and speakers is identical to the individual zone installation diagramed on page 33, Fig. -
Page 39: Nv-P2100 200-Watt Auxiliary Amplifier
NV-P2100 200-Watt Auxiliary Amplifier (Fig. 55) The P2100 is specifically designed for use with the NuVo Systems' lineouts. It can be used with either the fixed or variable lineouts available for zones 1 and 2 on the Essentia amplifier. The connection is made using either a 1/8”... -
Page 40: Specifications
Unit Weight Pounds Shipping Weight Kilograms 5V @ 20mA Shipping Weight Pounds 3.3-10V DC Keypad Size Millimeters Keypad Size Inches 57,600 NuVo reserves the right to change specifications without notice. NV-E6GXS Essentia Expander System · · · · · ·... -
Page 41: Troubleshooting
If the issue is a shorted CAT5, the symptom will display when that cable is connected to the system. A damaged MCU must be replaced by NuVo. Make sure the amplifier is turned on. Test that the POWER LED on the amplifier turns on when the Network Cable is unplugged. - Page 42 Essentia Main amplifier, a “board not found” error message appears on the computer screen. Probable Cause The NuVo IR output is not set at the best carrier frequency. An External light source is interfering with IR communication through the system.
- Page 44 NuVo Technologies LLC Hebron, Kentucky USA www.nuvotechnologies.com E6G 0818...
