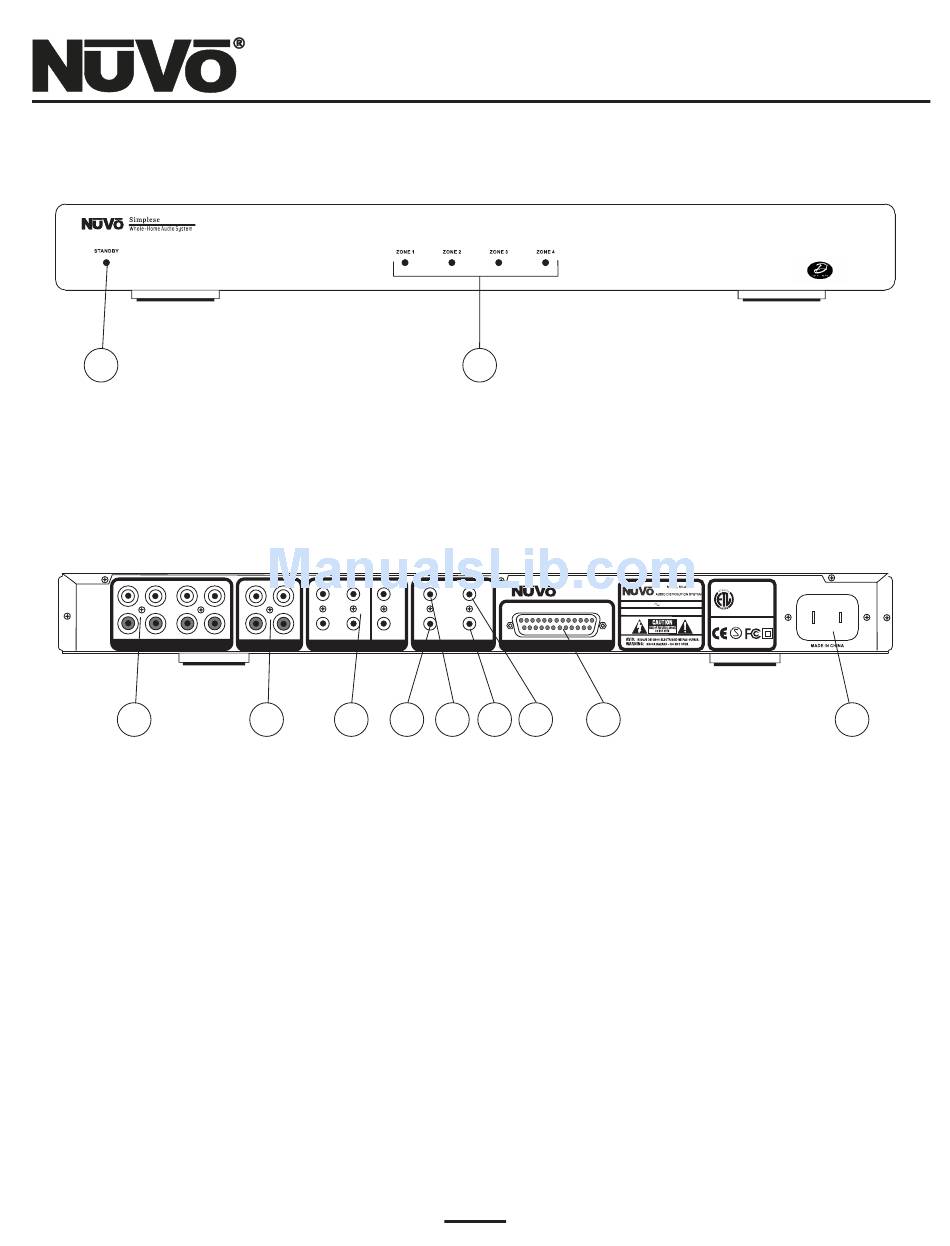

Front Panel Features
1. Stand-by LED -This LED (light emitting diode) indicates, when lit, that the Simplese amplifier is plugged into an AC
power source.
2. Zone LED - Each of these LEDs indicates, when lit, that its zone keypads are turned on.
2 3
1 4
L L
R R
SOURCE INPUT
1
Back Panel Features
1. Source Inputs
2. Zone 4 Lineouts
3. IR OUT
4. MUTE
5. STATUS
6. RS232
7. LINK
8. Allport Connection
9. AC
ZONE 4 38KHz 56KHz
3
1 1
L
R 2 4 2
NORMAL USE FOR SAT
FIXED VAR USE OR CABLE
LINE OUT IR OUT
3
2 4
Each of these stereo RCA inputs receives an audio signal from up to four independent audio
sources.
These fixed and variable lineouts are used for attaching additional amplification to the zone 4
audio outputs.
These outputs are designed to be used with the included IR (Infrared) emitters to transfer IR
function commands from the zone keypads to the appropriate audio source equipment; see IR
Outputs pg. 9.
This 3.5mm mono connection is designed to be used in conjunction with the NV-MI1 mute
interface; see Mute Input and the NV-MI1, pg. 13.
This 3.5mm mono connection provides a constant +5 volt output when a zone is turned on. This
can be used to trigger external equipment.
This is used for factory purposes only and has no system function relevance.
This 3.5mm mono output is used to expand the Simplese System from four to eight zones; see
Using the Link Jack to Create Eight Zones, pg. 12.
This 25-pin terminal is used in conjunction with the Allport cable to integrate the zone keypads
and speakers into the system; see Allport Termination and Installation, pg. 8.
This is used with the included AC power cable to provide electrical power to the system when
attached to an active AC power outlet.
