Zebex Z-2065 series User Manual

Handheld computer
Hide thumbs Also See for Z-2065 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Handheld Computer
Z-2065
User's Manual
series
RESET
ENT
ESC
1
abc
4
jkl
7
stu
ZEBEX INDUSTRIES INC.
WWW.ZEBEX.COM
( Version 3.00 )
SCAN
ENT
BS
F1
2
3
def
ghi
F2
5
6
mno
pqr
F3
8
9
yz
vwx
F4
0
@
SP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-2065 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zebex Z-2065 series

Summary of Contents for Zebex Z-2065 series

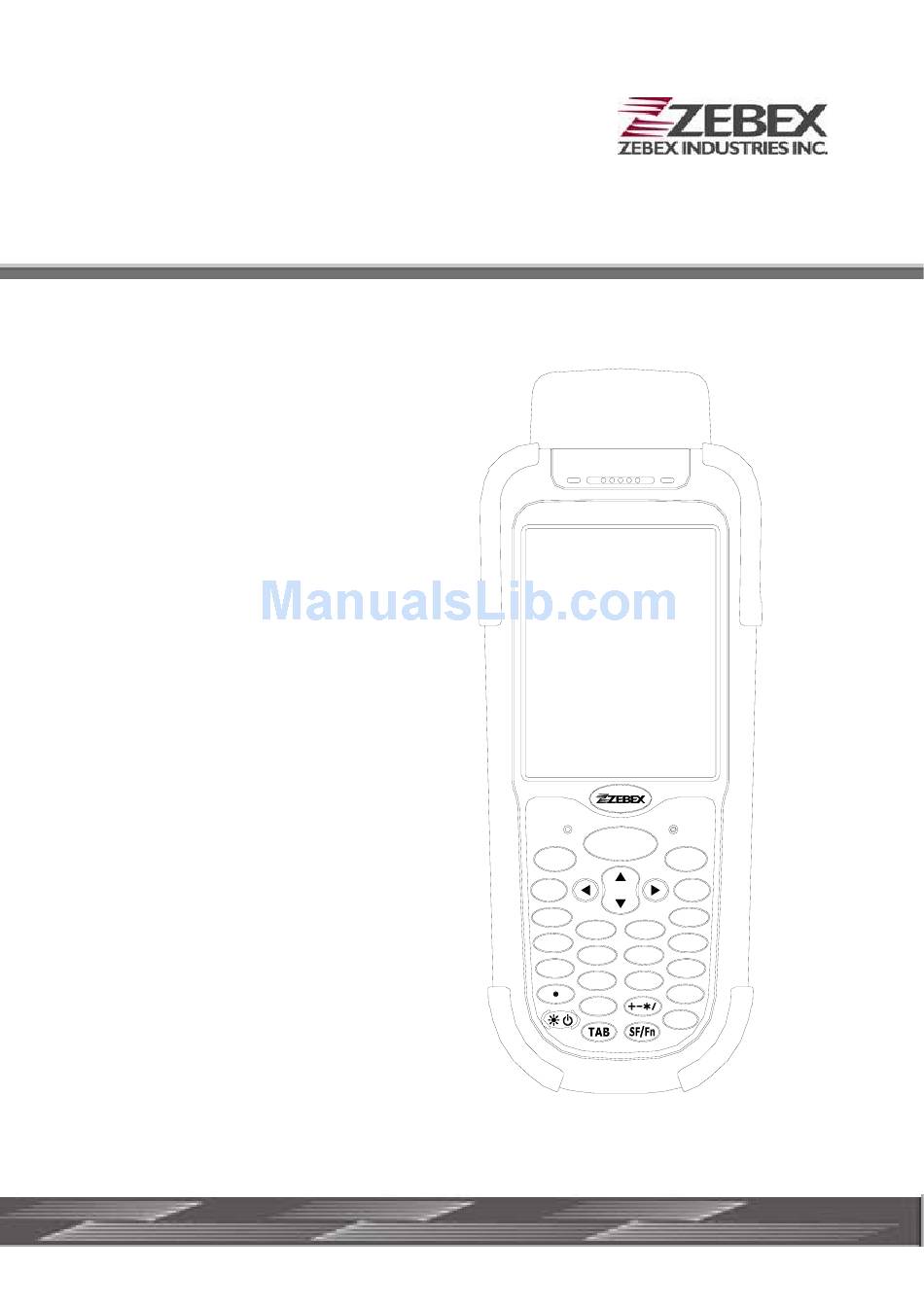

  • Page 1 Handheld Computer Z-2065 series ( Version 3.00 ) User’s Manual SCAN RESET ZEBEX INDUSTRIES INC. WWW.ZEBEX.COM...
