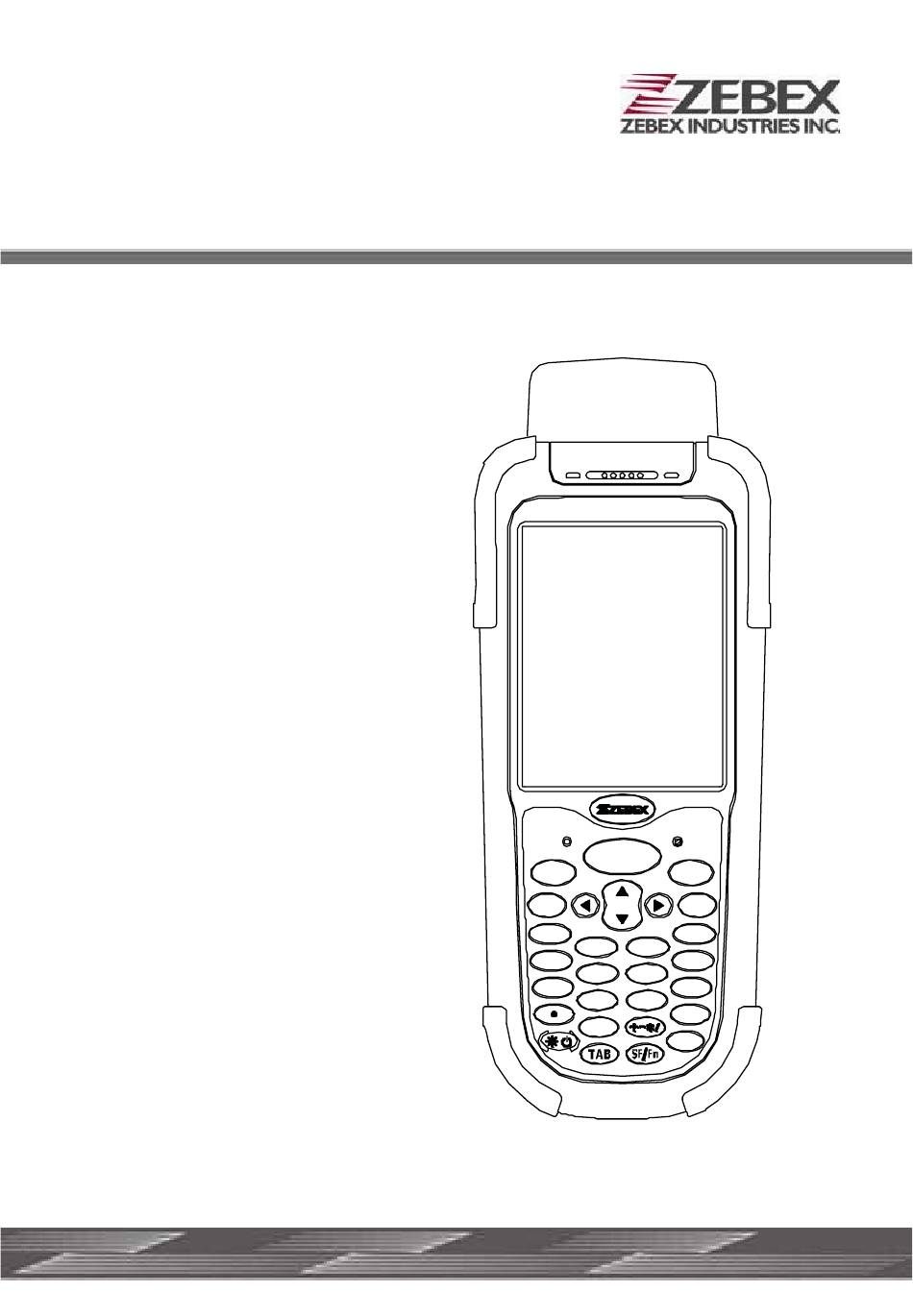

- Page 1 Handheld Computer Z-2065 series ( Version 3.00 ) User’s Manual RESET SCAN ZEBEX INDUSTRIES INC. WWW.ZEBEX.COM...
- Page 2 53~56 Ver 3.00 2010/1/25 26~49 Updated PowerPack Functions and pictures Ver 3.00 2010/3/16 30~39 Adding GPRS User Manual Ver 3.00 2010/3/19 1~26 Adding New Photo for Z-2065 Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 2 / 69...
-
Page 3: Table Of Contents
About The Product ......................23 Prerequisites ......................23 Specifications .......................24 Using Barcode Scanner Scanning Barcodes .......................25 Using RFID Scanner Scanning RFID ........................26 ZEBEX Hand-Held Terminal GPRS User’ s Guide Make New Connection ....................30 Set Connection Properties ..................32 Phone Number........................34 Set Dial Properties......................35 & Subject... - Page 4 File Transfer Operation..................44 Preload Manager ……………………………………………………………………...46 Preload Operation ....................47 Switch ..........................50 Scan Manager ….……………………………………………………………………. .52 Backup/Restore......................56 Firmware Information ....................58 Function Key Manager ....................59 How to order ………………………………………………………………………………..64 Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 4 / 70...
-
Page 5: About This Manual
ZEBEX INDUSTRIES INC. Preface About This Manual Thank you for your purchase of the ZEBEX Z-2065 series handheld computer. ZEBEX Z-2065 series product is at the forefront of handheld computer technology, and this manua l will provide the necessary information on the many and varied options available to you. -
Page 6: Copyright
Performance or use of this product. ZEBEX Industries Inc. will be under no liability in respect of any defect arising from fair wear and tear, willful damage, negligence, abnormal working conditions, failure to follow the instructions and warnings, or misuse or alteration or repair of the products without written approval. -
Page 7: Safety Operation
WARNING Disassembly and Modification Never try to disassemble or modify the device in any way. All servicing should be carried out by qualified Zebex pers onnel or Zebex - appr ov ed e ngi neers . Interior Parts and Components Never touch interior high voltage parts or components. -
Page 8: Federal Communication Commission (Fcc) Statement
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. -
Page 9: Unpacking Package Contents
Unpacking Package Contents AC Adapter Z-2065 series Mobile Data Terminal Stylus Pen RS-232 DB9 (F) Cable Hand Strip Battery Pack Hand strip Holder Sling for stylus Pen Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 9 / 69... -
Page 10: Optional Parts
ZEBEX INDUSTRIES INC. Optional Parts Cradle package Docking Cradle RS232 cable AC Adapter USB cable (Cradle to USB) Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 10 / 69... -
Page 11: Purchaseable Accessories
AC Adapter Britain Plug head RS-232 DB9 (F) Cable U.S. Plug head USB cable (Cradle to USB) Australia Plug head Battery Pack Europe Plug head Stylus Pen Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 11 / 69... - Page 12 ZEBEX INDUSTRIES INC. Hand Strip for stylus Pen Sling for stylus Pen Hand strip Holder Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 12 / 69...
-
Page 13: General Guide
This port is for RS-232 communication with PC Stylus pen For touch screen operation and press RESET switch. Hand strip Protects the Handheld Terminal to drop. Battery Main battery Sling for stylus pen Sling Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 13 / 69... - Page 14 4. Press after SF /Fn key and press F1 -F4 key to perform F5 - F8 key. T A B Tab key Press to add a tab indention. Space key Press to add a space character. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 14 / 69...
-
Page 15: Getting Start
Inserting the Battery Insert the battery pack as shown and watch the battery direction.. Remove the Battery Push the side lock to pick up the battery pack. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 15 / 69... -
Page 16: Charging The Battery
Charging by cable Connect the charging cable and AC adaptor as shown. Charging by cradle AC Power USB Interface Adapter Jack In RS232/COM port Interface Cradle - rear view Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 16 / 69... -
Page 17: Charging The Battery Separately In The Cradle
Right LED - The LED lit when the cradle is connected to AC power. Charging the battery separately in the cradle Insert the battery into the compartment at the rear of the cradle. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 17 / 69... - Page 18 NOTES Whe n c hargi ng the battery for the fi rs t time, charge for at l eas t 12 ho urs pri or to use. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 18 / 69...
-
Page 19: System Reset
Cold reset will eras e ALL pre-configured data on the s canner. Check carefully to make sure you hav e upl oad ed all i mp ortant files to your P C before proceeding with the reset. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 19 / 69... -
Page 20: Pc System Requirements
RS232/COM interface connector on the cradle and the other to the COM1 port on your PC. 1. Or can use attach one RS-232 cable to connect with your computer’s COM port directly. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 20 / 69... -
Page 21: Connecting Via Usb Cradle
The cradle must also be connected via one of your PC’s USB ports. Attach one end of the cable to the USB interface on the cradle and the other to your PC. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 21 / 69... -
Page 22: Inserting Sd Card
1. Make sure the power is turn off. 2. Open the SD Slot cover as shown, Take off the SD card. 3. Closed the SD slot cover. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 22 / 69... -
Page 23: About The Product
* Active Server Pages and web programming The following skills or experiences are also desirable . ? Windows CE devices ? ActiveSync ? Something networking experience. Hardware Required The following models of the ZEBEX Z-2065 series and the dedicated options are available. Subject Version Date Page Z-2065 series User’s Manual... -
Page 24: Specifications
Progra m ma ble up to 115,20 0 bps W L A N 802.11 b/g (optional) Dimensions 190.5 m m (L) x 82..8 m m (W) x 50.5 m m (H) Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 24 / 69... -
Page 25: Using Barcode Scanner Scanning Barcodes
2. Once in the correct position, press the SCAN button. An audible alarm is heard and the barcode digits will appear on the LCD screen if the scan is successful. & Subject Version Date Page Z-2065 series User’ s Manual 3.00 2010/3/19 25 / 69... -
Page 26: Using Rfid Scanner
ZEBEX INDUSTRIES INC. Using RFID Scanner (Optional) Scanning RFID To open Zebex RFID demo program, you can find program located on following path: “My Device\Flash Disk\RFID\RFID_ADJ\”. RFID Scanning Position RFID scan module was installed in the back of terminals. The devices can read from 30 to 50mm distance from the back-side of terminals. - Page 27 3) To write UID from certain Block, first input the location in column next to ” Write Block ” button, then write the data into the longer column in blue circle. Confirm written Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 27 / 69...
- Page 28 1) Place UID card within valid range, check UID by pressing “ Open Card ” button. UID will display in red circle shown in below diagram. 2) To perform read and write commands, please refer to “RW 15693” sections. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 28 / 69...
-
Page 29: Zebex Hand-Held Terminal Gprs User's Guide
1. Click Network and Dial-Up Connections in the settings . Show as below figures. 2. Click Make New Connection to create the new connection. Show as below figures. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 29 / 69... -
Page 30: Make New Connection
ZEBEX INDUSTRIES INC. 3. Select the Dial-Up Connection and press Next button to make new connection. Show as below figure. 4. Press Next button to select the modem. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 30 / 69... - Page 31 Set Connection Properties 1. Select Internal GPRS Modem and press the Configure button to change the settings of properties. 2. Change the Baud Rate to 115200 in Port Settings. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 31 / 69...
-
Page 32: Set Connection Properties
For the setting of known APN around the work, please refer below link: http://www.quickim.com/support/gprs-settings.html 4. Press OK button to complete the settings. 5. Press Next button to set the phone number Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 32 / 69... -
Page 33: Phone Number
1. Set phone number to *99# or *99***1#. This number depends on the service provider. Show as below figure. 2. Press Finish button to finish the settings of new connection. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 33 / 69... - Page 34 ZEBEX INDUSTRIES INC. Set Dial Properties 1. Double Click the connection. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 34 / 69...
-
Page 35: Set Dial Properties
2. Press the Dial Properties button. 3. Create new one or select one setting in the Location and press the Edit button. 4. Set the Dialing Patterns as below figure. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 35 / 69... - Page 36 ZEBEX INDUSTRIES INC. Connect to GPRS Service 1. Press the Connect button. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 36 / 69...
-
Page 37: Connect To Gprs Service
ZEBEX INDUSTRIES INC. 2. During the Dial-Up. It shows the status as below figure. 3. It shows below figure when connected to GPRS service. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 37 / 69... - Page 38 ZEBEX INDUSTRIES INC. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 38 / 69...
-
Page 39: Disconnect Gprs Service
ZEBEX INDUSTRIES INC. Disconnect GPRS Service 1. Double click the connection icon in taskbar. 2. Press the Disconnect button. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 39 / 69... -
Page 40: Backlight
ZEBEX INDUSTRIES INC. Using the Zebex PowerPack To save your time and effort in developing applications on Z-2070, ZEBEX provides it’s owndesign system management tool to called “PowerPack” to let you control it directly. The PowerPack management tools which installs in each of our WinCE product. - Page 41 ZEBEX INDUSTRIES INC. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 41 / 69...
- Page 42 Always OFF: This function can set up the backlight to be always off. 3. Brightness Control Bar The brightness of the backlight can be changed via control bar. Put up to light and put down to dark. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 42 / 69...
-
Page 43: Calculator
: Numeric key. : Division function. : Multiplication function. : Subtraction function. : Addition function. : A decimal point of dot. :To be equal to, The amount. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 43 / 69... -
Page 44: File Transfer
: For disconnecting with current devices. 2. Select Transfer File Select file need to be transferred, press bottom for selecting file. Start Transfer : Start transferring file to targeted devices. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 44 / 69... - Page 45 1.2 Select Bluetooth devices for receiving file, select “ Connect ” for connecting with devices, or select “ Disconnect ” to disconnect with current devices. Subject Version Date Page Z-2065 series User’s Manual 3.00 2010/3/19 45 / 69...
