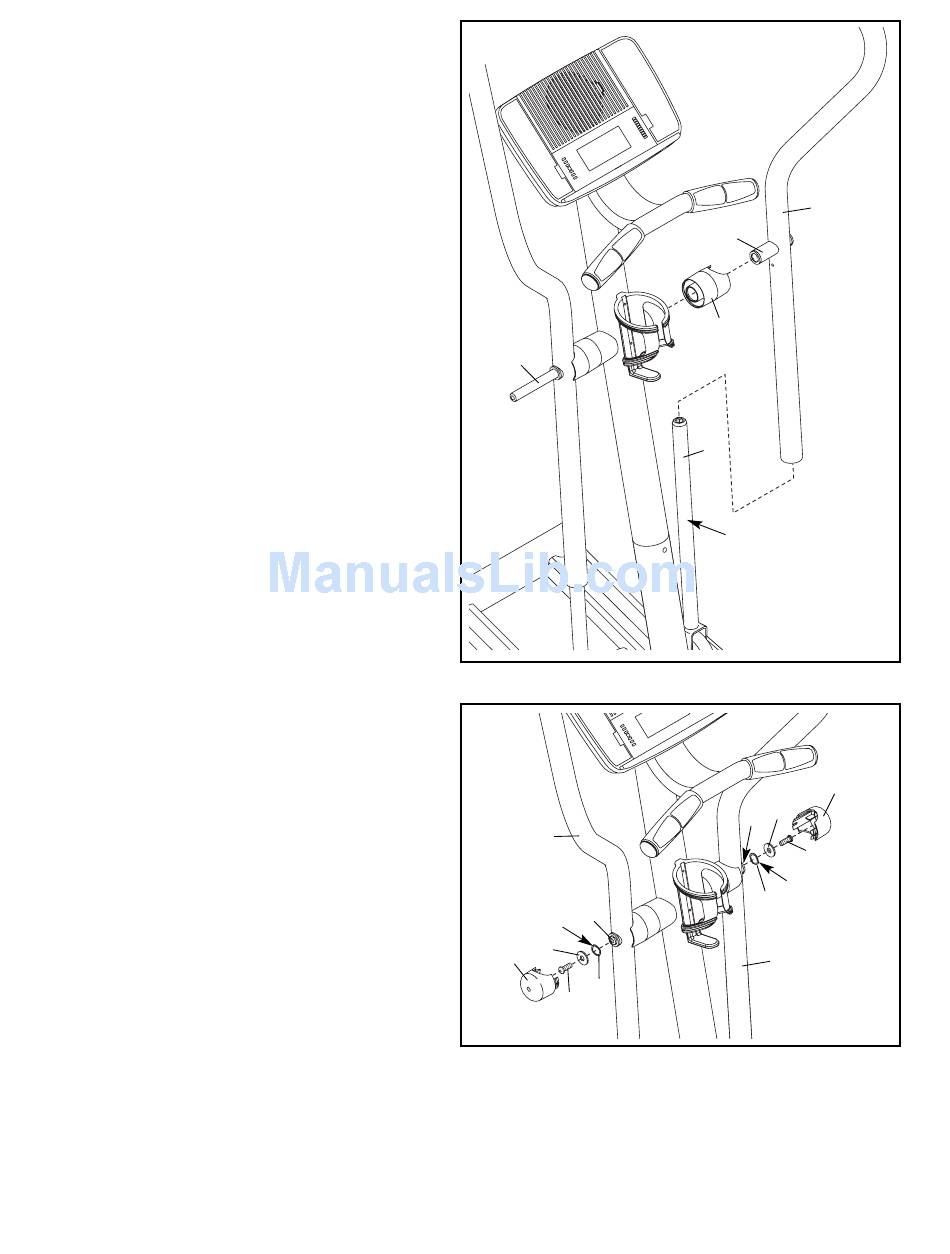

11. Orient the Right Upper Body Arm (5) so that
the indicated tube is facing inward. Lubricate
the upper end of the right Upper Body Leg (6)
with high-temperature lubricant. Then, slide
the Right Upper Body Arm onto the Upper
Body Leg.
Then, slide the Pivot Axle (16) through the
remaining Upper Body Spacer (29) and the
Right Upper Body Arm (5).
12. Apply a small amount of grease to a Wave
Washer (27). Slide an M8 Large Washer (81)
and the Wave Washer onto an M8 x 25mm
Patch Screw (70), and tighten the Patch Screw
into the left end of the Pivot Axle (16). Then,
press a Pivot Cover (14) against the Left
Upper Body Arm (4).
Repeat this step on the right side of the
elliptical exerciser.
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
