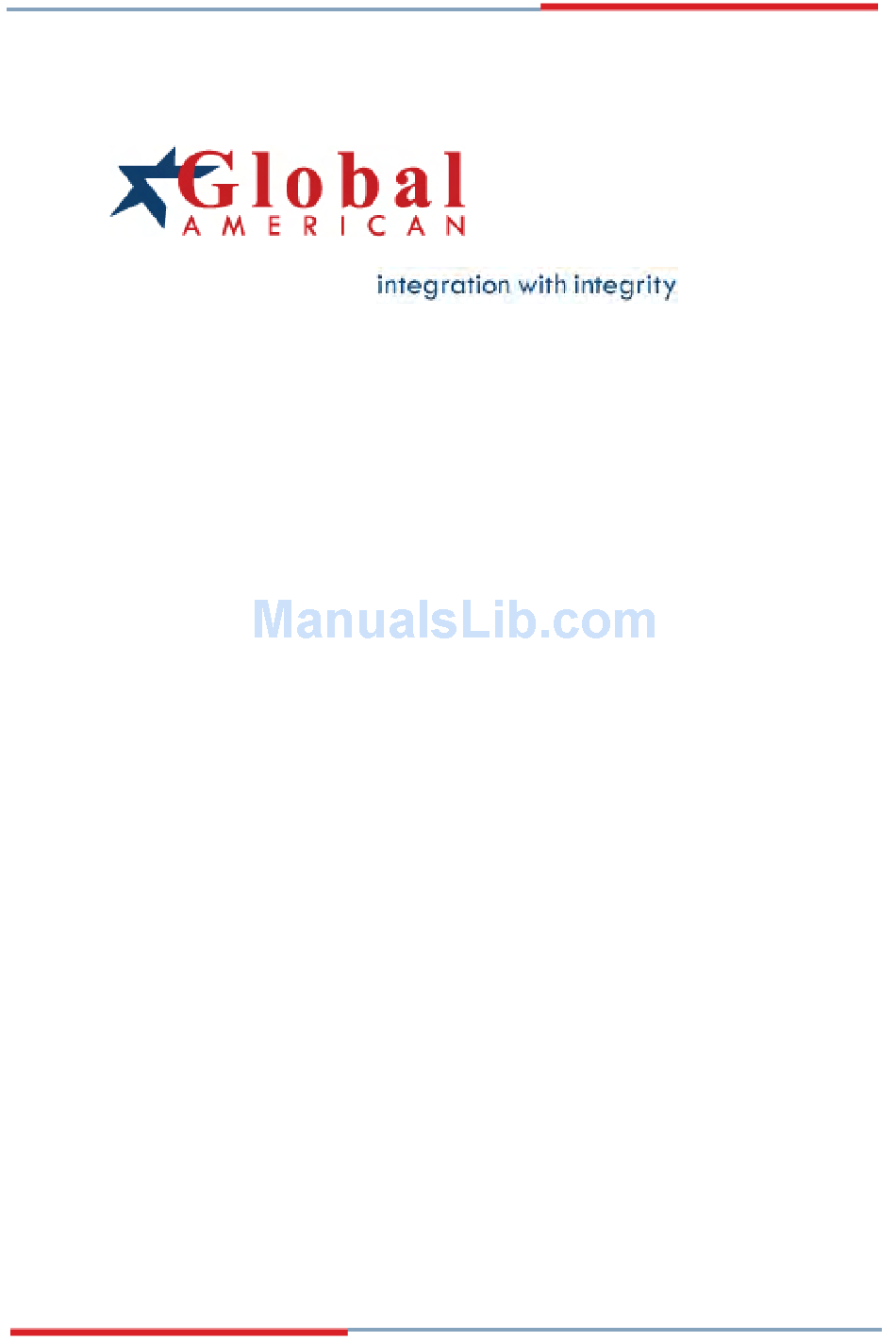

- Page 1 User’s Manual Mini-ITX Motherboard 2807880 Version 1.0, Febuary 2008...
- Page 2 Copyrights This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer. In general, the manufacturer will not be liable for any direct, indirect, special, incidental or consequential damages arising from the use of inability to use the product or documentation, even if advised of the possibility of such...
-
Page 3: Packing List
Packing List Please check package component before you use our products. ☆ 2807880 Mini-ITX Motherboard ☆ Quick Installation Guide ☆ CD for manual and drivers ☆ Cable Kit (CPU cooler, IDE cable, Serial ATA cable, Serial Port cable, I/O Shield, Power cable) -
Page 4: Table Of Contents
< Systen Fan Connector ( J8 ) >………………………………………………………27 < ATX Power Connector ( J9 ) >……………………………………………………….20 < Slim Floppy Connector ( J11 ) >…………………………………………………….28 < COM1 RS-232 Connector ( COM1 Down ) >………………………………………28 < COM1 RS-232 Connector ( COM1 Up )>…………………………………………..29 2807880 User’s Manual... - Page 5 <PCI-E Gigabit LAN / USB Connector ( RJUSB1 A / B )>……………………….…30 <PCI-E Gigabit LAN / USB Connector ( RJUSB1 A / B ) >…………………………30 <SATA1 Connector ( SATA1 ) >…………………………….…………………………30 <SATA2 Connector ( SATA2 ) >…………………………….…………………………30 Appendix <Watch Dog timer Setting > ..........32 2807880 User’s Manual...
-
Page 6: General Information
General Information Introduction The 2807880 Mini – ITX board incorporates the ATI RS690E + ATI RS600chipset, supports the AMD Turion 64 / Sampron uPGA 638 Pin processors with 800 MHz Front Side Bus (FSB), The RS690E integrates an ATI RADEON X-1250-based 2D/3D graphics engine, dual display, The SB600 is a south bridge that integrates key I/O, communications, and audio features. -
Page 7: Specification
2807880 User’s Manual Introduction Specification Board 2807880 Mini - ITX AMD Mobile Turion 64x2 638-pin Processor Sempron 638-pin Processor Chipset AMD RS690E + SB600 Memory 2 DDR II SoDIMM slot support DDR II 533 / 667 MHz SDRAM Up to 4GB... - Page 8 VGA Display Chipset AMD RS690E chipset Memory Shared system memory up to 256M Display CRT / LCD monitor with analog for 24 – bit LVDS interface Support DVI display Internal I/O Ports GPIO 1 GPIO Port Connector 2 USB Connector Supports 4 USB ports Serial Port 2 RS-232 Connector, COM3 with 5V power COM4 with 12V power...
- Page 9 Power And Environment POWER ATX 20-Pin power connector OR 8~21V full range 4 –Pins DC adapter TEMPERATURE Operating temperature with 0°C~60°C (32°F~140°F) Storage temperature with 20°C~80°C (-68°F~176°F) 2807880 User’s Manual...
-
Page 10: 1.3
1.3 <Block Diagram> 2807880 User’s Manual... -
Page 11: 1.4
1.4 <Mechanical Drawing > 2807880 User’s Manual... -
Page 12: Solder Side
Solder Side 2807880 User’s Manual... -
Page 13: Connector Location
Component Side 2807880 User’s Manual... - Page 14 Solder Side 2807880 User’s Manual...
-
Page 15: List Of Connectors
COM4 RS-232 Connector CN10 Front Panel Connector CN11 Front audio Connector CN12 LVDS Inverter Power Connector CN13 1394 Connector SATA1 Connector SATA2 Connector PS2 Keyboard / Mouse Connector CPU Fan Connector System Fan Connector ATX Power Connector 2807880 User’s Manual... - Page 16 SoDIMM Slot IDE1 44pin IDE Connector MPCI1 Mini - PCI Slot RJUSB1 A / B PCI-E Gigabit LAN / USB Connector RJUSB2 A / B PCI-E Gigabit LAN / USB Connector USB1 USB1 Connector USB2 USB2 Connector 2807880 User’s Manual...
-
Page 17: Jumper Locations
Jumpers Locations 2807880 User’s Manual... -
Page 18: List Of Jumpers
CF card Master / Slave JP1 LVDS Panel Voltage Selection (+5V / + 3.3V ) JP2 COM2 RS232/422/485 Select JP3 COM2 RS232/422/485 Select JU5 Clear CMOS Selection JU6 COM2 12V Voltage Select JU7 COM1 5V Voltage Select 2807880 User’s Manual... -
Page 19: Jumpers Setting
COM2 Pin 9 Selection ( JU6 ) Ring ■ ● ■ ● COM1 Pin 9 Selection ( JU7 ) Ring ■ ● ■ ● 2807880 User’s Manual... -
Page 20: Com2 Rs232/422/485 Slection ( Jp3, Jp2 )
CF Card Master/Slave Selection ( J3 ) Master Slave ■ ● ○ □ ● ● 2807880 User’s Manual... - Page 21 2807880 User’s Manual...
-
Page 22: Lvds Connector ( Cn2 )
DC Power Jack Connector ( JP4 ) Assignment Pin Assignment +12V ENABLK LVDS Connector ( CN2 ) Assignment Assignment TXU0N TXLON TXU0P TXL0P TXU1N TXL1N TXU1P TXL1P TXU2N TXL2N TXU2P TXL2P TXU3N TXLCKN TXU3P TXLCKP TXUCKN TXL3N TXUCKP TXL3P I2C_CLK I2C_DATA 2807880 User’s Manual... - Page 23 DVI Connector ( CN3 ) Assignment Assignment TX1P TX1N TXCP TXCN PVDD TX2P TX2N TX0P TX0N 2807880 User’s Manual...
-
Page 24: Vga & Audio Connector ( Cn5 )
VGA Display Connector ( CN5 ) GPIO Connector ( CN6 ) Assignment Assignment GPIO1-2 GPIO1-1 GPIO1-4 GPIO1-3 GPIO1-6 GPIO1-5 GPIO1-8 GPIO1-7 GPIO1-10 GPIO1-9 GPIO1-12 GPIO1-11 GPIO1-14 GPIO1-13 GPIO1-16 GPIO1-15 2807880 User’s Manual... -
Page 25: Com3 Rs-232 Connector ( Cn8 )
2807880 User’s Manual... - Page 26 Front Audio Connector ( CN11 ) Assignment Assignment Front-R Front-L Surround-R Surround-L LFEOUT CENOUT SPDIFO-N SPDIFI-N LVDS Inverter Power Connector ( CN12 ) Assignment Assignment +12V LVDS_BLON CPIS_BLEN IEEE 1394 Connector ( CN13 ) Assignment Assignment TPB0- TPB0+ TPA0- TPA0+ 2807880 User’s Manual...
-
Page 27: Ps2 Kb/ Ms Connector ( J5 )
2807880 User’s Manual... -
Page 28: Slim Floppy Connector ( J11 )
4 Pin Power Connector ( J10 ) Assignment 12V( Yellow ) Limited 0.8A Output 5V ( Red ) Limited 1A Output COM1 RS-232 Connector (COM1 DOWN) Assignment Assignment DCD1# RXD1 TXD1 DTR1# CSR1# RTS1# CTS1# RI1# 2807880 User’s Manual... -
Page 29: Com1 Rs-232 Connector ( Com1 Up )
COM2 RS-232/422/485 Connector (COM1 UP) Assignment Assignment DCD2#(422TXD-/485DATA-) 2 RXD2(422RXD+) TXD2(422TXD+/485DATA+) 4 DTR2#(422RXD-) DSR2# RTS2# CTS2# RI2# USB Connector (USB1, USB2) Assignment Assignment USB_VCC USB4- USB4+ USB5+ USB5- USB_VCC 2807880 User’s Manual... -
Page 30: Mini - Pci Slot ( Mpci1 )
Mini-PCI Slot (MPCI1) Standard Mini-PCI Connector CD-IN Connector ( CN4 ) Standard CD-IN Connector EIDE Connector ( J4 ) Standard 44-pin EIDE Connector PCI Connector ( J11 ) Standard 120-pin PCI Slot Connector 2807880 User’s Manual... - Page 31 Allows BIOS to select serial port4 Serial Port4 Address base address. Allows BIOS to select serial port4 Serial Port4 Mode IRQ. 2807880 User’s Manual...
-
Page 32: Watchdog Timer
O 2f 07 O 2e 72 O 2f c0 C0: second ( 40: minute ) O 2e 72 O 2e 73 Control second or minute O 2f 00 ~ FF O 2f 08 ( 8 second reset ) 2807880 User’s Manual... - Page 33 Any advice or comments about our products and service, or anything we can help you with please don’t hesitate to contact us. We will do our best to support your products, projects and business. Address: Global American, Inc. 17 Hampshire Drive Hudson, NH 03051 Telephone: Toll Free (U.S. Only) 800-833-8999...
