- Page 1 User Manual HD90 P/N. 920-013711-01 Rev. A, 05.2010...
- Page 2 /EN60950-1 : 2001 CAUTION Danger of explosion if battery is incorrectly replaced Replace only with the equivalent type recommended by the manufacture. Dispose of used batteries according to the manufacturer’s instructions. Specifications are subject to change without notice. HD90 User Manual...
-
Page 3: Safety Instructions
Be careful not to get liquid on the equipment to avoid electrical shock. For safety and warranty reasons, ONLY qualified service personnel should open the equipment. Do not repair or adjust energized equipment under any circumstances. HD90 User Manual... -
Page 4: Table Of Contents
5. MAINTENANCE AND ADJUSTMENT ........31 5-1. Thermal Print Head Cleaning ..................31 5-2. Thermal Print Head Balance Adjustment ..............31 5-3. Print Line Adjustment ....................32 5-4. Adjust the cutter ......................32 5-5. Troubleshooting ......................33 HD90 User Manual... -

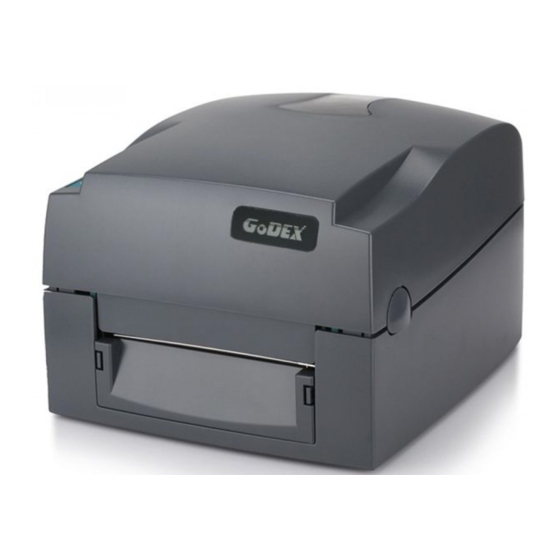

Page 5: Barcode Printer
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Code Pages WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode (UTF8, UTF16) HD90 User Manual... - Page 6 Ethernet 10/100Mbps print server (default off; disables USB when in use) 802.11 b/g wireless print server (default off; disables USB when in use) Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. HD90 User Manual...
-
Page 7: Communication Interface
RS232 HOUSING (9-pin to 9-pin) DB9 SOCKET DB9 PLUG +5V,max 500mA PRINTER 【 】 Note The total current output from parallel port and serial port altogether can not exceed 500mA. USB Interface Connector Type : Type B PIN NO. FUNCTION VBUS HD90 User Manual... - Page 8 Internal Interface UART1 wafer Ethernet module E_MD E_MD E_RST E_RST UART2 wafer Expansion module HD90 User Manual...
-
Page 9: Printer Parts
1-4. Printer Parts Cover Open Button Top Cover Label Roll Core Print Mechanism Locking Tenon (left/right) Front Cover Piece LED Light (Ready) LED Light (Status) FEED Key CF Card Slot Cover Print Head Pressure Adjustment Screw (left/right) HD90 User Manual... - Page 10 Label Guide Platen Roller Print Line Adjustment Gear Label Sensor Fan-Fold Label Insert Power Switch Ethernet Socket (Option) USB Port Parallel Port Serial Port (RS-232) Power Socket * The communication ports may vary depending on product types. HD90 User Manual...
-
Page 11: Printer Installation
If it's necessary, you can also assemble the Label Stop Plates on both sides of label roll. With Label Stop Plate Loosen and lift the upper print mechanism by pressing the locking tenons. HD90 User Manual... - Page 12 Feed the label through the two Label Guides to the Tear-off Bar. Align the label guides to the label edge. Close the upper print mechanism from the top to finish label installation. HD90 User Manual...
-
Page 13: Label Roll Core Installation Instruction
2-2. Label Roll Core Installation Instruction (A) 1” roll core installation (B) 1.5” roll core installation (C) 3” roll core installation HD90 User Manual... -
Page 14: Card / Hang Tags Installation
Connect the cable to the USB/parallel port on the printer and on the PC. Power on the PC and the printer and the printer’s LED light will shine. HD90 User Manual... -
Page 15: Driver Installation
Select the icon of driver file and click it to start the installation. Follow the instruction on screen to keep the installation going. Then the Driver Wizard utility should run automatically. Select "Install printer drivers". Select printer model. HD90 User Manual... - Page 16 Finish to start copying driver files. 10. Wait for file copying finished and complete the installation. 11. After the driver installation is complete, there should be a new printer model on Windows "Printer and Faxes" setting. HD90 User Manual...
-
Page 17: Accessory
(refer to right figure) 【 】 Note There are 2 sockets on the converting boards (one is for dispenser installation, and another one is for cutter), before plug the connector into socket, please check the pin first. HD90 User Manual... - Page 18 (^E) to 9. Peel off the first label, and feed the liner through the roller and the Tear-off Bar. 10. Follow the direction as shown in figure to feed the liner across the dispenser. HD90 User Manual...
- Page 19 11. Close the upper print mechanism and the dispenser. 12. Press the FEED key to adjust the position of label and complete the installation. HD90 User Manual...
-
Page 20: Cutter Module Installation
Plug in the cable connector of the cutter module onto the switchboard socket. 【 】 Note Before plug the connector into socket, please check the pin first. HD90 User Manual... - Page 21 12. Press the FEED key to adjust the position of label and complete the installation. 【 】 Suggestion When printing with cutter module, it is suggested to set the stop position (^E) to 30. HD90 User Manual...
-
Page 22: Ethernet Module Installation
Unscrew the screws as indicated in figure. Press the Cover Open Button and open the top cover. Remove the middle compartment and the top cover. Remove the Ethernet port cover from back plate of the printer. Secure the Ethernet module onto the bracket. HD90 User Manual... - Page 23 Note After the Ethernet module installation is completed, please send the "^XSET,USBETHERNET,1" printer command to printer for activating the Ethernet connection function. Please mind that USB port will be deactivated once the Ethernet connection function is activated. HD90 User Manual...
-
Page 24: Wlan Module Installation
Unscrew the screws as indicated in figure. Press the Cover Open Button and open the top cover. Remove the middle compartment and the top cover. Remove the Ethernet port cover from back plate of the printer. Secure the WLAN module onto the bracket. HD90 User Manual... - Page 25 11. Remove the Antenna port cover from back plate of the printer. 12. Thread Antenna Connection Wire through the hole on the Antenna Bracket. Then put the Antenna Connection Wire and Antenna Bracket on the Antenna port as figure showed. HD90 User Manual...
- Page 26 Please mind that USB port will be deactivated once the Ethernet connection function is activated. 【 】 Note2 The first time setting operation must be performed with Ethernet (wired) connection before you can access wireless network. HD90 User Manual...
-
Page 27: Cf Card Adapter Installation
Check the correspondent pins and sockets to plug the adapter card onto the main board. 【 】 Note Please make sure the sockets and the pins are match, otherwise the pins may get damaged. Close the plastic cover. HD90 User Manual... -
Page 28: Cf Card Instruction
3-6. CF Card Instruction HD90 can read the CF Card after installed the CF Card Adapter. If the built-in memory is insufficient for storing label formats, graphics or fonts, users can use CF Card as external memory to provide more memory space. -
Page 29: Printer Setting
LED light turn to flash red and then release the FEED key. Printer will automatically detect the label and record it. A Self-Test page will be printed out after Auto Sensing is completed and the printer goes back to standby mode. HD90 User Manual... -
Page 30: Self-Test
The Self-Test page helps user to figure out whether the printer is operating normally. Below are some general descriptions about the content of Self-Test page: Model & Version HD90 : VX.XXX Serial port setup Serial port :96,N,8,1 USB port setting... -
Page 31: Error Alerts
“Filename can not be twice whether the file exist and the found.” file name is correct. File name is repeated; printer 2 beeps Change the file name and will print out “Filename is twice download again. repeated.” HD90 User Manual... -
Page 32: Maintenance And Adjustment
Thermal Print Head pressure. Open the top cover. Turning the print head adjustment screws slightly by screwdriver to increase or decrease print head pressure. HD90 User Manual... -
Page 33: Print Line Adjustment
Power on the printer after clearing the paper jam, the cutter will reset automatically. 【 】 Note The label / paper used for cutting is suggested to be at least 30mm in height. HD90 User Manual... -
Page 34: Troubleshooting
Check if dispenser sensor is covered with dust ♦ abnormal function occurs Check if label is installed properly 【 】 Note Your dealer is knowledgeable about printers, printing software, and your unique system. Please contact your local dealer for further technical support. HD90 User Manual...
