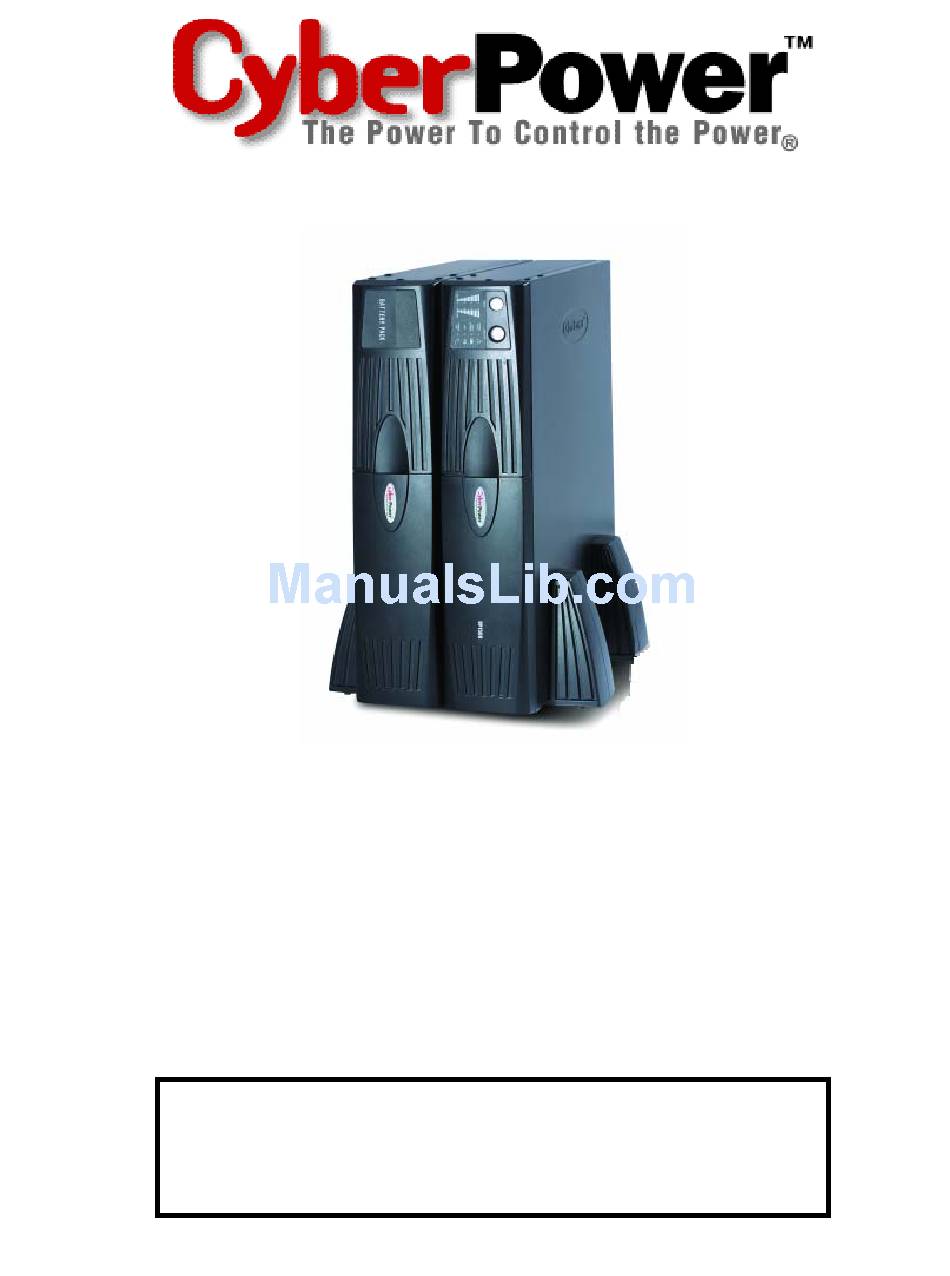

- Page 1 User’s Manual Professional Rack Mount UPS PR3000 ADDITIONAL INSTALLATION TIPS CAN BE FOUND AT: www.cyberpowersystems.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS……………………………………………….….…………...3 BLOCK DIAGRAM……………………..………………………………………..….4 INSTALLATION………………..……………………………….……………………4 - UNPACKING………...………………………………………………………..4 - HOW TO DERTERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT………………………………………………………………….4 - TO ESTIMATE POWER REQUIREMENTS………………………………5 - HARDWARE INSTALLATION………………………………………………5 BASIC OPERTAION……………………….………………………………………8 -FRONT PANEL DESCRIPTION……………………….……………………8 -REAR PANEL DESCRIPTION…………….………………………………..9 TROUBLESHOOTING……..………………………..…………..……..…..….….12 TECHNICAL SPECIFICATION…………………………………….……………..13 DEFINITIONS FOR ILLUMINATED LED INDICATORS…………………..….14 BATTERY REPLACEMENT……..……………..…………………………..…….15 LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE…..17... -
Page 3: Safety Warnings
PR3000 Guaranteed Uninterruptible Power Supplies SAFETY WARNINGS This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate. The AC power outlet must be installed near the UPS and must be easily accessible. -
Page 4: Block Diagram
BLOCK DIAGRAM INSTALLATION UNPACKING Inspect the UPS upon receipt. The box of PR3000 should contain the following: (1) UPS Unit; (1) User’s Manual; (2) Rack Mount Brackets; (2) Stands; (1) PowerPanel Plus Software Disk; (1) PowerPanel Software Disk; (1) Telephone Cable;... -
Page 5: To Estimate Power Requirements
PR3000 Guaranteed Uninterruptible Power Supplies TO ESTIMATE POWER REQUIREMENTS: 1. ______Watts (W) x 2.0 = _____VA or _____Amps (A) x 120 = _____VA 2. Add the totals up for all pieces of equipment and multiply this total by 0.6 to calculate actual requirements. - Page 6 (b.) Connect the black wire and the red wire of the Battery Pack to the negative (-) / black terminal and the positive (+) / red terminal of the PR3000 respectively. (See Figure 1) **Note: Due to the large current, make sure to connect the positive to positive and the negative to negative.
- Page 7 PR3000 Guaranteed Uninterruptible Power Supplies Figure 1: Connecting PR3000 with Battery Pack...
-
Page 8: Basic Opertaion
BASIC OPERATION FRONT PANEL DESCRIPTION Power Switch Press the power button to turn the UPS ON or OFF Test Switch The PR-UPS performs a self-test automatically when power on. If the UPS passes the test, it returns to on-line operation. If the UPS fails the self-test, please recharge the battery for 4 hours and perform another self-test. -
Page 9: Rear Panel Description
PR3000 Guaranteed Uninterruptible Power Supplies Load Level Indicators This indicator shows a visual depiction of the UPS load. The load indicator LED will turn orange if the load is between 80 and 100%. If the load is under 20%, no indicator LED will illuminate. - Page 10 Communication Protection Ports Ethernet RJ-45 Network Protection Ports protect standard network cables. Dual Serial Ports PR3000 provides two serial ports to allow connection and communication between the UPS and two computers. (See Figure 2) This allows the simultaneous shutdown of two computer systems.
- Page 11 PR3000 Guaranteed Uninterruptible Power Supplies The Primary computer (with PowerPanel Plus installed) is the computer that you will use to control the UPS and make any change to the operation of the UPS. The Secondary computer (with PowerPanel installed) is unable to exhibit any control over the UPS.
-
Page 12: Troubleshooting
The UPS does Battery is not fully charged. plugged in at least 4 hours. not perform expected Contact CyberPower about replacement Battery is slightly worn out. runtime. batteries at tech@cyberpowersystems.com The on/off switch is designed Turn the UPS off. Wait 10 seconds and then to prevent damage by rapidly turn the UPS on. -
Page 13: Technical Specification
PR3000 Guaranteed Uninterruptible Power Supplies TECHNICAL SPECIFICATIONS Model PR3000 Capacity (VA) 3000VA Capacity (Watts) 2200W Input Voltage Range 85 – 150Vac Frequency Range 47 – 63Hz Output On Battery Output Voltage Pure Sine Wave at 120Vac +/- 5% On Battery Output... -
Page 14: Definitions For Illuminated Led Indicators
Overload- Turn the UPS off and unplug at least one Long Beep piece of equipment from the UPS. Wait 5 seconds, reset the circuit breaker and restart the UPS. Surge Protection Malfunction- Power surge has damaged the unit. Please contact CyberPower. -
Page 15: Battery Replacement
PR3000 Guaranteed Uninterruptible Power Supplies BATTERY REPLACEMENT Contact your dealer or call the CyberPower Technical Support in this manual for information on battery replacement. Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Servicing the battery can only be performed by trained personnel knowledgeable of batteries and their precautions. - Page 16 insure battery life. If the battery remains uncharged for an extended period of time, it may suffer permanent loss of capacity.
-
Page 17: Limited Warranty And Connected Equipment Guarantee
Limited Warranty and Connected Equipment Guarantee.) LIMITED WARRANTY CyberPower warrants to you, the Initial Purchaser, that the Product will be free from defects in material and workmanship for three years from the date of original purchase, subject to the terms of this Limited Warranty. - Page 18 CyberPower will inspect and examine the Product within ten (10) days of receipt. If the Product is not as warranted, CyberPower will repair or replace the Product and return it to you at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
- Page 19 1. Provide reasonable proof of purchase (for example, a sales receipt) that establishes you as the Initial Customer of the Product. 2. Call CyberPower at (952) 403-9500 or (877) 297-6937 (toll free), write to CyberPower at 5555 12th Ave East, Suite 110, Shakopee, MN 55379, or e-mail CyberPower at claims@cyberpowersystems.com within ten (10) days of the date of the event for which...
- Page 20 Connected Equipment and Request a Return Materials Authorization (RMA). 4. Pack and ship the Product to CyberPower and, if requested, the item(s) of Connected Equipment, a repair cost estimate for the damage to the Connected Equipment, and all claim forms that CyberPower provides to you.
- Page 21 PR3000 Guaranteed Uninterruptible Power Supplies repairs will take place, and CyberPower must be notified and approve any repair facility before any Connected Equipment is serviced. Any repair or modification of the Connected Equipment or the Product by a facility or entity not approved by CyberPower voids this Connected Equipment Guarantee.
- Page 22 DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT OR OTHER HIGH RISK ACTIVITIES CyberPower does not sell the Products for use in high-risk activities. The Product is not designed or intended for use in hazardous environments requiring fail-safe performance,...
- Page 23 PR3000 Guaranteed Uninterruptible Power Supplies FCC Notice This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
