YOUR ULTIMATE ALLY IN POWER
SMART APP SINEWAVE UPS SERIES
PR750RT2UC / PR1000RT2UC / PR1500RT2UC
PR2000RT2UC / PR2200RT2UC / PR3000RT2UC
PR750RTXL2UC / PR1000RTXL2UC / PR1500RTXL2UC
PR2000RTXL2UC / PR2200RTXL2UC / PR3000RTXL2UC
USER MANUAL
1
2
5
4
3

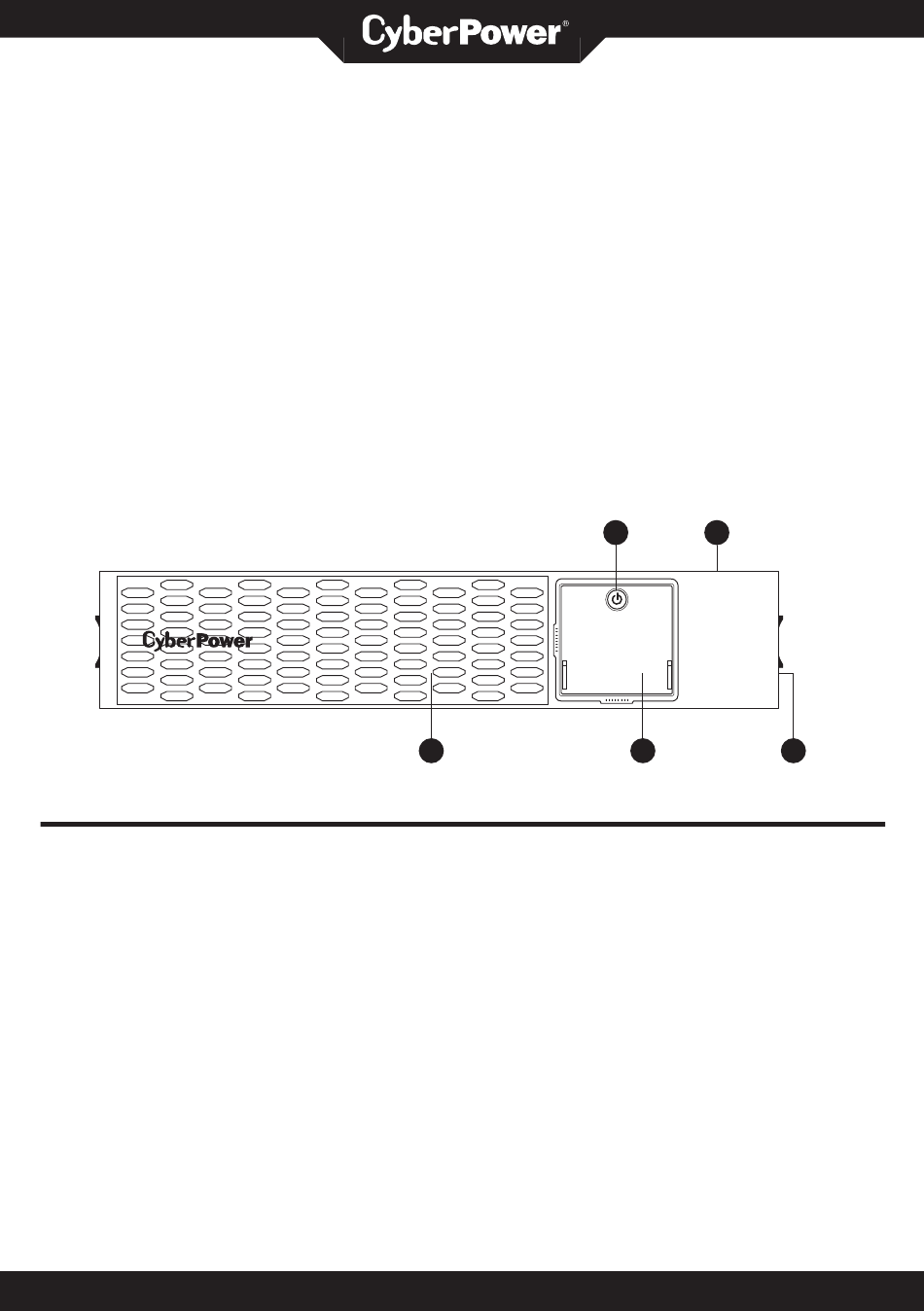

FEATURES - FRONT PANEL
1. Power Switch
2. Toolless Battery Access Door (behind faceplate)
3. Front Panel Access Tabs (behind faceplate)
4. LCD Module
5. Faceplate
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
Advertisement
Table of Contents
Related Manuals for CyberPower PR750RT2UC
Summary of Contents for CyberPower PR750RT2UC
- Page 1 YOUR ULTIMATE ALLY IN POWER SMART APP SINEWAVE UPS SERIES PR750RT2UC / PR1000RT2UC / PR1500RT2UC PR2000RT2UC / PR2200RT2UC / PR3000RT2UC PR750RTXL2UC / PR1000RTXL2UC / PR1500RTXL2UC PR2000RTXL2UC / PR2200RTXL2UC / PR3000RTXL2UC USER MANUAL FEATURES - FRONT PANEL 1. Power Switch 2. Toolless Battery Access Door (behind faceplate) 3.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at www.cyberpowersystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support. -
Page 3: Basic Configuration
BASIC CONFIGURATION PR750RT2UC / PR1000RT2UC / PR1500RT2UC PR2000RT2UC PR2200RT2UC PR3000RT2UC PR750RTXL2UC / PR1000RTXL2UC PR1500RTXL2UC Features - Back Panel Battery Backed and Surge Protected Outlet 8. Dry Contact 2. Output Circuit Breaker 9. Serial Port 3. SNMP/HTTP Network Slot 10. USB Port 4. -
Page 4: Installing Your Ups System
PR2000RTXL2UC PR2200RTXL2UC PR3000RTXL2UC INSTALLING YOUR UPS SYSTEM UNPACKING OVERVIEW Inspect the UPS upon receipt. The CyberPower Smart App Sinewave The box should contain the following: Uninterruptible Power Supply PR750RT2UC/ PR1000RT2UC/ PR1500RT2UC/ (a) UPS unit PR2000RT2UC/ PR2200RT2UC/ (b) Faceplate PR3000RT2UC/ PR750RTXL2UC/... - Page 5 INSTALLING YOUR UPS SYSTEM The UPS unit incorporates microprocessor- INSTALLATION based full digital control and includes The product is designed for tower installation PowerPanel® Business software providing the and rack installation for 2-post rack and user unsurpassed flexibility and control. An 4-post rack.
- Page 6 INSTALLING YOUR UPS SYSTEM - CONTINUED Rack Installation for 2-Post Rack Attach the brackets with provided M5 flat head screws. 2. Affix the product to the rack with suitable M5/M6 screws and cage nuts. (M5 trust head screws are provided with the product in the mechanical accessory box.) Rack Installation for 4-Post Rack Use the provided M5 flat head screws to attach the brackets and provided M5 pan head screws for hanging brackets.
-
Page 7: Basic Operation
On/Off” on the first line. Use the Up/Down button to select “On” or “Delay On” and then press the Enter button to turn on the UPS. The display screen will show CyberPower in the first line and the UPS model in the second line. Then the Online or On Battery Indicator on the LCD module lights up, indicating the UPS is operating from utility or battery. -
Page 8: Cleaning And Maintenance
On/Off” on the first line. Use the Up/Down button to select “On” or “Delay On” and then press the Enter button to turn on the UPS. The display screen will show CyberPower in the first line and the UPS model in the second line. Then the On Battery Indicator on the LCD module lights up, indicating the UPS is operating from battery. -
Page 9: Network Operation
This product features an Ethernet port for Cloud Connection, which makes it easy to monitor CyberPower UPS systems from anywhere. Follow below steps to get your UPS on Cloud. Hardware installation: Connect the Cloud Monitoring (Ethernet Port) on the UPS rear panel to a wall jack or network switch using a suitable Ethernet cable. - Page 10 Wait till the UPS is successfully configured. 5. Start monitoring your UPS! In addition to the Mobile App, you can access the PowerPanel Cloud account via a web browser: https://powerpanel.cyberpower.com. For more information, please refer to the PowerPanel Cloud User’s Manual.
- Page 11 LCD OPERATION GUIDE Display Interface Power Switch/Power On Indicator 2. Online Indicator 3. Fault/Warning Indicator 4. On Battery Indicator 5. Battery Fault Indicator 6. Display Screen 7. Menu Button 8. Esc Button 9. Up Button 10. Down Button 11. Enter Button Menu Enter Basic Operation...
- Page 12 LCD OPERATION GUIDE - CONTINUED Menu Item UPS Model Name UPS Firmware Version UPS Serial Number IP Address BM Status About Last Battery Change Date MAC ID UPS Battery Information Next Battery Change Date Service Port number Subnet Mask Output Voltage Schedule Test Gateway Minimum Output Voltage...
- Page 13 LCD OPERATION GUIDE - CONTINUED Menu / Ambient Setup The settings in this menu affect the UPS display, alarm, and noise. Customize your UPS to meet your needs. Item Default Option Description When Active is selected, the UPS will change Active related setup functions in this menu automatically Inactive...
- Page 14 LCD OPERATION GUIDE - CONTINUED Menu / Outlet Control Use this menu to configure UPS outlet performance. Outlets are divided into Critical (CL) and Non-Critical (NCL) outlets. Connect the mission critical devices into Critical outlets and nonessential equipment into NCL outlets. If equipment needs to be shut down or reboot in a specific order, plug the equipment into separate outlet groups.
- Page 15 LCD OPERATION GUIDE - CONTINUED Submenu / Config NCL Item Default Option Description Delay On NCL Switch This is the main switch for NCL outlet groups. Delay Off Reboot Delay Reboot The amount of time that the NCL outlets will wait Delay Turn On 4 seconds 0-600 seconds...
- Page 16 LCD OPERATION GUIDE - CONTINUED Menu / Test This menu provides basic tests for users to check the current performance of the UPS. Item Default Option Description Select Yes to order the UPS to quickly test the backup function by entering to battery mode, Self Test checking if it works.
- Page 17 LCD OPERATION GUIDE - CONTINUED Item Default Option Description Schedule Test – If Yes is selected, the UPS will perform a Self Test On Startup every time on startup. Never Every 1 week Schedule Test – Select the amount of time that the UPS will perform Never Every 2 weeks Frequency...
- Page 18 LED Indicator Alarm Line 1 Line 2 E01-Overcharge: Contact UPS Fault! Beeps once every 2 seconds* CyberPower for repair. E03-No Charge: Contact UPS Fault! CyberPower for repair. E20-Output Short: Connected UPS Off! equipment may have problems, Beeps for 3 seconds remove them and check.
-
Page 19: Installation
EPO AND ROO CONFIGURATION The Emergency Power Off (EPO) port is a safety feature that can be used to immediately shut down the UPS and cut off its power supply to connected equipment. It is necessary to manually press the power switch on the LCD module to restart the UPS and reapply power to connected equipment. -
Page 20: Dry Contact
DRY CONTACT This UPS offers users the solution for UPS status monitoring via two output relays. Refer to Network Operation in this manual, verifying the UPS is connected to a computer with PowerPanel Business software installed or is equipped with RMCARD. Follow below circuit to wire your dry contact port and choose your preferred monitoring status via those interfaces. -
Page 21: Battery Replacement
QR code below for detailed information. CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. When replacing batteries, replace with the same number of the following battery: CyberPower RB1250X4 for PR750RT2UC, CyberPower RB1270X4H for PR1000RT2UC/ PR750RTXL2UC/ PR1000RTXL2UC, CyberPower RB1290X4J for PR1500RT2UC/PR2000RT2UC/ PR2200RT2UC/ PR3000RT2UC/ PR1500RTXL2UC/ PR2000RTXL2UC/ PR2200RTXL2UC/PR3000RTXL2UC. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL PR750RT2UC PR1000RT2UC PR1500RT2UC PR2000RT2UC PR2200RT2UC PR3000RT2UC GENERAL UPS Topology Line-Interactive Energy Saving GreenPower UPS Bypass Technology INPUT Nominal Input 100/110/120/125V 100/110/120V Voltage Input 50-60Hz +/- 3Hz (Auto-sensing) Frequency Plug Type NEMA 5-15P NEMA 5-20P NEMA 5-30P Power Cord 10 ft. - Page 23 TECHNICAL SPECIFICATIONS - CONTINUED MODEL PR750RTXL2UC PR1000RTXL2UC PR1500RTXL2UC PR2000RTXL2UC PR2200RTXL2UC PR3000RTXL2UC GENERAL UPS Topology Line-Interactive Energy Saving GreenPower UPS Bypass Technology INPUT Nominal Input 100/110/120/125V 100/110/120V Voltage Input 50-60Hz +/- 3Hz (Auto-sensing) Frequency Plug Type NEMA 5-15P NEMA 5-20P NEMA 5-30P Power Cord 10 ft.
-
Page 24: Troubleshooting
Batteries are discharged. Recharge the UPS for at least 3 hours. UPS does not provide UPS has been damaged by a surge Contact CyberPower Systems at: power to equipment. or spike. cyberpowersystems.com for repair. NCL outlets will be turned on Non-critical outlets have turned off automatically as utility is restored. - Page 25 If the fault persists, take note on display screen. and contact CyberPower for repair. The continuous generator capacity rating must be at least twice the total load, including the UPS and all other devices attached to the generator;...
-
Page 26: Fcc Compliance Statement
CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at: Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379; call us at (877) 297-6937; or submit a web ticket online at cyberpowersystems.com/support.
