Owner's Manual
for

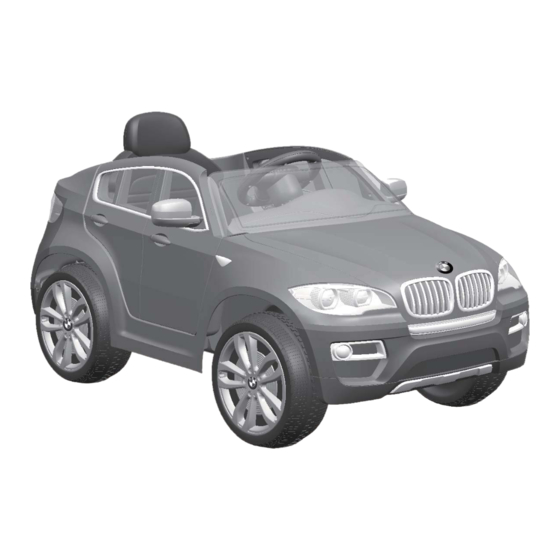

6V BMW Ride On
This manual contains important safety, assembly, operation
and maintenance information.
Please read and fully understand this manual
before operation.
Save this manual for future reference.
m0132
HBMW Rideon EN 092613
BC
Copyright Huffy Corporation 2013

Advertisement

Table of Contents
loading

Related Manuals for Huffy 6V

Summary of Contents for Huffy 6V

  • Page 1 Owner’s Manual 6V BMW Ride On This manual contains important safety, assembly, operation and maintenance information. Please read and fully understand this manual before operation. Save this manual for future reference. m0132 HBMW Rideon EN 092613 Copyright Huffy Corporation 2013...

  • Page 2: Table Of Contents

    • Battery Fuse ..................19 • Battery Storage ..................19 • Battery replacement and disposal ............20 • Troubleshooting Guide ...............21/22 Huffy Warranty • Huffy Corporation Limited Warranty ............. 23 Tools Needed for Assembly: Small Phillips Screwdriver Spanner Socket (supplied)

  • Page 3: Warnings

    WARNING The user must follow all safety rules and guidelines below or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. This ve- hicle is unsuitable for children under 3 years. The user must be 3 to 5 years, and weigh no more than 65 lbs (30kgs).
  • Page 4 WARNING - Charging the Drive Motor Battery The following safety hazards may result in serious injury or death to the user of the vehicle: • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fi re or explosion. Only use the supplied rechargeable battery (or suitable replacement) and char- ger with the vehicle.

  • Page 5: User Requirements

    Radio Frequency Information Caution: Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for the Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 6: Parts Assembly View

    Parts View REAR AXLE STACK-UP LEFT RIGHT...

  • Page 7: Parts Assembly List

    Parts List Description Body Door, Left Door, Right Steering Wheel Assembly Windshield Mirror, Left Mirror, Right Mirror Screws (x2) Seat Drive Motor Drive Wheel Wheel (x3) Axle Motor Cover Motor Cover Screws (x4) Wheel Cover (x4) Wheel Cover Screws (x3 per wheel) Axle Washers (x8) Locknut (x4) Hubcaps (x4)

  • Page 8: Drive Motor And Rear Wheel Installation

    Installing the Drive Motor and Rear Wheels Rear axle Spanner Attach the Drive Wheel NOTE: Begin by turning the vehicle upside down. 1. Slide the Motor (9) onto the rear axle (right side). 2. Feed the Plug and Wires through motor hole. 3.

  • Page 9: Front Wheel Installation

    Installing the Front Wheels Spanner Front axle Installation 1. Slide Washer (15) onto the Front Axle. 2. Slide the Bushing (18) into the indent in the back of the Wheel (11) (it will sit even with the back of the wheel). 3.

  • Page 10: Installing Steering Rod

    Installing the Steering Rod Installation 1. Locate the Steering Rod Hole (A) and Steering Slot (B). 2. Place a Washer (23) over the long end of the Steering Rod (19) and slide up to rod Dimple (C). 3. Insert the long end of the Steering Rod (19) through Hole (A). 4.

  • Page 11: Drive Battery Installation

    Connecting the Drive Battery to Drive Motor after Charging WARNING: Connect the red to red connectors, and white to white connectors. Connecting incorrectly can damage the battery and/ or motor. white Connector white motor connector 1. Plug the white motor connector into the white Drive Switch connector as shown above.

  • Page 12: Motor Cover Installation

    Installing the Motor Cover Screw Driver Installation 1. Fit the Motor Cover (13) on the motor. 2. Install four Screws (A) securely.

  • Page 13: Seat Installation

    Installing the Seat Lock Tabs Installation 1. Align the Tabs (A) on the back of the seat with the slots in the back of the main body. 2. Align the Lock on the front of the seat with the hole in the middle of the main body hole.

  • Page 14: Steering Wheel And Sound Effect Batteries

    Installing the Steering Wheel and Batteries Installation 1. Remove the screw from the steering wheel. 2. Place the steering wheel over the steering column (A). 3. Align the holes on each side of steering wheel with the holes at the end of the steer- ing column.

  • Page 15: Side Mirror Installation

    Installing the Side Mirrors Installation 1. Insert the Right Mirror into the slots of the mirror bracket located on the door. 2. Insert a screw through the top of the hole Screw Driver in the mirror and mirror bracket (the nut is captive inside the mirror bracket).

  • Page 16: Operation And Features

    Operation and Features Steering wheel Sound buttons Shift lever Power switch Foot pedal To Operate the vehicle: 1. Power Switch: Turns the vehicle on and off. Rock the switch to “ON” position to turn the vehicle on, - “OFF” position to turn it off. Leave OFF when not in use. 2.

  • Page 17: General

    Check the drive battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Only replace with the same type 6V rechargeable battery and charger supplied by the manufacturer. • Only use the rechargeable battery (or equivalent replacement) and charger sup- plied with your vehicle.

  • Page 18: Charging The Drive Battery

    2. Unplug the red battery connector: Push the connectors fully together, then press in the locking clip. Then pull connectors apart. 3. Plug the charger connector into the red battery connector (Only use the 6V charger included with the vehicle, input: AC 120V, 60Hz output: DC 6V), Plug the charger into a standard 110V wall outlet.

  • Page 19: Battery Fuse

    Battery Fuse The drive motor circuit features a thermal fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for approximately fi...

  • Page 20: Battery Replacement And Disposal

    Drive Battery Replacement and Disposal The 6V battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery: 1.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide The following are examples of potential problems. Completely read through this man- ual and the troubleshooting guide table before calling. If you still need help resolving the problem please contact Customer Service. Problem Possible Cause Solution Vehicle does not Battery low on power Recharge battery (see Battery: Re- charge interval and time)
  • Page 22 Drive Wheel is partially Check drive wheel - to motor en- or gear box engaged gagement. 6V Battery will not Battery connector or Check that the battery connectors recharge adapter connector is are fi rmly plugged into each other.

  • Page 23: Huffy Corporation Limited Warranty

    Vehicle other than for its intended purpose. How do you get service? Contact Huffy Consumer Service. See included list for Customer Contact information. This product meets ASTM F963 and CPSIA requirements for electric...
  • Page 24 • Always read the user manual that comes with your helmet to make sure it is fi tted and attached properly to the wearer’s head according to the fi tting instructions described in the user manual. Check www.Huffy.com for the current contact information H Helmet EN 100212 i0027...
