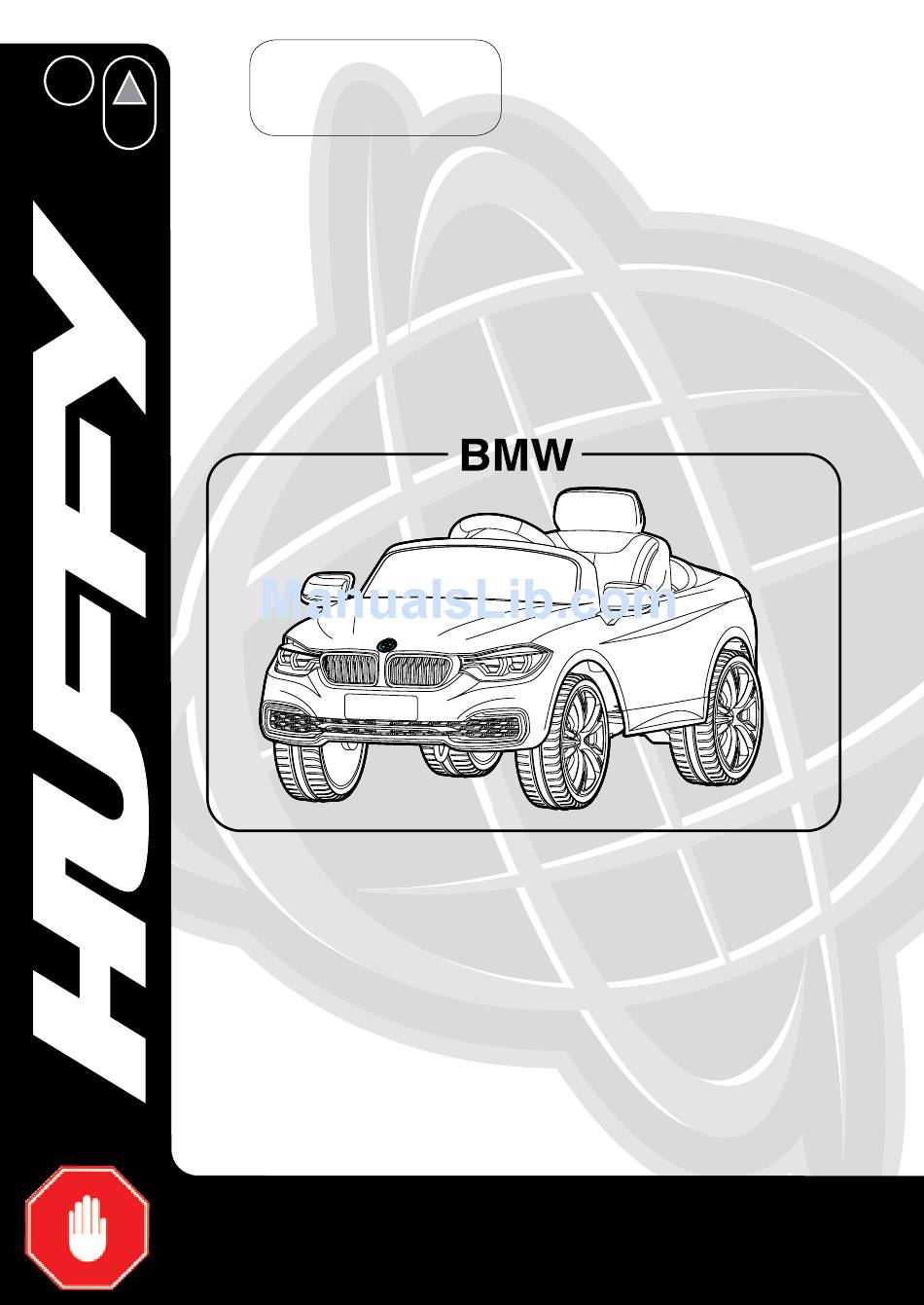

m0223
H-BMWS4 Ride-On EN 090817
© Copyright Huffy Corporation 2017
BC
Date Code Label
Here
EN
Owner's Manual
for
BMW Electric Ride On
This manual contains important safety, assembly, operation and
maintenance information.
Please read and fully understand this manual
before operation.
Save this manual for future reference.
See back page for Customer Service Information
Consulte el reverso para Servicio de Información al Cliente
Voir pages verso pour des renseignements le service à la Clientèle
Advertisement
Table of Contents
Related Manuals for Huffy BMW
Summary of Contents for Huffy BMW
- Page 1 H-BMWS4 Ride-On EN 090817 © Copyright Huffy Corporation 2017 Date Code Label Here Owner’s Manual BMW Electric Ride On This manual contains important safety, assembly, operation and maintenance information. Please read and fully understand this manual before operation. Save this manual for future reference.
-
Page 2: Table Of Contents
• Drive Battery and Fuse ......................13 • Battery Re-charge Interval and Time ................14 • Charging the Drive Battery....................15 • Battery replacement and disposal ..................16 • Battery Storage ........................16 • Troubleshooting Guide ....................17/18 Huffy Warranty • Huffy Corporation Limited Warranty ................19... -
Page 3: Safety And Warnings
WARNINGS Here are basic, common sense safe riding action such as tip over and skidding. practices you should read aloud to your • Models with no brakes: Motor friction will child and anyone who may use the vehicle. gradually stop the unit. •... - Page 4 WARNING - Charging the Drive Motor Battery The following safety hazards may result in serious injury or death to the user of the vehicle: • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fi re or explosion. Only use the supplied rechargeable battery (or suitable replacement) and charger with the vehicle.
-
Page 5: Vehicle Information
Vehicle Information Applicable age 3-5 years old Weight limit 65 lbs (30kg) Power supply Chargeable type (supplied) Battery specifications DC 6V/7AH Charging source Input: AC 100V-240V 50Hz/60Hz Output: DC 8V/750mA Battery charging time Charging time: 9-10 hours Tools Needed for Assembly: Phillips Screwdriver Wrench Set Radio Frequency Information... -
Page 6: Parts Assembly View
User Requirements The suitable age range for a child using the vehicle is 3 to 5 years. The maximum weight of the child is 65 lbs (30 kg). Before using the vehicle the child must understand the controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls. - Page 7 Parts List...
-
Page 8: Drive Motor And Wheel Installation
Installing the Drive Motor and Wheels Installation of the front-wheel frame connecting-rod and wheel FRONT REAR • Install the front-wheel frame connecting-rod (10) as shown (may be pre-installed), and install screw (11) and locknut (12). Tighten securely, then loosen just enough so you can turn screw/nut by hand. Screw threads must still be fully engaged into locknut. -
Page 9: Installing Steering Wheel, Power Supply And Seat
Installing Steering Wheel, Power Supply and Seat Installation of steering wheel: • Connect the steering wheel wire plug to the plug extend- ing out of the car body hole. • Put the connected plugs and wires down into the car body hole. -
Page 10: Installing Windshield And Mirrors
Installing Windshield and Mirrors Installation of windshield and rearview mirrors Insert the dashboard accessory (21) into the tab Install the windshield (2) and rearview mirrors (4) by holes until they ‘snap’ securely. inserting the tabs into the vehicle slots as shown. Press tabs in until a “snap”... -
Page 11: Operation
Operation To Operate the vehicle: Power Button: Push IN to turn on. Push in again to turn OFF. Leave OFF when not in use. Steering wheel: Use to steer the vehicle in the direction you want to move. Sound Effects: Press the Horn button on the steering wheel to play the Horn sound. Press the other but- tons for additional sounds. -
Page 12: Maintenance And Service
Maintenance Repair and Service General: The vehicle should be checked for Note: If the drive wheel is not tight, it will not damage, missing or badly worn parts before engage the gears and the vehicle will not run. each use. If any part of the product does not •... -
Page 13: Drive Battery And Fuse
Drive Battery Only an adult who has read and understands the safety warnings should handle, charge or recharge the battery. Failure to comply with all safety warnings may result in serious injury or death. Battery Fuse The drive motor circuit features a thermal fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. -
Page 14: Battery Re-Charge Interval And Time
Re-charge Interval and Time Important! Check the drive battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Only replace with the same type 6V rechargeable battery and charger supplied by the manufacturer. •... -
Page 15: Charging The Drive Battery
Charging the Drive Battery Driving control board WARNING: Risk of fire. Do not bypass or tamper. Charging Port Charger Port NOTE: Before first use, charge battery 10 to 12 hours. Charge Drive Battery after 1-2 hours of use or when the vehicle does not move at its normal speed. -
Page 16: Battery Replacement And Disposal
Drive Battery Replacement and Disposal The drive battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery: Remove the seat. -
Page 17: Troubleshooting Guide
Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem please contact Customer Service. NOTE: Vehicle should be turned off and fully changed before doing troubleshooting. Problem Possible Cause Solution... -
Page 18: Troubleshooting Guide
Troubleshooting Guide - continued Problem Possible Cause Solution Vehicle will not Poor contact of wires or Check that the battery connectors run when Switch is connectors are fi rmly plugged into each other. If pressed. wires are loose around the motor call Customer Service. - Page 19 Limited Warranty General: • Used in a manner contrary to the instructions • Part or model specifi cations are subject to and warnings in this Owner’s Manual change without notice. • This Limited Warranty is the only warranty Huff y will not be liable for incidental or for the product.
- Page 20 ANTES DE DEVOLVER EL RETOURNER AU MAGASIN, PRODUCTO A LA TIENDA, COMMUNIQUEZ AVEC LE SERVICE COMUNÍQUESE CON SERVICIO À LA CLIENTÈLE DE HUFFY. NOUS AL CLIENTE DE HUFFY. NOS VOUS AIDERONS VOLONTIERS AVEC COMPLACE AYUDARLO CON TOUT PROBLÈME CONCERNANT LES CUALQUIER PARTE O PROBLEMA PIÈCES OU LE MONTAGE!
