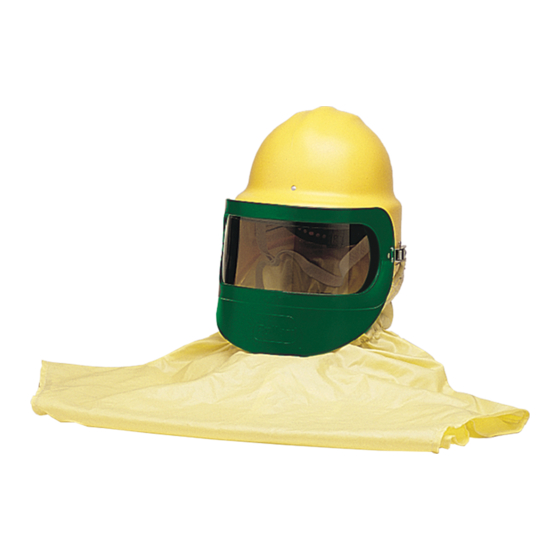

The Bullard 88VX Series airline respirators, when properly
used, provide a continuous flow of air from a remote air
source to the respirator wearer. 88VX Series respirators
offer protection from airborne contaminants that are not
immediately dangerous to life or health (IDLH), or that do
not exceed concentrations allowed by applicable OSHA,
EPA, NIOSH, ACGIH, or other regulatory standards and
recommendations.
88VX Series airline respirators are approved by NIOSH
(TC-19C-293 Type C and CE) to provide respiratory
protection in general purpose applications including heavy-
and light-duty abrasive blasting, and Type C and CE painting
applications. The protective helmet meets ANSI Standard
Z89.1-1997 Type 1 Class C requirements for protective
headwear for industrial workers. The cape is designed to
protect the worker's body from abrasive rebound.
88VX Series respirators are compatible with breathing air
sources such as breathing air compressors or Bullard
Free-Air
®
Pumps. Bullard offers the appropriate approved
breathing tube assembly and air supply hose to connect
the 88VX Series respirator to these breathing air sources.
88VX Series respirators are approved by NIOSH for use
with optional climate control devices offered by Bullard.
Table of Contents
Approval Label .......................................................... 2,3
Component Concept .................................................... 4
Warnings .................................................................... 5, 6
Cautions/Limitations....................................................7
Protection ........................................................................ 7
Breathing Air Requirements ........................................ 7, 8
Breathing Air Pressure .................................................... 9
Breathing Air Pressure Table .......................................... 9
Configurations ..................................................................10
Sizing the Headband ...................................................... 11
Installing Headband into Inner Shell ............................ 12
Attaching Cape to Helmet .............................................. 12
Installing Breathing Tube Assembly into Respirator
Read all instructions and warnings before using this respirator. Save this manual for future reference. Failure to follow
these instructions could result in death or serious injury.
88VX
TM
Series Airline Respirator
Helmet ............................................................................ 12
Using Climate Control Devices ...................................... 12
Respirator Use
Donning ............................................................................13
Doffing ..............................................................................13
Cape ................................................................................ 14
Headband and Chin Strap .............................................. 14
Helmet ............................................................................ 14
Lenses and Window Frame Gasket ................................ 14
Breathing Tube Assembly .............................................. 15
Air Supply Hoses ............................................................ 15
Storage ............................................................................ 15
Respirators .............................................................. 16-18
Return Authorizations ............................................ 19
WARNING
User Manual
Advertisement
Table of Contents
Related Manuals for Bullard 88VX Series
Summary of Contents for Bullard 88VX Series
-
Page 1: Table Of Contents
Pumps. Bullard offers the appropriate approved breathing tube assembly and air supply hose to connect the 88VX Series respirator to these breathing air sources. 88VX Series respirators are approved by NIOSH for use with optional climate control devices offered by Bullard. - Page 2 Bullard 1898 Safety Way Cynthiana, KY 41031-9303 877-BULLARD (285-5273) Model 88VX Series Type C and CE Continuous Flow Supplied-Air Respirator Approved Only in the Following Configurations: RESPIRATOR COMPONENTS ALTERNATE HOOD ALTERNATE CAPE ASSEMBLIES TC– PROTECTION MODEL ALTERNATE FLOW CONTROL DEVICE...
- Page 3 88VX Series Airline Respirator User Manual CAUTIONS ALTERNATE AIR HOSE ACCESSORIES LIMITATIONS X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X...
-
Page 4: Approval Label
Component Concept The Bullard 88VX Series airline respirators consist of Respirator Helmet Inner Shell with Breathing Tube three components (Figure 1): respirator helmet Suspension assembly, breathing tube assembly, and air supply hose. All components must be present and properly assembled Inner and Outer to constitute a complete NIOSH approved respirator. -
Page 5: Warnings
(appointed by your employer) who has extensive knowledge of Bullard 88VX Series respirators. 6. DO NOT modify or alter this respirator in any manner. Use only NIOSH approved 88VX Series components and replacement parts manufactured by Bullard for use with this respirator. -
Page 6: Warnings
13. Leave work area immediately if: -Any respirator component becomes damaged. -Airflow into respirator stops or slows down. -Air pressure gauge drops below the minimum specified in the Breathing Air Pressure Table in the 88VX Series User Manual. -Breathing becomes difficult. -
Page 7: Cautions/Limitations
C. Do not exceed maximum use concentrations established by regulatory standards. Eyes 88VX Series respirators DO NOT provide eye protection. D. Airline respirators can be used only when respirators Wear approved safety glasses or goggles at all times. are supplied with respirable air meeting the requirements of CGA G-7.1 Grade D or higher quality. -
Page 8: Breathing Air Pressure
Carbon dioxide ..... . 1,000 ppm max. 2. Be sure your Bullard air supply hose(s) (column 3) is Odor ......Lack of noticeable odor... -
Page 9: Breathing Air Pressure
Breathing Air Pressure Table This table defines the air pressure ranges necessary to provide 88VX Series respirators with a volume of air that falls within the required range of 6-15 cfm or 170-425 lpm according to U.S. Government regulations (42 CFR, Subpart J, 84.150, Table 8). -
Page 10: Typical Breathing Air Source And Respirator Configurations
Typical Breathing Air Source and Respirator Configurations Bullard Free-Air ® Pump Point-of-Attachment Bullard 88VX Series Airline Respirator Grade D Breathing Air Cylinder System Point-of-Attachment Air Control System Bullard Air Supply Hose Connection Fitting Point-of-Attachment Bullard 41 Series Airline Filter Suitable After-Cooler/Dryers with filters and... -
Page 11: Respirator Assembly
88VX Series Airline Respirator User Manual Respirator Assembly Helmet Back of helmet Before assembling this respirator, read the warning labels on the inside of the respirator cape and the helmet shell and this Helmet grove manual in full. Window latch Remove and read the warning card inserted between the respirator’s two lenses. -
Page 12: Installing Headband Into Inner Shell
Using Climate Control Devices Using the 20NC Chin Strap 88VX Series respirators are approved by NIOSH for use 1. Attach chin strap to inner shell by sliding chin strap with five optional Bullard climate control devices: AC1000... -
Page 13: Donning
Leave work immediately if: contaminants inside the helmet. - Any respirator component becomes damaged. 1. Connect the Bullard air supply hose that is part of the - Airflow into respirator helmet stops or slows down. NIOSH approved assembly to the air source supplying Grade D breathing air. -
Page 14: Inspection, Cleaning And Storage
The 88VX Series respirator and all component parts and assemblies should be inspected for damage or excessive If damage is detected, replace parts immediately with... -
Page 15: Breathing Tube Assembly
Bullard Lens Description Part No. Inner lens for 88VX Series Respirators (oval)..771B WARNING Outer lenses for 88VX Series Respirators (oval)..771... -
Page 16: Parts And Accessories For 88Vx Series Airline Respirators
Parts and Accessories for 88VX Series Airline Respirators 88VX Series supplied-air respirators consist of four components: 1.) respirator helmet assembly with breathing tube, 2.) cape, 3.) flow control device, and 4.) air supply hose. There are options for some components to fit customer specifications. - Page 17 With 1/4" Female NPT Hose-to-pipe, 3/8" hose to 3/8" pipe S17651 With 3/8" Female NPT Quick-Disconnect Couplers (Shut-off Type) To order replacement parts, contact your local Bullard 1/4" Industrial Interchange distributor or the Bullard Customer Service Department. With 1/4" Female NPT 366254 With 3/8"...
- Page 18 Cynthiana, KY 41031-9303 1/4" Snap-Tite (stainless steel) 1/4" Cejn 877-BULLARD (285-5273) 1/4" Bayonet Constant Flow Model 88VX Series F30B 1/4" Industrial Interchange (brass) Type C and CE Continuous Flow Supplied-Air Respirator F30S 1/4" Industrial Interchange (stainless steel) Approved Only in the Following Configurations: 1/4"...
- Page 19 88VX Series Airline Respirator User Manual 88VX Series Respirator Replacement Parts 88VXBT 88VXBT CH60 4612 4612 DC70ML ALTERNATE AIR DC70XLXXL Breathing Tube Assembly Constant Airflow ACCESSORIES Breathing Tube Assembly Adjustable Airflow CAUTIONS HOSE EVX35 EVX40 DC5040 Kit 88VXAK Kit 88VXRAK...
-
Page 20: Return Authorizations
Return Authorization The following steps must be completed before Bullard will accept any returned goods. Please read carefully. Follow the steps outlined below to return goods to Bullard for repair or replacement under warranty or for paid repairs: 1. Contact Bullard Customer Support by telephone or in writing at:...
