Bullard EVA Series User Manual

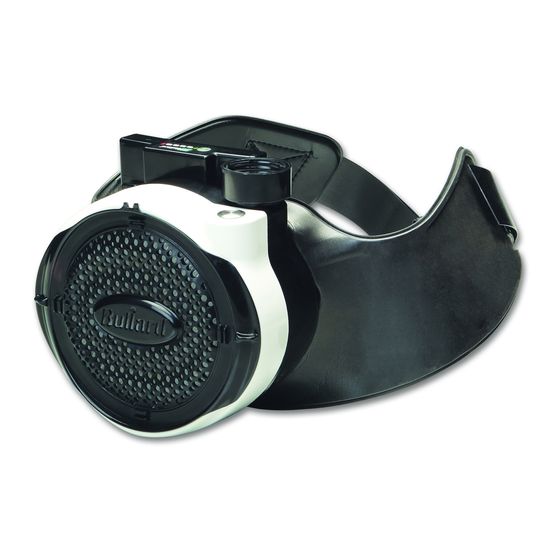

Airline respirator. powered air-purifying respirator blower assembly
Hide thumbs Also See for EVA Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Assembly & User Manual
General Information
Bullard's GR50 Series airline respirators, when
properly used, provide a continuous flow of air
from a remote air source, through a patented
air delivery system (U.S. Patent 4,484,575), to
the respirator wearer. GR50 Series respirators
offer protection from airborne contaminants that
are not immediately dangerous to life or health
(IDLH), or that do not exceed concentrations
allowed by applicable OSHA, MSHA, EPA, NIOSH
or ACGIH regulations and recommendations, or
any other applicable regulations.
GR50 Series airline respirators are approved by
NIOSH (TC-19C-329, Type C) to provide respiratory
protection in grinding operations and other
such general purpose applications. The GR50
is NOT intended for use in any abrasive
blasting operation.
GR50 Series respirators are compatible with
breathing air sources such as breathing air
compressors or Bullard Free-Air
offers the appropriate approved breathing
tube assembly and air supply hose to connect
the GR50 Series respirator to these breathing
air sources.
GR50 Series respirators are approved by
NIOSH for use with optional Bullard climate
control devices.
The GRH Hood of the GR50 Series can also be
configured for use with the Bullard EVA PAPR.
Refer to the EVA Manual for details.

Table of Contents

Approval Label ..................................................1,2
General Information ............................................3
Component Concept .........................................4, 5
Warnings ..........................................................6, 7
Operations.......................................................8-10
GR50 Respirator Assembly ...........................11-14
pumps. Bullard
®
GR50 Series Airline
Respirator User Manual
Type C Continuous-Flow Class
NIOSH Approval No. TC-19C-329
Not approved for abrasive blasting.
Read all instructions and warnings before
using this respirator. Save this manual for
future reference.
GR50 Respirator Use ....................................15,16
Inspection, Cleaning and Storage ................17,18
Respirators ...................................................19-22
Return Authorizations ........................................23

Advertisement

Table of Contents
loading

Related Manuals for Bullard EVA Series

Summary of Contents for Bullard EVA Series

  • Page 1: Table Of Contents

    NIOSH for use with optional Bullard climate control devices. The GRH Hood of the GR50 Series can also be configured for use with the Bullard EVA PAPR. Refer to the EVA Manual for details. Table of Contents Approval Label ..........1,2 GR50 Respirator Use ........15,16...

  • Page 2: Approval Label

    GR50 Series Airline Respirator User Manual GRH Series Approval Label Bullard MODEL GRH SERIES TYPE C CONTINUOUS FLOW SUPPLIED-AIR RESPIRATOR Cynthiana, KY 41031 USA 1-800-827-0423 THIS RESPIRATOR IS APPROVED ONLY IN THE FOLLOWING CONFIGURATIONS: RESPIRATOR COMPONENTS ALTERNATE FLOW CONTROL DEVICE...

  • Page 3: Component Concept

    Respirator User Manual Component Concept Component Concept (continued) Bullard GR50 Series airline respirators consist of four components (Figure 1). All must be present and 1. Respirator Hood properly assembled to constitute a complete NIOSH-approved respirator. 2. Headband or head protection 3.

  • Page 4: Warnings

    (appointed by your employer) who has extensive knowledge of the Bullard GR50 respirator. Cynthiana, KY 41031-9303 Toll-Free: 800-877-BULLARD 6. DO NOT modify or alter this respirator in any manner. Use only NIOSH- approved Bullard GR50 Phone: 859-234-6616 components and replacement parts manufactured by Bullard for use with this respirator.
  • Page 5 GR50 Series Airline Respirator User Manual Protection Breathing Air Requirements Air Source 2. Be sure your Bullard air supply hose(s) (Column 3) is approved for use with your Respiratory Air Quality Locate the source of supplied air, whether it is breathing tube assembly.
  • Page 6 This table defines the air pressure ranges necessary to provide GR50 Series respirators with a volume of air that falls within the (If using respirator with Bullard hard required range of 6-15 cfm or 170-425 lpm according to U.S. Government regulations (42 CFR, Part 84, Subpart J, 84.150, Table 8).
  • Page 7 If an optional 7. Loop the Velcro strip sewn inside the hood 1. Assemble and adjust the standard Bullard around the back of the cap and affix it to the chin strap is desired, refer to the list of replace-...
  • Page 8 1. Follow the instructions supplied with your climate control device. 7. Tuck inner bib of hood into shirt or protective 2. Be sure to use only the Bullard breathing tube clothing for additional splash and overspray approved for your climate control device (see protection (see Figure 18).

  • Page 9: Inspection, Cleaning And Storage

    I.D.) air supply hose, the hose respirator and with air still flowing. Once outside Bullard GR50 Series respirators have a limited opposite directions. quick-disconnect coupler does contaminated area, remove respirator and then service life.

  • Page 10: Parts And Accessories For Gr50 Series Airline Respirators

    It does not filter assembled, including a Bullard air supply hose, to constitute a complete NIOSH-approved respirator or purify your breathing air. NIOSH has approved Remove the headband suspension and optional (Approval No.
  • Page 11 50’ Starter hose with 1/4” Schrader Q.D. coupler Order DUAL-COOL tube separately. V52532 25’ Starter hose with 1/4” Snap-Tite Q.D. Frigitron® 2000 for use with Bullard EDP30 coupler Free-Air® Pumps (does not include breathing V55032 50’ Starter hose with 1/4” Snap-Tite Q.D.

  • Page 12: Return Authorizations

    IMPORTANT: THE FOLLOWING STEPS MUST BE COMPLETED BEFORE E.D. BULLARD COMPANY WILL ACCEPT ANY RETURNED GOODS. PLEASE READ CAREFULLY. Follow the steps outlined below to return goods to E.D. Bullard Company for repair or replacement under warranty or for paid repairs: Clamp 1.
  • Page 13 GR50 Series Airline Respirator User Manual ISO 9001 certified ©2010 Bullard. All rights reserved. 6081850020C (1010) Americas: Europe: Asia-Pacific: E.D. Bullard Company Bullard GmbH Bullard Asia Pacific Pte. Ltd. 1898 Safety Way Lilienthalstrasse 12 LHK Building Cynthiana, KY 41031-9303 53424 Remagen • Germany...
  • Page 14 EVA Series respirator. B. Not for use in atmospheres immediately dangerous to life or health. 1. The EVA Series respirator does not supply oxygen. Use only in adequately ventilated areas containing at least 19.5% oxygen. C. Do not exceed maximum use concentrations established by regulatory standards.

  • Page 15: Principle Of Operation

    EVABELT1, EVABELT2 - Comfort Belt, Decon Belt The EVA Series Blower is equipped with two alarms: A 77 db continuous alarm will PA1AFI Air Flow Indicator sound when the air flow falls below approximately 185 lpm and a 77db intermittent 2.

  • Page 16: Pre-Operational Inspection

    EVA Series Powered Air-Purifying Respirator Blower Assembly User Manual NOTE WARNING Each filter comes with a permanent gasket. DO NOT charge batteries in hazardous areas. • Ensure that the correct filter/cartridge is appropriate for the contaminant. • Consult the NIOSH approval label and your own in-plant safety professional if...
  • Page 17 • Check that the threads in the blower unit port are in good condition and clear of contaminant. Use ONLY Bullard filter/cartridges which comply with and have the NIOSH • Screw the air-purifying elements into the receptacles (see Figure 8) until the approval label and which are appropriate for the contaminant.
  • Page 18 • Ensure that the filter/cartridges used are suitable for the contaminant in 1. Assemble and adjust the standard Bullard hard hat suspensions RS4PC or question and are compatible with the EVA1 Blower Unit. RS6PC or the optional ratchet suspensions RS4RC or RS6RC by following the •...

  • Page 19: Rt Series Hood Use

    4. Tuck inner bib of hood into shirt or protective clothing if using hood with Installing Breathing Tube Assembly in CC20 or GRH Hoods inner bib (see Figure 26). For hoods without a threaded To remove 5. Pull respirator outer bib over collar of shirt or protective clothing. port at the rear, Breathing Tubes PA1BT, PA1BTXS and PA1BTXL will 6.

  • Page 20: Loose-Fitting Facepiece Use

    EVA Series Powered Air-Purifying Respirator Blower Assembly User Manual Final Donning WARNING The user should ensure that the neck cuff is unrestricted all around the neck Front Back to allow proper inflation and reduce restrictions. Battery run time will be reduced by a restricted or improperly donned hood.

  • Page 21: Low Battery Alarm

    If the problem persists and no damage is found, return equipment for repair Blower unit does not run full service life Damaged Battery Return battery for analysis Malfunctioning Battery Charger Return charger for analysis Hood neck cuff is restricting flow Adjust neck cuff position www.bullard.com...

  • Page 23: Warranty

    Failure to observe the instructions and warnings in this manual invalidates all performance statements and approvals for this equipment and could result in In no event shall Bullard be responsible for damages for loss of use or other indirect, death or serious injury.

  • Page 24: Ordering Information

    20SICVH/20SICVHT Tychem 4000 (SL) Hard hat not included, taped and sealed seams, PVC lens PA1BTXL Hood breathing tube assembly; includes tube and clamp; long length Double bib grinding hood for use with Bullard hard hat or suspension* PA20LFBT Loose fitting facepiece breathing tube assembly; standard length...
  • Page 25 ISO 9001 certified Americas: Europe: Asia-Pacific: Bullard Bullard GmbH Bullard Asia Pacific Pte. Ltd. 1898 Safety Way Lilienthalstrasse 12 LHK Building Cynthiana, KY 41031-9303 53424 Remagen • Germany 701, Sims Drive, #04-03 Toll free: 877-BULLARD (285-5273) Tel: +49-2642 999980 Singapore 387383 ©2017 Bullard.
