Bullard EVA series Assembly & User Manual

Cautions and Limitations
A. Not for use in atmospheres containing less than 19.5% oxygen.
B. Not for use in atmospheres immediately dangerous to life or health.
C. Do not exceed maximum use concentrations established by
regulatory standards.
F. Do not use respirator if airflow is less than four cfm (115 lpm) for tight
fitting face pieces or six cfm (170 lpm) for hoods and/or helmets.
H. Follow established cartridge and canister change schedules or
observe ESLI to ensure that cartridges and canisters are replaced
before breakthrough.
I. Contains electrical parts that may cause an ignition in flammable or
explosive atmospheres.
J. Failure to properly use and maintain this product could result in injury
or death.
L. Follow the manufacturer's user instructions for changing cartridges and/
or filters.
M. All approved respirators shall be selected, fitted, used and maintained in
accordance with MSHA, OSHA and other applicable regulations.
N. Never substitute, modify, add or omit parts. Use only exact Bullard
replacement parts in the configuration as specified by the manufacturer.
O. Refer to User's Instructions and/or maintenance manuals for information
on use and maintenance of these respirators.
P . NIOSH does not evaluate respirators for use as surgical masks.
* At very high work rates, the pressure in the respirator may become
negative at peak inhalation flow

Table of Contents

Warnings, Cautions and Limitations ............................................................... 1
Principle of Operation .................................................................................... 2
Battery Pack ..................................................................................................... 2
Pre-Operational Inspection ............................................................................. 3
Mounting the Breathing Tube ........................................................................... 3
Checking Air Flow ............................................................................................ 4
Air-Purifying Elements .................................................................................... 4
Mounting and Replacing Cartridges ................................................................ 4

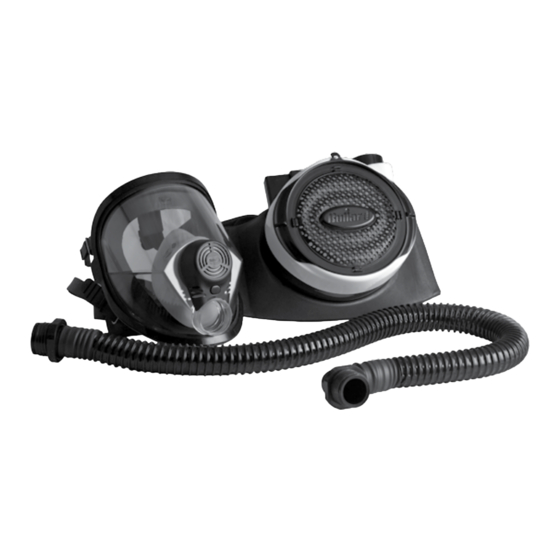

EVA Series Powered Air-Purifying Respirator
(Incorporating the Bullard Spectrum Series® Full Face Mask)
Powered Air-Purifying Respirator with OV-AG-HE Filter Cartridges for organic
vapors, chlorine, hydrogen chloride, sulfur dioxide, chlorine dioxide, hydrogen
Use strictly in accordance with instructions, labels and limitations
pertaining to the EVA Series respirator.
1. The EVA Series respirator does not supply oxygen. Use only in
adequately ventilated areas containing at least 19.5% oxygen.
2. Do not use when concentrations of contaminants are immediately
dangerous to life or health (IDLH).
This term is defined in 29CFR 1910.134 (b).
3. Do not use these respirators for respiratory protection during
abrasive blasting or clean up.
4. Do not use in circumstances where the airborne concentration level
of contaminant exceeds maximum use concentration for this type of
respirator as established by regulatory standards.
5. Leave area immediately if:
• Breathing becomes difficult
• Dizziness or other distress occurs
• You taste or smell the contaminant
• Unit becomes damaged
• Battery alarm activates
• Low Flow alarm activates
6. This apparatus must not be worn with the blower unit switched off.
If the blower is switched off, a rapid build-up of carbon dioxide and
depletion of oxygen may occur, which could result in death or
serious injury.
7. Never alter or modify this respirator. Use only Bullard NIOSH-
approved EVA Series components and replacement parts for
this respirator.
8. This device is not immune to highly powered RFI/EMI emissions.
Failure to follow these warnings could result in death or serious injury.
Donning the Blower ........................................................................................ 5
Doffing the Blower / Low Battery Alarm ........................................................ 6
Troubleshooting ............................................................................................... 7
NIOSH Approval Label .................................................................................... 8
Inspection and Cleaning .................................................................................. 9
Fit Testing / Warranty / Return Authorization .............................................. 10
Diagram .......................................................................................................... 11
Order Information .......................................................................................... 12
www.bullard.com
Blower Assembly User Manual
Powered Air-Purifying Respirator with High Efficiency (HE) Filters -
�
WARNING
Approval No. TC-21C-0844
fluoride and particulates -
Approval No. TC-23C-2512
