Type C NIOSH Approval No.

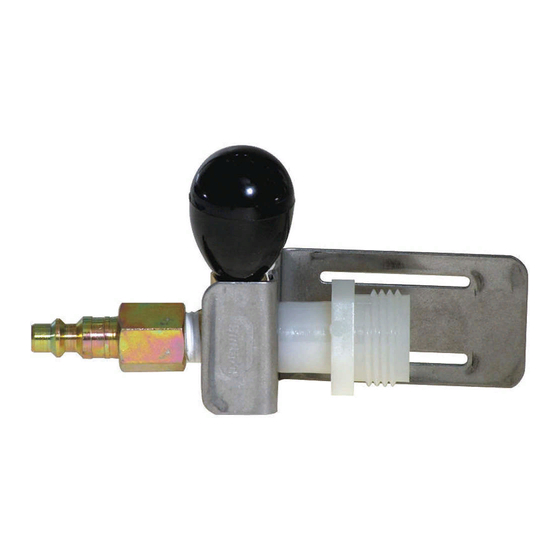

TC-19C-0505 Continuous-Flow Class - F30 Series Flow Control
TC-19C-0506 Continuous-Flow Class - F40 Series Flow Control
TC-19C-0507 Continuous-Flow Class - AC1000 Series Flow
TC-19C-0508 Continuous-Flow Class - HC2400 Series Flow
TC-19C-0509 Continuous-Flow Class - CT Series Flow Control
TC-19C-0510 Continuous-Flow Class - HCT Series Flow Control
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS
RESPIRATOR. SAVE THIS MANUAL FOR FUTURE USE.
Table of Contents
APPROVAL LABEL .............................................................................................2-7
EXPLODED VIEW DIAGRAM ............................................................................... 8
GENERAL INFORMATION .................................................................................... 9
COMPONENT CONCEPT ...................................................................................... 9
WARNINGS ..................................................................................................10, 11
OPERATIONS ..................................................................................................... 12
RESPIRATOR ASSEMBLY
Putting Respirator On ............................................................................... 20
Taking Respirator Off ................................................................................ 20
INSPECTION, CLEANING AND STORAGE ......................................................... 21
FIT TESTING ...................................................................................................... 21
PARTS AND ACCESSORIES FOR SPECTRUM RESPIRATORS .......................22-23
RETURN AUTHORIzATIONS .............................................................................. 23
Spectrum Series® Continuous Flow Airline
Control
Control
www.bullard.com
Respirator Instruction Manual
Advertisement
Table of Contents
Related Manuals for Bullard Spectrum Series
Summary of Contents for Bullard Spectrum Series
-
Page 1: Table Of Contents
Spectrum Series® Continuous Flow Airline Respirator Instruction Manual Type C NIOSH Approval No. TC-19C-0505 Continuous-Flow Class - F30 Series Flow Control TC-19C-0506 Continuous-Flow Class - F40 Series Flow Control TC-19C-0507 Continuous-Flow Class - AC1000 Series Flow Control TC-19C-0508 Continuous-Flow Class - HC2400 Series Flow... -
Page 2: Approval Label
www.bullard.com... - Page 3 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual www.bullard.com...
- Page 4 www.bullard.com...
- Page 5 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual www.bullard.com...
- Page 6 www.bullard.com...
- Page 7 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual www.bullard.com...
-
Page 8: Exploded View Diagram
19. AC1000 Series Cool Tube 20. CT Series Cool Tube 21. HC2400 Series Hot/Cold Tube 22. HCT Series Hot/Cold Tube 23. LC Mylar Lens Covers (25/pkg.) * Packaged as replacement parts in quantities of 4 or 5 (See page 11). www.bullard.com... -
Page 9: General Information
Higher Air Quality (See Breathing Air Requirements on page 12) � WARNING Failure to use complete NIOSH-approved Bullard components and replacement parts voids approval of entire assembly. Basic parts are listed on the NIOSH Approval Label on Pages 1 and 2. www.bullard.com... -
Page 10: Warnings
(as described in item 2 above). Bullard recommends that you DO NOT wear this respirator until you have passed a complete physical exam (perhaps including a lung x-ray), conducted by qualified medical personnel, and have been trained in the respirator’s use, maintenance and limitations by a qualified individual (appointed by your employer) who has extensive knowledge of the Bullard Spectrum respirator. - Page 11 Bullard for use with this respirator. Failure to use NIOSH approved components and replacement parts such as hoses and flow-control devices, voids NIOSH approval of the entire respirator, invalidates all Bullard warranties, and may cause death, lung disease or exposure to other hazardous or life-threatening conditions.
-
Page 12: Operations
Subpart J.84.150) when operated in continuous-flow mode. Make sure you understand the information in the Breathing Air Pressure Table (see page 10) before using this respirator. AIR QUALITY 1. Be sure your Bullard air supply hose(s) (column 1) is approved for use � with your breathing tube assembly. WARNING 2. -
Page 13: Special User Instructions / Breathing Air Pressure Table
Breathing Air Supply Hoses and Hose Fittings NIOSH-approved Bullard air supply hose(s) MUST be used between the breathing tube connection fitting on the wearer’s belt and the point-of-attachment to the air supply (see Figure 1). NIOSH-approved Bullard quick-disconnect fittings MUST be used to connect V20 hose lengths together. When connecting lengths of V10 hose, only use Bullard V11 hose-to-hose adaptors. - Page 14 F37 - CEJN 21-36 F38 - Bayonet 21-36 F30 - Industrial Interchange 23-40 F31 - Schrader 23-40 F32 - Snap-Tite 23-40 F33 - Snap-Tite Brass 23-40 F34 - Snap-Tite Stainless 23-40 F37 - CEJN 23-40 F38 - Bayonet 23-40 www.bullard.com...
- Page 15 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual SPECIAL USER INSTRUCTIONS: Breathing Air Pressure Table for F40 Series Hose Length (ft.) Fitting Max. Number of Hose Sections Pressure Range (psi) F40 - Industrial Interchange 14-16 F41 - Schrader 14-16 F42 - Snap-Tite...
- Page 16 AC100037 - CEJN 47-75 AC100038 - Bayonet 47-75 AC100030 - Industrial Interchange 50-77 AC100031 - Schrader 50-77 AC100032 - Snap-Tite 50-77 AC100033 - Snap-Tite Brass 50-77 AC100034 - Snap-Tite Stainless 50-77 AC100037 - CEJN 50-77 AC100038 - Bayonet 50-77 www.bullard.com...
- Page 17 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual SPECIAL USER INSTRUCTIONS: Breathing Air Pressure Table for HC2400 Series Hose Length (ft.) Fitting Max. Number of Hose Sections Pressure Range (psi) HC240030 - Industrial Interchange 42-62 HC240031 - Schrader 42-62 HC240032 - Snap-Tite...
- Page 18 CT38 - Bayonet 56-57 CT30 - Industrial Interchange 58-59 CT30SW - Industrial Interchange Swivel 59-62 CT31 - Schrader 58-59 CT32 - Snap-Tite 58-59 CT33 - Snap-Tite Brass 58-59 CT34 - Snap-Tite Stainless 58-59 CT37 - CEJN 58-59 CT38 - Bayonet 58-59 www.bullard.com...
- Page 19 HCT38 - Bayonet 61-69 HCT30 - Industrial Interchange 60-72 HCT30SW - Industrial Interchange Swivel 66-78 HCT31 - Schrader 60-72 HCT32 - Snap-Tite 60-72 HCT33 - Snap-Tite Brass 60-72 HCT34 - Snap-Tite Stainless 60-72 HCT37 - CEJN 60-72 HCT38 - Bayonet 60-72 www.bullard.com...
-
Page 20: Putting Respirator On
THIS PART PROTECTS THE EXHALATION VALVE FROM OUTSIDE flow control device. INTERFERENCE (ITEM 5, PAGE 8). 5. Connect the NIOSH-approved Bullard air supply hose to the air Taking Respirator Off (Doffing) source supplying Grade D breathing air. 1. When finished working, leave the work area wearing the respirator with the 6. -
Page 21: Inspection, Cleaning And Storage
This PARTS OR ASSEMBLIES. STRONG CLEANING AND DISINFECTING AGENTS, includes all respirator models in the Spectrum Series. Users must pass either AND MANY SOLVENTS, CAN DAMAGE THE SILICONE RUBBER AND PLASTIC a qualitative or quantitative fit test, and fit testing must be performed in the PARTS. -
Page 22: Parts And Accessories For Spectrum Respirators
SPECHC2400038S HC2400 Series Hold/Cold Tube Assembly with Bayonet Nipple 1b. Respirator Assemblies - includes full face mask, breathing tube, flow control device, and belt For Use With Bullard Free Air Pumps or Compressed Air SPEC35L SPEC35S Constant Flow Assembly with F35 Industrial Interchange (Hansen Compatible) Nipple... - Page 23 Spectrum Series® Continuous Flow Airline Respirator Instruction Manual PARTS AND ACCESSORIES FOR SPECTRUM RESPIRATORS 2. Replacement Breathing Tubes V20 Series Starter Hoses (1/2” I.D.) - include 1/2” coupler on one end, 1/2” male nipple on other SPECBT Breathing Tube V2050ST 50’...
-
Page 24: Return Authorizations
5. Returned products will be inspected upon return to the Bullard facility. Your Customer Service Coordinator will telephone you with a quote for required repair work which is not covered by warranty. If the cost of repairs exceeds stated quote by more than 20%, your Coordinator will call you for authorization to complete repairs.
