Summary of Contents for Fanimation Levon FP7910OB

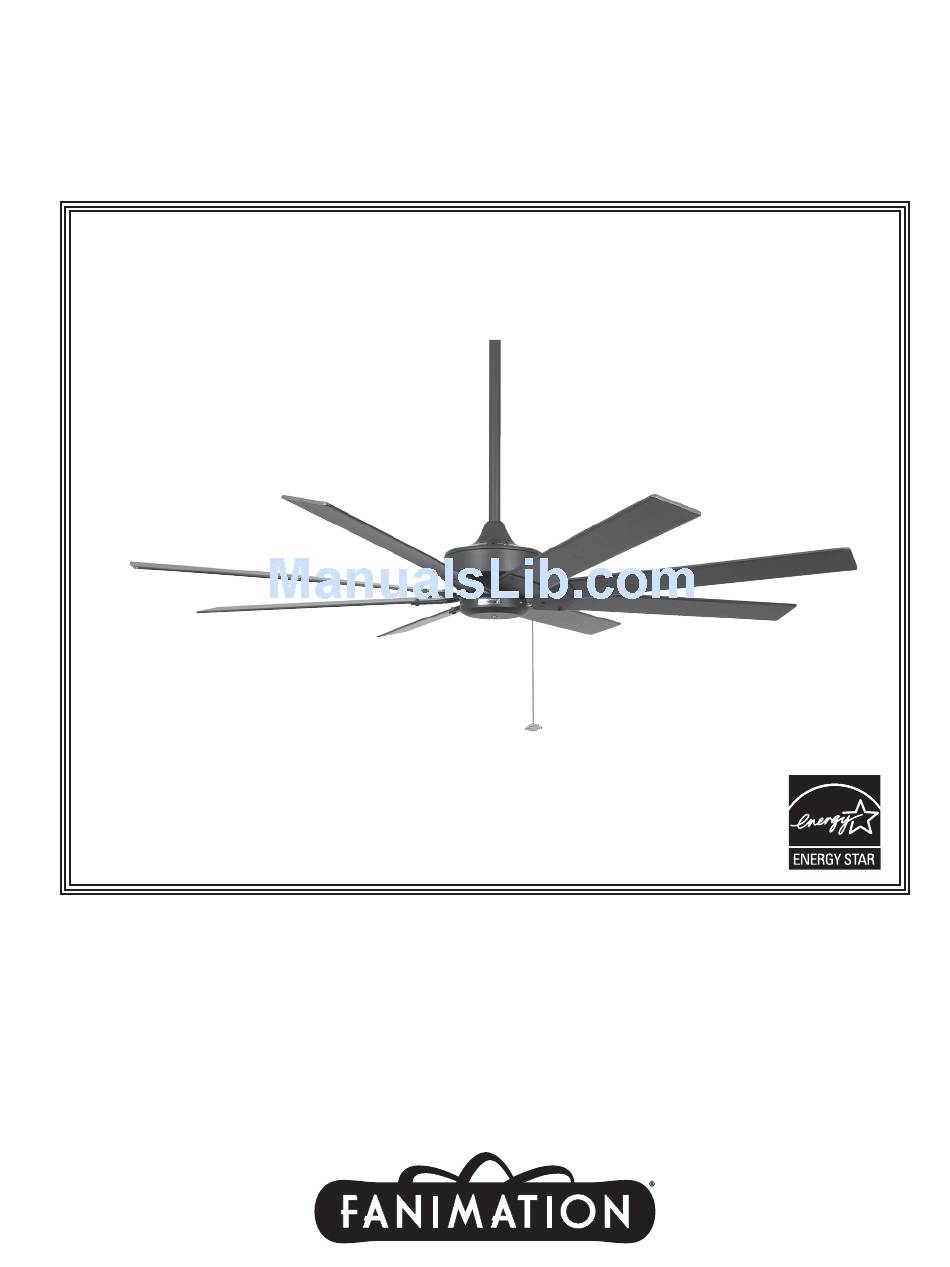

- Page 1 ™ The Levon 8-Bladed Ceiling Fan Net Weight 12.0 kg (26.5 lbs) Model No. FP7910OB OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
– Phillips screwdriver, 4˝ Fanimation. Substitution of parts or accessories not • Motor Coupling Cover – Two 5/32˝ threaded rods designated for use with this product by Fanimation could • Blade Holders – Two 5/32˝ lockwashers • Blades (8) result in personal injury or property damage. Contact –... -
Page 4: Energy Effi Cient Use Of Ceiling Fans
8 - 9 feet above the floor for optimal airflow. Consult your down into the occupied space.Remember to adjust your Fanimation Retailer for optional mounting accessories. thermostat when using your ceiling fan - additional energy and dollar savings could be realized with this simple step! Turn Off When Not in the Room Ceiling fans cool people, not rooms. -
Page 5: How To Assemble Your Ceiling Fan
How to Assemble Your Ceiling Fan 1. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod. (Figure 1) Remove the Pin from the Downrod, then remove the Hanger Ball. Retain the Pin and Hanger Ball for reinstallation in Step 5. -
Page 6: How To Hang Your Ceiling Fan
How to Hang Your Ceiling Fan ▲WARNING Ceiling To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire Your Ceiling Fan - Pull Chain
How to Wire Your Ceiling Fan - Pull Chain If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING Black To avoid possible electrical shock, be sure electricity is Fan Wire Listed Black... -
Page 8: Assembling And Mounting The Fan Blades, And Switch Housing
Assembling and Mounting the Fan Blades and Switch Hsg INSTALLATION NOTE Do not connect fan blades until the fan is completely installed. Installing the fan with blades assembled may result in damage to the fan blades. ▲WARNING To reduce the risk of personal injury, do not bend the blade holders when installing, balancing the blades or cleaning the fan. -
Page 9: Operating Instructions - Pull Chain
Assembling and Mounting the Fan Blades and Switch Hsg 10. Assemble the Housing Switch Cup onto the assembled Adapter with three screws. (Figure 6) 11. Restore Power and your fan is now wired to be turned on and off from the fan pull chain speed control. Figure 6 Operating Instructions - Pull Chain 1. -
Page 10: Parts List
Parts List Model FP7910OB Downrod/Hanger Ball Assembly Containing: Hanger Ball Assembly Downrod ADR1-6OB Clevis Pin Hairpin Clip n i l n i l AP1115OB AMA7910OB c t i Wiring Harness (part of Switch Cup Housing/Adapter assembly) AP5006 AP880001OB Hardware Bag Containing: HDWFP7910SS ”... -
Page 11: Exploded-View Drawing
The Levon – FP7910OB ™ Exploded-View Figure 1 NOTE: The illustration shown is not to scale or its actual confi guration or fi nishes may vary... -
Page 12: Trouble Shooting
Trouble Shooting ▲WARNING For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble Probable Cause Suggested Remedy 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers. - Page 14 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2009 Fanimation 2009/07...
