Installation Method - Commax D PV-4LH User Manual

Monitor
T4 18
Wall bracket Mounting Screw Monitor Fixing Screw
6
Wall bracket Manual
M 3 6 2P 4P
Connector

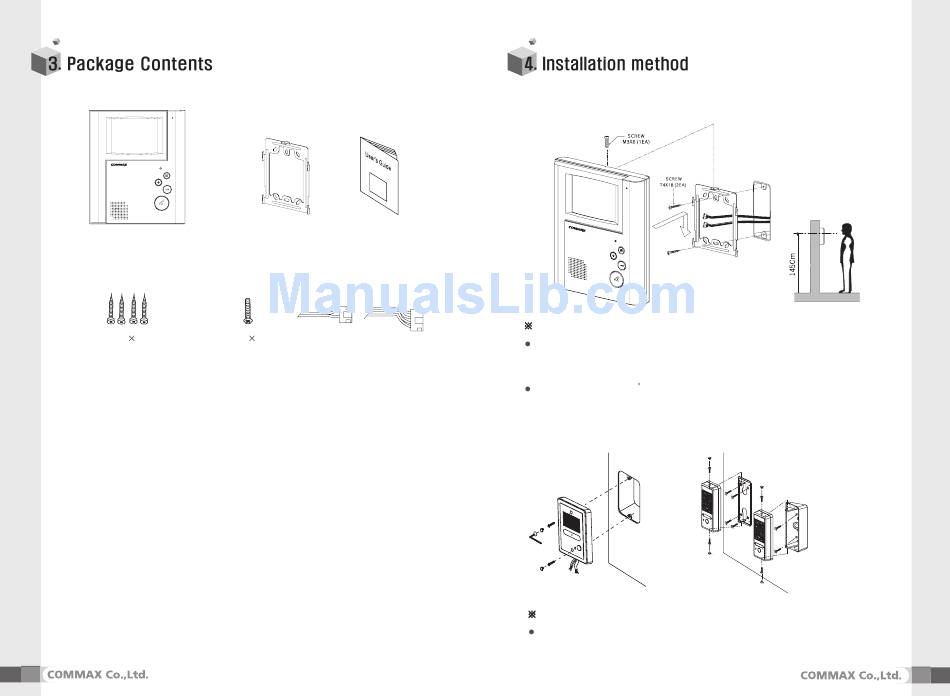

1) Installation method of monitor
CAUTION:
Do not install near magnetic activity, humid temperatures,
extreme heating conditions, and under direct sunlight as these may damage
the condition and performance of the product.
The position of the unit s body should fit the standard height from the ground
range which is recommended to be from 1450~1500mm.
2) Installation method of camera (DRC-4BG/ DRC-4BPas shown below)
DRC-4BG
CAUTION:
For the clearest picture quality, do not install under areas
that have a strong source of reflective light.
DRC-4BP
