Summary of Contents for INSTEON ApplianceLinc 2456S

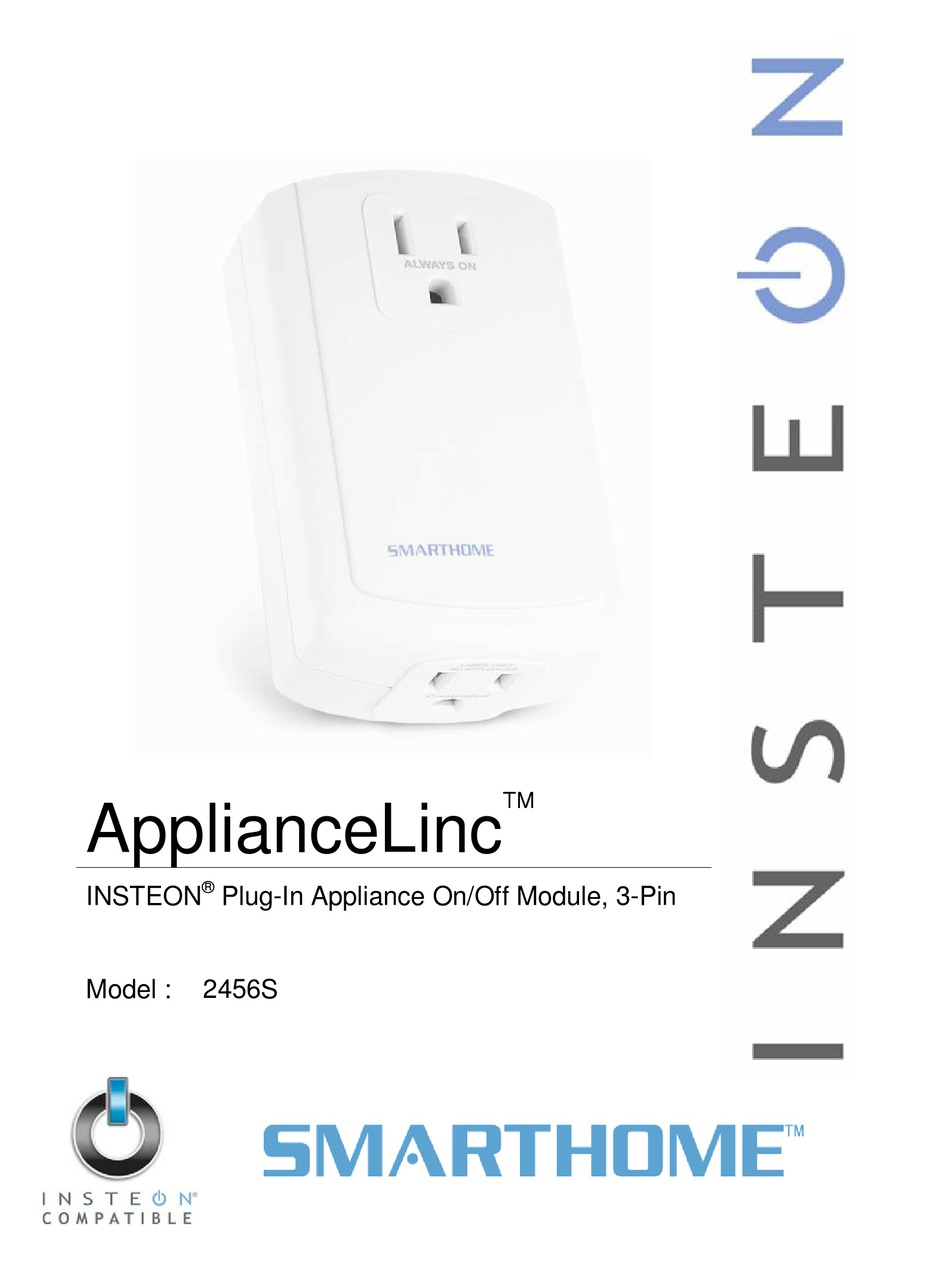

- Page 1 ApplianceLinc ® INSTEON Plug-In Appliance On/Off Module, 3-Pin Model : 2456S...
-
Page 2: Table Of Contents
Remotely Removing an X10 Scene Address .................... 9 ABOUT INSTEON ............................10 Using Dual-Band INSTEON Devices to Upgrade Your Network ............. 10 Important Note about INSTEON Networks; Split Single-Phase vs. 3-Phase Installation......10 Further Enhancing Reliability ........................10 ADDITIONAL RESOURCES ........................10 TROUBLESHOOTING .......................... -
Page 3: Appliancelinc Owner's Manual
ApplianceLinc Owner’s Manual ABOUT APPLIANCELINC ApplianceLinc presents you with an elegant and stylish way to remotely control any plug-in device in your home at the touch of a button. Send commands to ApplianceLinc from any INSTEON Controller. Pass-through outlet Set button... -
Page 4: What Is Insteon
Reliable, because every INSTEON device works as a network repeater, ensuring your commands will not be lost. Affordable, because INSTEON can be integrated into any number of devices easily and at a very low cost. An INSTEON home grows in value with each added INSTEON device, making life more convenient, safe, and fun. -
Page 5: Installing Appliancelinc
ApplianceLinc Owner’s Manual • Don’t stack INSTEON home automation devices together by plugging them into one another. Stacked modules may overheat and stop functioning. • Don’t use ApplianceLinc to control devices that preserve, maintain, or contribute to human or animal safety or life support... -
Page 6: Controlling Appliancelinc From An Insteon Controller
Controller. INSTEON scenes are very easy to set up – just Link more than one Responder to the same On/Off or Scene button on a Controller. Then, when you tap any of the Linked buttons on the Controller, all of the INSTEON devices Linked in the scene will respond as a group. -
Page 7: Advanced Features
Load Sensing allows you to manually turn on the load plugged into ApplianceLinc by using the switch on the load itself, without sending a command from an INSTEON or X10 controller. When the load is in the off state (with Load Sensing enabled), ApplianceLinc will “sense” that you are trying to turn it on with its built-in switch. -
Page 8: X10 Programming Options
ApplianceLinc Owner’s Manual X10 PROGRAMMING OPTIONS ApplianceLinc is X10 ready, meaning that it can respond to X10 commands from X10 controllers. However, to operate ApplianceLinc in X10 mode, you must first set up an X10 Primary Address. As it ships from the factory or after a factory reset procedure, ApplianceLinc will not have an X10 Primary Address set up. -
Page 9: Advanced X10 Programming Options
ApplianceLinc Owner’s Manual ADVANCED X10 PROGRAMMING OPTIONS ApplianceLinc can be a member of up to 255 X10 scenes. An X10 scene address is just another X10 address like the X10 Primary Address. When an X10 ON command is sent to an X10 scene address, every X10 device with that address will turn on to its independent On-Level at its independent Ramp Rate (if a dimmable device). -
Page 10: About Insteon
It is possible that some audio-video devices, computers, power strips, or other electrical equipment may attenuate INSTEON signals on the power line. You can temporarily unplug suspected devices to test whether the INSTEON signal improves. If it does, then you can plug in filters that will permanently fix the problem. ADDITIONAL RESOURCES... -
Page 11: Troubleshooting
Unlinking Re-Link ApplianceLinc to the Controller. ApplianceLinc from it. The Controller and Make sure two dual-band INSTEON devices are properly ApplianceLinc may be on installed to bridge the two power line phases. opposite power line phases. Add additional INSTEON devices or move around existing The INSTEON signal may be INSTEON devices. -
Page 12: Specifications, Certification, And Warranty
For repair or replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an RMA# and send the product, along with all other required materials to: Smarthome, Inc.
