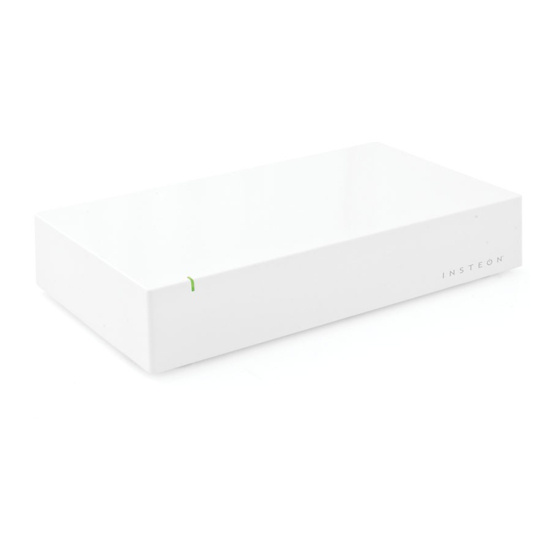

INSTEON 2242-222 Owner's Manual
Hide thumbs
Also See for 2242-222:
- Owner's manual (26 pages) ,
- Quick start manual (8 pages) ,
- Quick start manual (13 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for INSTEON 2242-222
Summary of Contents for INSTEON 2242-222

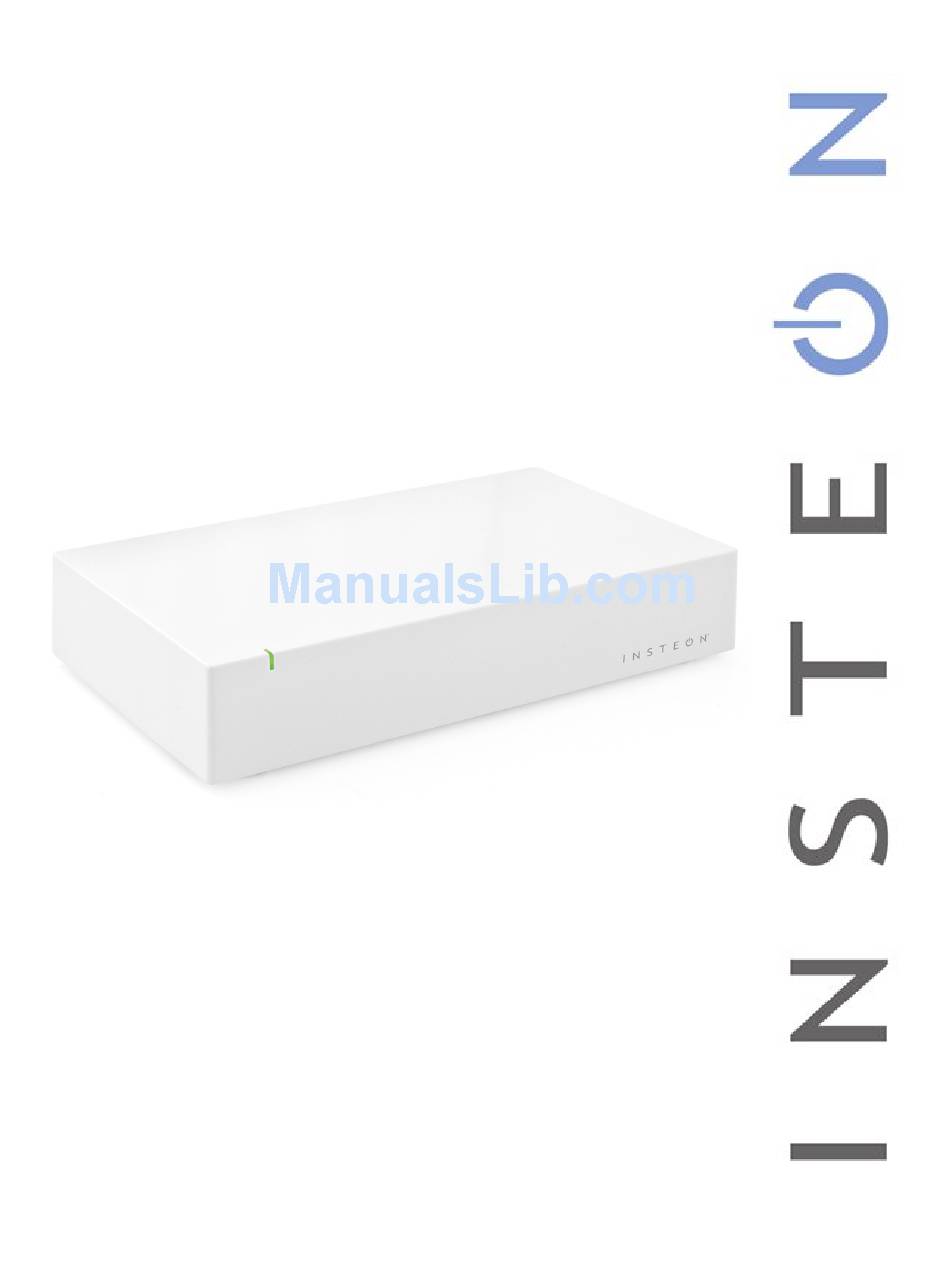

- Page 1 ® INSTEON Owner’s Manual 2242-222 Page 1 of 23 Rev: 12/27/2012 12:12 PM...
-
Page 2: Table Of Contents
Features and Benefits..............................3 Installation ..................................3 Getting Started ................................4 Option 1: Use Hub with Smartphone/Tablet ........................ 4 Option 2: Use Hub with INSTEON Compatible Software .................... 4 Mount Hub on Wall (optional) ............................4 Account Creation ................................6 Login .................................... 7 Hub Installation ................................ -
Page 3: About Insteon Hub
If the manufacturer of the load device does not recommend dimming, use a non-dimming INSTEON on/off switch. -
Page 4: Getting Started
Smartphone or tablet running iOS or Android Launch and follow the onscreen instructions Once your INSTEON Hub has been configured and devices added, you may also access and have control of INSTEON devices from any browser by visiting https://connect.insteon.com Option 2: Use Hub with INSTEON Compatible Software Do not use this option if you are using or plan to use the Hub with the What you’ll need... - Page 5 Leave head screw approximately 6.35mm (.25”) gap for proper mounting of Hub Page 5 of 23 Rev: 12/27/2012 12:12 PM...
-
Page 6: Account Creation
1. Create New Account a. Select this if you do not already have an INSTEON Hub account 2. I already have an INSTEON Account a. Select this if you have already created an existing INSTEON Hub account. -
Page 7: Login
When you click on the link in the email, you will be taken to the connect.insteon.com web page and receive a confirmation message indicated that the account has been successfully created. -
Page 8: Hub Installation
Display all devices, sensors, scenes and cameras added in the app. Temperature If you have an INSTEON thermostat, the temperature will be displayed here. Tapping the icon will take you directly to the thermostat control screen. Page 8 of 23... -
Page 9: Device And Sensor Status Indicators
Device and Sensor Status Indicators Spinning Getting status Green Device is on White Device is off / sensor is “OK” Sensor is activated Yellow Status is unknown Page 9 of 23 Rev: 12/27/2012 12:12 PM... -
Page 10: Thermostat
Main thermostat which one will be reporting in the navigation bar Units Select Fahrenheit or Celsius** * Feature coming soon ** Not currently supported for INSTEON Venstar Adapter Page 10 of 23 Rev: 12/27/2012 12:12 PM... -
Page 11: Devices
Devices To control a device, click on the devices icon Tap a device icon to control it Control pop-up Choose between turning the device on or off. Tap More to enter the full device control screen for dimming and brightening. Tap Cancel to close the window. - Page 12 Schedule Set a timer for the device Receive an alert (text Alerts message/email) when the device is activated The devices unique identification INSTEON ID number Access product documentation and Documentation setup video* * Feature coming soon Page 12 of 23...
-
Page 13: Rooms
Rooms Add a Room 1) Tap the settings button and tap Edit Settings 2) Tap Rooms 3) Tap Add at the top right 4) Give the new Room a name, then tap Done 5) Select the room icon, then tap Add 6) Select a Device or Scene to add to room, when finished tap Done Schedules Devices and scenes can be activated based on time of day, day of week or by sunrise or sunset. - Page 14 8) When finished tap Save to save your new schedule Page 14 of 23 Rev: 12/27/2012 12:12 PM...
-
Page 15: Scenes
4) Adjust the scene members by tapping each one or use the current state displayed. If you wish to also activate the scene from an INSTEON sensor, select them from the list. When finished tap Save Scene The app will begin linking to each scene member If a sensor was selected, follow the onscreen instructions for adding them to the scene as a controller 5) When finished, the app will ask if you want to turn the scene members off –... - Page 16 Scene control differs from regular device control since devices within a scene may be set to turn off when the scene is turned on (activated). All devices within the scene will turn off when the off button is tapped. Double tapping the on button will turn all scene members full-on instantly regardless of programmed scene state.
-
Page 17: Troubleshooting
Wizard. If you are unable to resolve your issue after reviewing these solutions, please send an email to support@insteon.com and be sure to include your INSTEON Hub ID (located on the bottom of the Hub) and your username and password. -
Page 18: Factory Reset
If you have already set up the Hub in the app, you must first delete your account prior to factory resetting the Hub. If you have added any INSTEON devices to the app, it is strongly recommended that you factory reset those devices prior to deleting your account and factory resetting the Hub. -
Page 19: Specifications
1) Remove power from INSTEON Hub 2) Press and hold INSTEON Hub set button. Do not let go. 3) While continuing to press and hold the set button re-apply power to INSTEON Hub INSTEON Hub will begin to emit a long beep... - Page 20 Incremental brighten Incremental dim Beep Software configurable RF range Up to 50 meters (150 feet) open air Phase bridge detect beacon INSTEON device category 0x01 dimmable lighting control 2632-422 (France, 869.85 MHz) 0x0B 2632-432 (Germany, 869.85 MHz) 0x0F INSTEON device subcategory 2632-442 (UK, 869.85 MHz)
-
Page 21: Certification And Warranty
3) Hazardous Substance Directive 2005/95/EC Technical data and copies of the original Declaration of Conformity are available and can be obtained from INSTEON; 16542 Millikan Ave, Irvine, CA, USA. User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of INSTEON products. -
Page 22: Certification (Us)
Separate collection and treatment of WEEE will thus decrease CO2 emissions as well. For the above reasons, INSTEON expects end-users to dispose of the material in an environmentally friendly way through separate collection and treatment. - Page 23 Page 23 of 23 Rev: 12/27/2012 12:12 PM...
