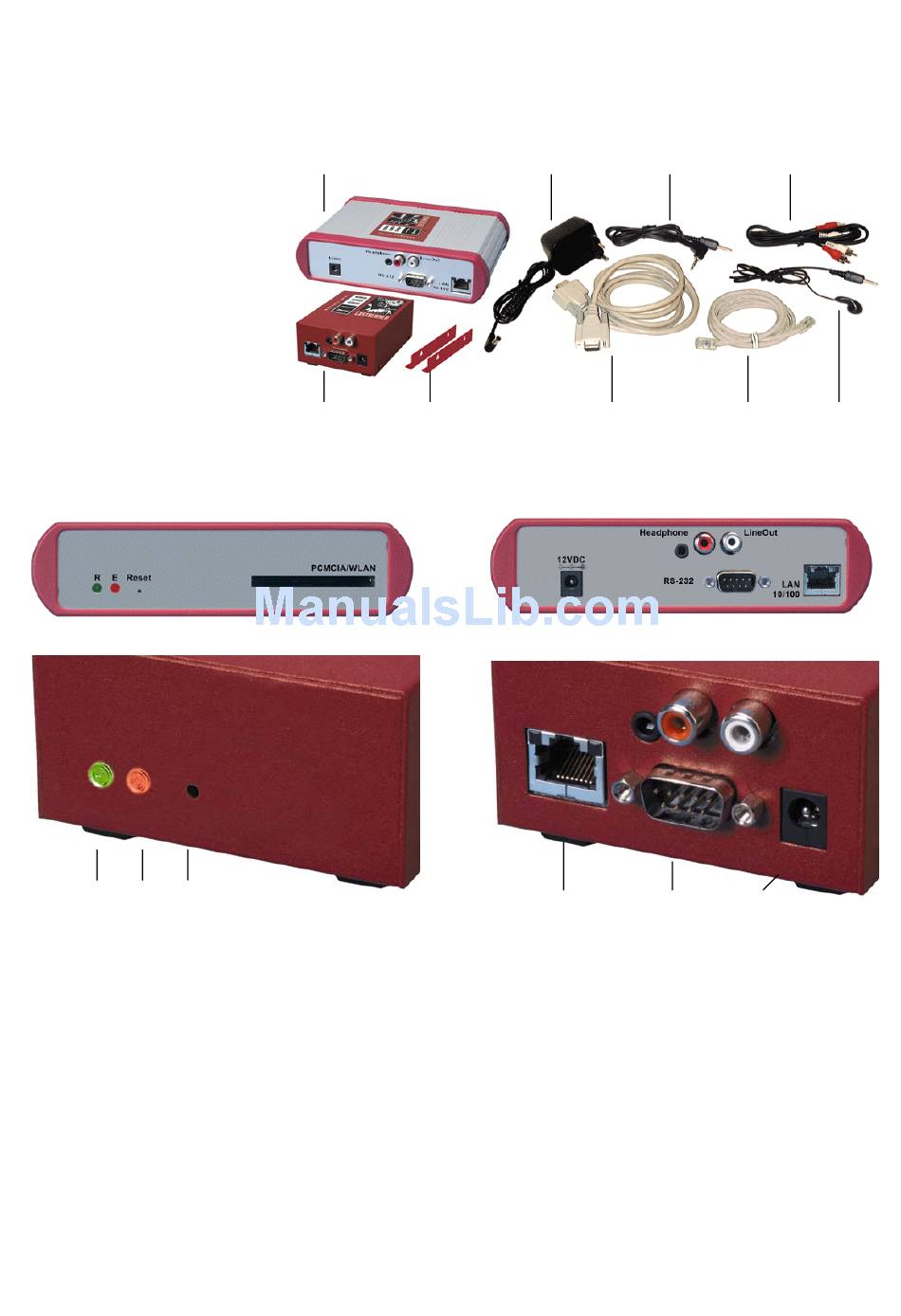

3 Package content

a1 Exstreamer Wireless or
a2 Exstreamer
b Power supply
c 3.5 mm Jack cable
d RCA stereo cable
e Mounting brackets (not included
in Exstreamer wireless)
f Serial cable
g Network cable
h Earphone

4 Getting to know your Exstreamer

1 2 3
1 2 3
1 Green light
A static light shows that the Exstreamer has found the
zServer. If blinking the Exstreamer is streaming.
2 Red light
If the light is blinking, it means that the Exstreamer either
lost connection to or can't find the zServer.
3 Reset button
If you press this button shortly it will reset the Exstreamer.
If you press it until the red light flashes (about 5 seconds)
the device will reset to factory defaults.
4 PC Card slot
16 bit Card slot for Wireless card
a1
a2 e
4
A Headphone out
This port is for headphones or a 3,5mm line out
connection
B Stereo RCA line output
This port is for connection to your home audio equipment
C RJ45 for LAN 10/100 Half/Full duplex
This port is for the connection to your network.
D DSub9 male, Serial port (RS-232)
This port is for a serial connection to your computer
E Power in (center: +12 VDC, ring: Ground)
This port is for connection to the power supply (Only
provided power supply should be used)
