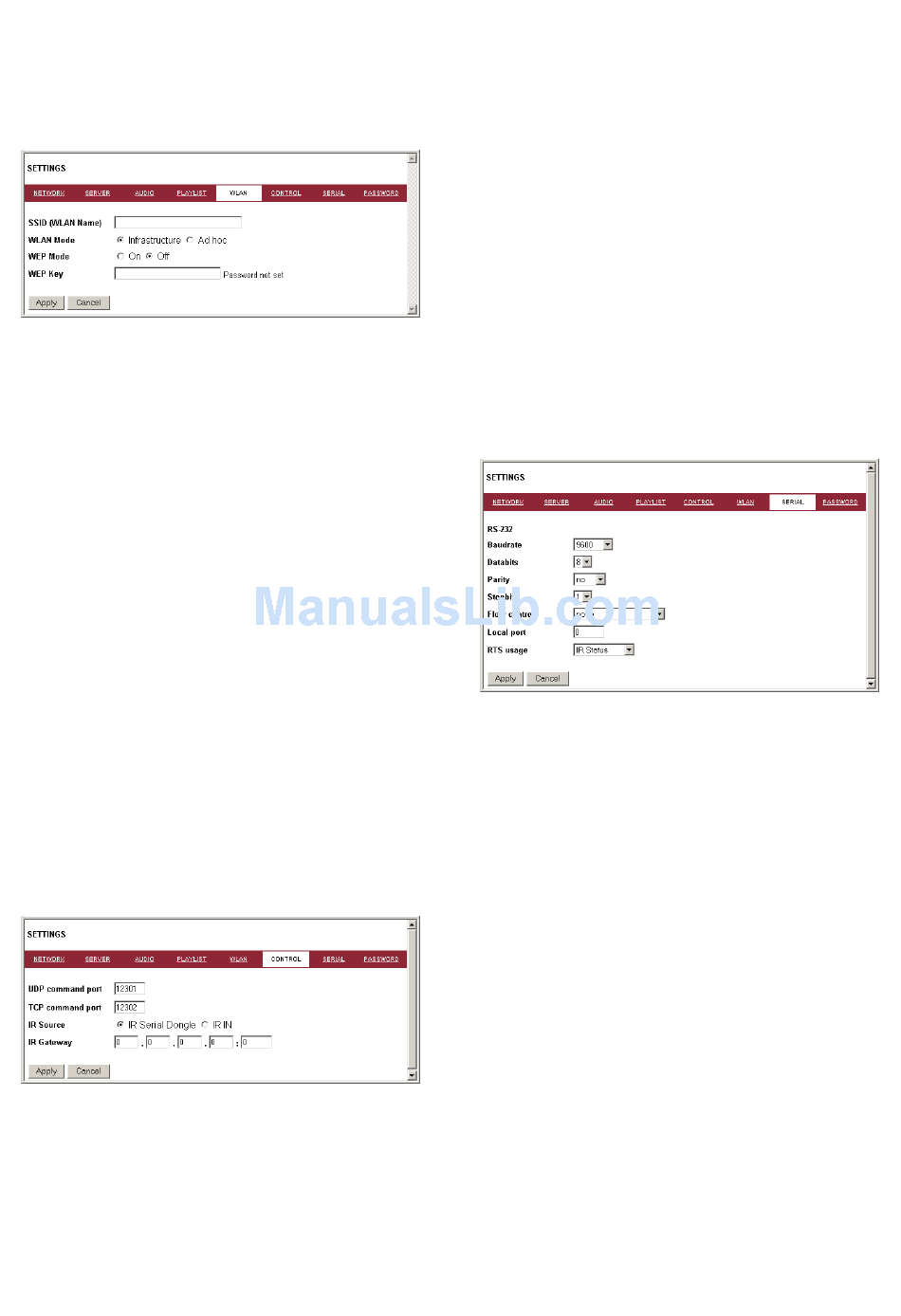

7.7 WLAN settings (Wireless LAN)

This settings adjust the Wireless LAN properties.
SSID (WLAN NAME)
Every wireless network is identified by a given name. Here
you can enter the name of your wireless network that is
indicated by your wireless access point. If you don't enter a
name, then the Exstreamer will log onto the first wireless
network it finds.
WLAN MODE
To communicate with a wireless access point you must
leave this setting on infrastructure mode else to ad hoc
mode.
WEP MODE
This is to encrypt the data that is being wirelessly trans-
mitted to the wireless access point. Set WEP mode to On
for using encryption else set to Off. If you use encryption
make sure to enter a WEP key.
WEP KEY
For 40 bit encryption choose a key with exactly five
alphanumerical or 10 hexadecimal characters. The selected
key has to be the same key as in your access point is
activated. For a 128 bit encryption exactly 13 alpha-
numerical or 26 hexadecimal characters are expected.
To work wireless unplug the network cable and power
cycle the Exstreamer after applying these settings.
.

7.8 Control settings

This settings adjust the control ports, IR source and IR
gateway properties.
UDP command port
Define the port on which the device will receive commands
Default: 12301
via UDP.
TCP command port
Define the port on which the device will receive commands
via TCP. Default: 12302
Exstreamer User Manual Version 1.7
IR Source
Always select "IR Serial Dongle". "IR IN" is non functional.
IR Gateway
When activated all received IR remote control commands
will be transmitted to other Barix devices IR OUT output.
Leaving the IP address at 0.0.0.0 and setting a valid port
(not 0) will broadcast the IR commands in the LAN.
To direct to a specific device set the IP Address of the
Example: 192.168.0.24:12301
device and the port (
To disable the IR Gateway set the IP address to 0.0.0.0 and
the port to 0.

7.9 Serial settings

This settings adjust the serial port, serial gateway and IR
Dongle LED properties.
Baud rate
Select the serial transmission speed (300 to 115200 Baud).
Data bits
Select 7 or 8 data bits.
Parity
Select no, even or odd parity.
Stop bits
Select 1 or 2 stop bits.
Flow control
Select the type of flow control:
none, software (XON/XOFF) or hardware (RTS/CTS).
Local port
Define the port on which the serial port can be accessed
for serial gateway application. Only when Local port is set
to 0 the serial port can be used as a command interface.
RTS function
Select the function of the RTS output pin.
On "IR Status" the LED on the connected IR Dongle will
flash upon reception of an IR Remote Control (default
setting). On "activate AVR" RTS is on during streaming and
60 sec after the last streaming. It can be used to activate an
Audio Video Receiver or Amplifier. On "RTS" it can be
used for flow control as usual or as an additional output.
).
