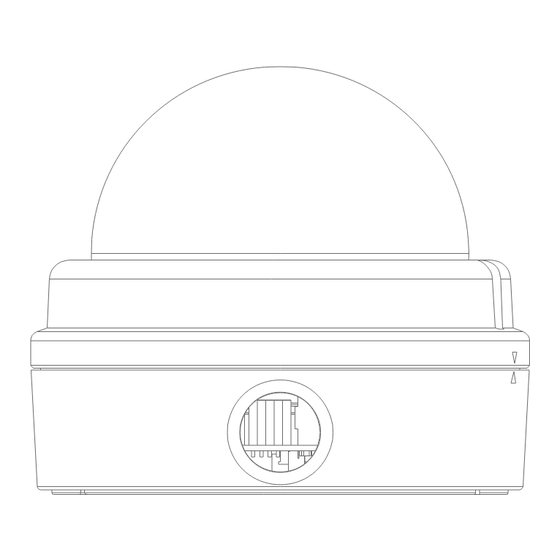

Optica HD Vandal Dome Network Camera
Models: DV104, DV204M
User's Manual
Ver1.5
00P3NX223ZXSEA5

Advertisement

Table of Contents
loading

Related Manuals for Optica DV104, DV204M

Summary of Contents for Optica DV104, DV204M

  • Page 1 Optica HD Vandal Dome Network Camera Models: DV104, DV204M User’s Manual Ver1.5 00P3NX223ZXSEA5...

  • Page 2: Table Of Contents

    Setup Video Resolution ....................1212 Configuration Files Export/ Import .................. 1313 Appendix A: Technical Specifications ..................1414 Appendix B: Delete the Existing Optica Viewer ..............1616 Appendix C: Setup Internet Security ..................1717 Appendix D: Video Resolution ....................1818 DV104 - Quad Streams ....................... 1818 DV104 - Triple Streams ......................

  • Page 3: Overview

    Overview The IP Camera features decent low light performance, high resolution up to 2 Megapixel, various video resolution combination, multiple video compression formats, etc. It also supports true day / night and 3DNR function, which display clear images in low light conditions. Moreover, the proprietary SPQ (Smart Picture Quality) function allows delivering quality images especially under intensive motion and low light conditions.

  • Page 4: Package Contents

    Package Contents Please check the package contains the following items listed below. Camera Package Contents Vandal Proof DC Jack Cable & Power Terminal Block Dome IP Camera Rubber Washers (×6) Security Torx Self Tapping Screws Plastic Screw Anchors (×4) (×4) Quick Guide (bundled software and documentation)

  • Page 5: Dimensions

    Dimensions The IP Dome Camera’s dimensions are shown below. Standard Top View Side View With Sunshield Housing (Accessory) Top View Side View...

  • Page 6: Connectors

    Connectors The diagram below shows the IP Camera’s reset button and various connectors. Definition for each connector will be given as follows. Connector Definition Remarks Restore to factory default Reset Button Analog Video Output GND (Input－) Input＋ Alarm connection Alarm I/O Output－...

  • Page 7: Camera Cabling

    Camera Cabling Please follow the instructions below to complete IP Camera connection. Connect Power Please refer to Section: Connectors. Alternatively, connect the Ethernet cable to the camera’s PoE port and plug the other end of the cable into a PoE switch. NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in use in the network.

  • Page 8: System Requirements

    System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meet system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Intel Core 2 Duo, 2.0 GHz Personal Computer...

  • Page 9: Access Camera

    Access Camera For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Device Search Software Setup Step 1: Double click on the program Device Search.exe. After its window appears, click on the <Device Search>...
  • Page 10 Step 5: Enter User name and Password to access the IP Camera. Installing Optica Viewer Software Online For the initial access to the IP Camera, a client program, Optica Viewer, will be automatically installed to your PC when connecting to the IP Camera.
  • Page 11 The download procedure of Optica Viewer software is specified as follows. Step 1: In the Optica Viewer installation window, click on <Next> to start installation. Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish> to exit the installation process.
  • Page 12 Motorized Lens Model (DV204M) Image and Focus Adjustment The image displays on the Home page when successfully accessing to the IP Camera. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to Full HD Multiple Streams IP Camera Menu Tree for more button function detail.

  • Page 13: Setup Video Resolution

    Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default value of Video Resolution is as below: H.264- 1920 x 1080 (15 fps) + H.264- 1280 x 720 (30 fps) 720P –...

  • Page 14: Configuration Files Export/ Import

    Configuration Files Export/ Import To export/ import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera.

  • Page 15: Appendix A: Technical Specifications

    Appendix A: Technical Specifications Camera DV104 DV204M Image Sensor 1/2.7” Progressive CMOS Effective Pixels 1920(H) x 1080(V) 0.2 lux (Color) Minimum Illumination 0.02 lux (B/W) 0 lux (w/IR) White Balance Manual / AWB/ ATW Shutter Speed 1~ 1/10000 sec. Lens Lens Vari-focal Motorized...
  • Page 16 Mechanical Working distance up to 25 m Built-in IR Wavelength 850 nm Illuminator Number of LEDs LED Indicator Power / Link / ACT Alarm 4 Pin Terminal Block Power 3 Pin Terminal Block Connectors Ethernet RJ-45 Analog Video 1.0 Vp-p / 75 Ω, BNC Audio Line in, Line out General...

  • Page 17: Appendix B: Delete The Existing Optica Viewer

    Appendix B: Delete the Existing Optica Viewer For users who have installed the Optica Viewer in the PC previously, please first remove the existing Optica Viewer from the PC before accessing to the IP Camera. Deleting the Optica Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.

  • Page 18: Appendix C: Setup Internet Security

    Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...

  • Page 19: Appendix D: Video Resolution

    Appendix D: Video Resolution DV104 - Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 352 x 240 (30 fps) 1280 x 1024 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps)
  • Page 20 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (15 fps) 640 x 480 (30 fps) 800 x 600 (30 fps)
  • Page 21 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 1280 x 720 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 1280 x 720 (15 fps) 800 x 600 (30 fps)
  • Page 22 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 640 x 480 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps) 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps)

  • Page 23: Dv104 - Triple Streams

    DV104 - Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (15 fps) 720 x 480 (15 fps) 1280 x 1024 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 1280 x 720 (15 fps) 800 x 600 (15 fps) 1280 x 720 (15 fps)
  • Page 24 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps) 352 x 240 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps)

  • Page 25: Dv104 - Dual Streams

    DV104 - Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 1280 x 1024 (15 fps) 1280 x 720 (30 fps) 1024 x 768 (30 fps) 1920 x 1080 (15 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) √...

  • Page 26: Dv204M - Quad Streams

    DV204M - Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 1280 x 720 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (15 fps) 640 x 480 (30 fps) 800 x 600 (30 fps)
  • Page 27 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 1280 x 720 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps)
  • Page 28 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 720 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps)
  • Page 29 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps) 800 x 600 (30 fps) 352 x 240 (30 fps) 640 x 480 (30 fps)

  • Page 30: Dv204M - Triple Streams

    DV204M - Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (15 fps) 800 x 600 (30 fps) 1280 x 1024 (15 fps) 720 x 480 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 720 (30 fps) 1280 x 720 (15 fps)
  • Page 31 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 1024 (15 fps) 1280 x 720 (15 fps)
  • Page 32 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps)

  • Page 33: Dv204M - Dual Streams

    DV204M - Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 1920 x 1080 (15 fps) √ 1280 x 1024 (30 fps) 1920 x 1080 (15 fps) 1280 x 720 (30 fps) 1024 x 768 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) √...

  • Page 34: Dv204M - Single Stream

    DV204M - Single Stream H.264 Only BNC SUPPORT 1920 x 1080 (30 fps) Low Latency*** 1920 x 1080 (30 fps) √ 1280 x 1024 (30 fps) √ 1280 x 720 (30 fps) √ 1024 x 768 (30 fps) √ 800 x 600 (30 fps) √...
