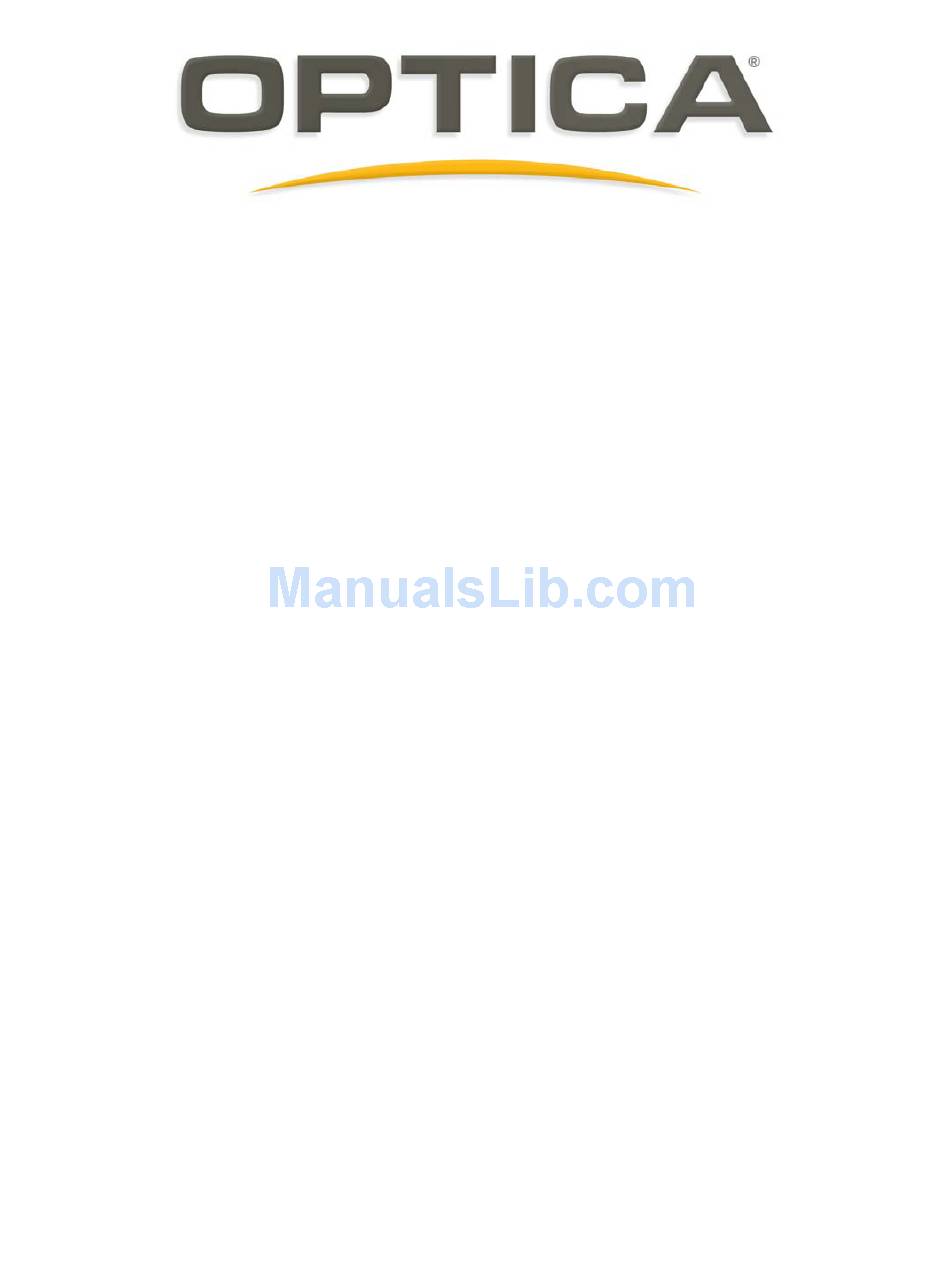

  • Page 1 Optica HD Indoor Dome Network Camera Model: D224M User’s Manual Ver. 1.3...

  • Page 2: Table Of Contents

    Setup Video Resolution ......................12 Configuration Files Export / Import ..................13 Appendix A: Technical Specifications ..................14 Appendix B: Delete the Existing Optica Viewer ................. 16 Appendix C: Setup Internet Security ..................17 Appendix D: Video Resolution ....................18 D224M - Quad Streams ......................

  • Page 3: Overview

    Overview The D224M HD Indoor Dome Network Camera is an easy setup camera with PoE supported to reduce complicate cabling. Up to 1080P Megapixel Resolution is offered for providing high definition images. Quad Streams Compression (H.264 Baseline / Main / High Profile + MJPEG) are supported for efficient bandwidth and storage management.

  • Page 4: Package Contents

    Package Contents Please check the package contains the following items listed below. D224M HD Dome Camera D224M Power Terminal Block HD Dome Camera Self Tapping Screws (x3) Plastic Screw Anchors (x3) Quick Start Guide (bundled software and documentation)

  • Page 5: 1.3 Dimensions

    1.3 Dimensions The dimensions of the IP Camera are shown below. D224M...

  • Page 6: Connectors

    Connectors (Indoor Only) The diagram below shows the IP Camera’s reset button and various connectors. Definition for each connector will be given as follows. Connector Definition Remarks 10/100 Mbps Ethernet / PoE RJ-45 AC 24V: Power-1 DC 12V: Power Power Power AC 24V: GND DC 12V: Reserved...

  • Page 7: Camera Cabling

    Camera Cabling Please follow the instructions below to complete IP Camera connection. Connect Power For power connection, please refer to section Connectors. Alternatively, users can power the camera by PoE. Refer to the section below to connect the Ethernet Cable for PoE connection. NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in used in the network.

  • Page 8: System Requirements

    System Requirements To perform the IP Camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Intel Core 2 Duo, 2.0 GHz Personal Computer...

  • Page 9: Access Camera

    Access Camera For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing Device Search Software Step 1: Double click on the program Device Search.exe. After its window appears, click on the <Device Search>...
  • Page 10 Step 5: Enter Username and Password to access the IP Camera. Installing Optica Viewer Software Online For the initial access to the IP Camera, a client program, Optica Viewer, will be automatically installed to the PC when connecting to the IP Camera.
  • Page 11 The download procedure of Optica Viewer software is specified as follows. Step 1: In the Optica Viewer installation window, click on <Next> to start the installation. Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish> to exit the installation process.
  • Page 12 D224M Live View Image and Focus Adjustment The image will be displayed on the Home page when the IP Camera is successfully accessed. Adjust the zoom and the focus as necessary to produce a clear image. NOTE: Please refer to...

  • Page 13: Setup Video Resolution

    Video Format can be found under this path: Streaming> Video Format. The default value of Video Resolution is as below. H.264- 1920 x 1080 (30 fps) + MJPEG - 640 x 480 (30 fps) D224M For more Video Resolution combination details, please refer to chapter Appendix D: Video...

  • Page 14: Configuration Files Export / Import

    Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera.

  • Page 15: Appendix A: Technical Specifications

    Appendix A: Technical Specifications Camera D224M Image Sensor 1/2.8” Sony Progressive CMOS Effective Pixels 1920 (H) x 1080 (V) Minimum Illumination Shutter Speed 1 ~ 1/10000 sec. Lens Lens Motorized Focal Length 3.0 ~ 9.0 mm F Number F1.2 (Wide) ~ F2.7 (Tele)
  • Page 16 General Operating Temperature -10°C ~ 50°C (14°F ~ 122°F) Humidity 10% ~ 90%, No Condensation Weatherproof Standard Indoor Only Dimension ∅ 117.0 x 90.0 mm (∅ 4.6 x 3.5 in.) Weight 280 g Power Source DC 12V / AC 24V / PoE System 3.8 W Power...

  • Page 17: Appendix B: Delete The Existing Optica Viewer

    Appendix B: Delete the Existing Optica Viewer For users who have installed the Optica Viewer in the PC previously, please remove the existing Optica Viewer from the PC before accessing to the IP Camera. Deleting the Optica Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.

  • Page 18: Appendix C: Setup Internet Security

    Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...

  • Page 19: Appendix D: Video Resolution

    Appendix D: Video Resolution D224M – Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 1280 x 720 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps)
  • Page 20 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 1280 x 720 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps)
  • Page 21 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 720 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps)
  • Page 22 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps) 800 x 600 (30 fps) 352 x 240 (30 fps) 640 x 480 (30 fps)

  • Page 23: D224M - Triple Streams

    D224M - Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (15 fps) 800 x 600 (30 fps) 1280 x 1024 (15 fps) 720 x 480 (30 fps) 640 x 480 (30 fps)
  • Page 24 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 1024 (15 fps) 1280 x 720 (15 fps)
  • Page 25 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps)

  • Page 26: D224M - Dual Streams

    D224M - Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 1920 x 1080 (15 fps) √ 1280 x 1024 (30 fps) 1920 x 1080 (15 fps) 1280 x 720 (30 fps) 1024 x 768 (30 fps)

  • Page 27: D224M - Single Stream

    D224M - Single Stream H.264 Only BNC SUPPORT 1920 x 1080 (30 fps) √ 1280 x 1024 (30 fps) √ 1280 x 720 (30 fps) √ 1024 x 768 (30 fps) √ 800 x 600 (30 fps) √ 720 x 480 (30 fps) √...
